FM200 Pipe Network Fire Suppression System

Product Overview

The FM200 Pipe Network Fire Suppression System is a clean agent fire protection solution widely used in commercial and industrial applications. Using HFC-227ea (FM200) as the extinguishing agent, the system distributes fire suppression through a centralized cylinder bank and pipe network.

It is ideal for protecting data centers, commercial buildings, power facilities, and critical assets. With features such as fast discharge (≤10 seconds), no residue, non-conductivity, and automatic control, it minimizes downtime and protects valuable equipment, making it one of the most cost-effective fire suppression systems for commercial projects.

Key Commercial Advantages

• Cost-Effective for Large Projects:A single system can protect multiple areas, reducing equipment investment and installation costs.


• Fast Response to Minimize Loss:≤ 10 seconds of spraying, reducing the risk of equipment damage and business interruption


• No Residue – Safe for Equipment:After extinguishing the fire, there is no need for cleaning, thus avoiding secondary losses.


• Flexible Control Modes:Support automatic, electrical manual and mechanical emergency start-up


• OEM & Custom Solutions Available:Support for bottle group configuration, pressure rating, and system design customization

Working Principle

When a fire occurs, detectors send signals to the control panel:

1. Audible and visual alarms activate
2. Time delay allows personnel evacuation
3. Solenoid valve opens
4. Driving gas activates the system
5. Cylinder and selector valves open
6. FM200 agent flows through piping
7. Nozzles discharge agent into hazard area

The system quickly achieves total flooding fire suppression.

Applications

Widely used in commercial and industrial sectors:

• Data Centers / Server Rooms
• Office Buildings
• Banks & Financial Institutions
• Telecom Facilities
• Power Distribution Rooms
• Medical Equipment Rooms
• Museums & Libraries
• Industrial Facilities

Technical Specifications

System Components

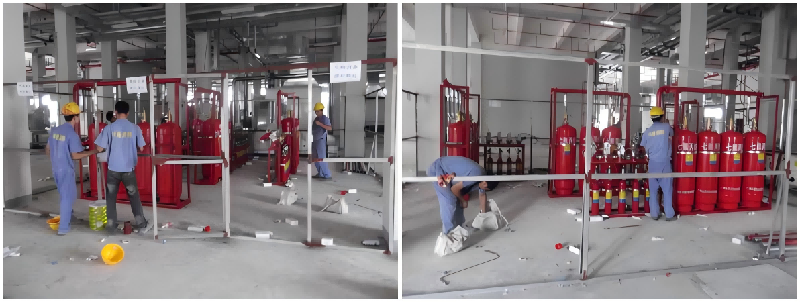

• FM200 Cylinder Bank
• Driving Gas Cylinders
• Cylinder Valves
• Selector Valves (for multi-zone control)
• Pipe Network System
• Discharge Nozzles
• Fire Detection & Control System

Why Choose Us

• 15+ years manufacturing experience
• OEM / ODM service available
• Complete system solution provider
• Professional engineering support
• Fast delivery & global export experience

Request a Quote

We provide:

• System design support
• Configuration recommendations
• Competitive pricing
• Technical documentation
