Product Introduction:
Heptafluoropropane fire extinguishing products are highly mature fire extinguishing products in the gas fire protection market. They have stable fire extinguishing performance and can quickly put out Class A, B, C, E fires and electrical fires. They are especially effective in protecting electronic circuit equipment, precious metal items, cultural relics and archival materials. The evaporation of heptafluoropropane in the atmosphere will not cause pollution to equipment and the environment and will not damage the ozone layer.

Name of fire extinguishing agent	Heptafluoropropane
Chemical composition	CF3CHFCF3
Conveying method	Prefabricated		Pipe network type

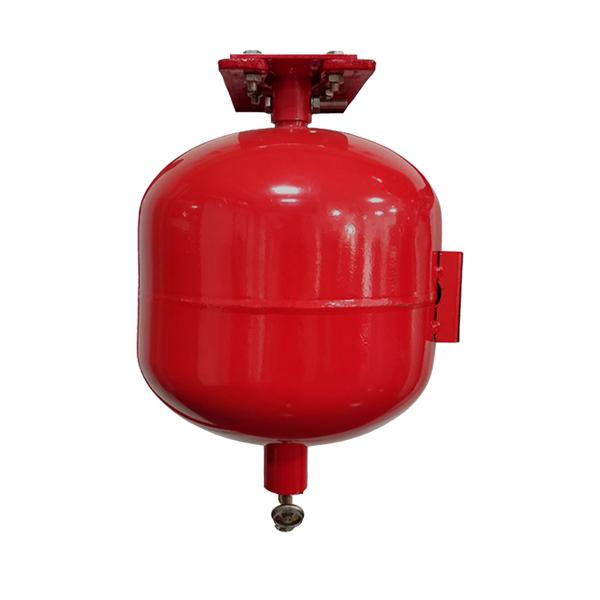

Assembly method	Cabinet type	Suspended type	Internal storage pressure	External storage pressure
Product display
Construction method	Flexible to install and takes up little space		Independent gas cylinder room
Pharmaceutical storage pressure	2.5/1.6MPa		4.2/5.6MPa	0.3MPa
Danger of handling/long-term storage	The risk of handling and long-term storage is relatively low, and the safety factor of storage detection is relatively high
Design selectivity	Small area, low construction difficulty and movable		Large area, multiple protective zones, conveying distance 30-80 meters	Large area, multiple protection zones, and conveying distance up to 200 meters
Dosage of medicine	For a single area		It is used for combined distribution and in relatively small quantities
Advantages	Takes up little space, is easy to install, has low construction costs and good fire extinguishing effects		Multiple protection zones share the same agent, with low cost and good fire extinguishing effect
Application	Computer rooms, distribution rooms, archives rooms, financial institutions, government units, oil depots, etc

Structural Features:
This cabinet-type fire extinguishing system integrates an extinguishing agent storage container assembly, high-pressure hose, nozzle, and electromagnetic drive device. Connected to an automatic fire alarm controller, it enables automatic detection and extinguishing of fires. Because the extinguishing agent storage cylinders are housed within the cabinet, different volumes of single cylinders can be used to protect small protected areas of varying sizes, reducing the floor space required. The multi-hole nozzles ensure rapid and even filling of the entire protected area with the extinguishing agent. Similar to suspended fire extinguishing systems, it features simple installation and low project investment.

Performance parameters of cabinet-type HFC-227ea fire extinguishing device:

Working Principle:
The cabinet-type heptafluoropropane fire extinguishing device produced by our company uses an electromagnetic valve as the driving device, ensuring reliable start-up performance. When the fire detector receives a fire alarm signal from the protected area, the alarm controller outputs a DC24V 1.5A voltage, causing the electromagnetic valve to activate and open the extinguishing agent storage cylinder valve. The heptafluoropropane extinguishing agent is then sprayed into the protected area through the connecting hose and nozzle to extinguish the fire.


Packaging and transportation :
Packaging:
The Cabinet-type fire extinguishing will be carefully packaged to ensure safe delivery and handling. The packaging will include the following materials: heavy-duty cardboard boxes, foam packaging, protective foam, and instructions

Transportation:
We offer global shipping for our Cabinet-type fire extinguishing. The following transportation methods are available for selection:
All goods will be sent using reliable and trustworthy express delivery services to ensure timely and safe delivery. Once their order is dispatched, the customer will receive a tracking number via email.

Special handling instructions:
If your goods have any special handling instructions, please contact us at least 24 hours before your order is dispatched. We will do our best to meet your requirements.
