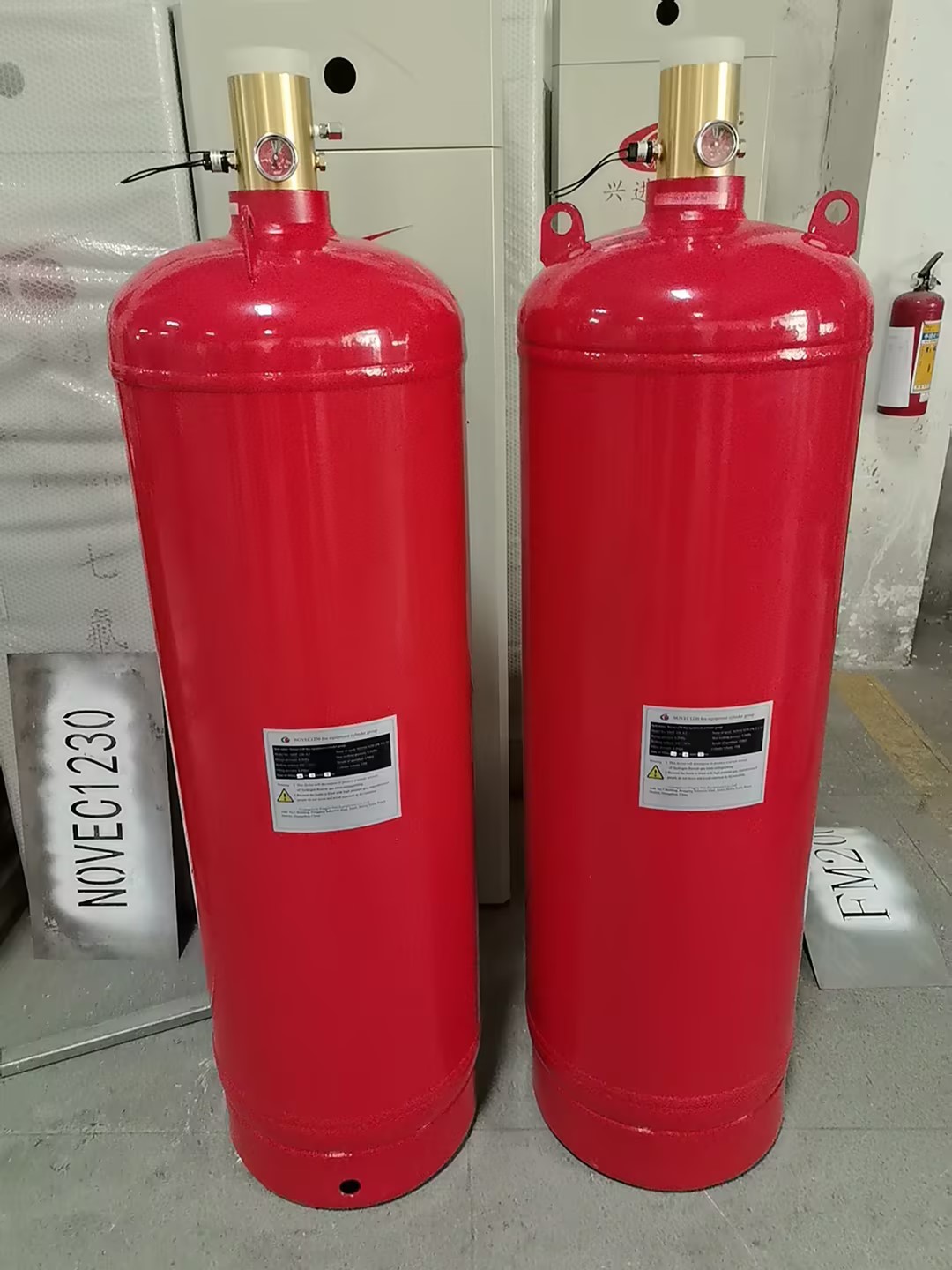

High Pressure Novec1230 Storage Cylinder for Automatic Fire Suppression System with Steel Construction
High Pressure Novec1230 Storage Cylinder for Automatic Fire Suppression System with Steel Construction
High Pressure Novec1230 Storage Cylinder for Automatic Fire Suppression System with Steel Construction
High Pressure Novec1230 Storage Cylinder for Automatic Fire Suppression System with Steel Construction
High Pressure Novec1230 Storage Cylinder for Automatic Fire Suppression System with Steel Construction
High Pressure Novec1230 Storage Cylinder for Automatic Fire Suppression System with Steel Construction
High Pressure Novec1230 Storage Cylinder for Automatic Fire Suppression System with Steel Construction
High Pressure Novec1230 Storage Cylinder for Automatic Fire Suppression System with Steel Construction
Specifications
Certification :
CCC,ROHS,CAC
Min working pressure :
4.2Mpa/4.6Mpa
Model Number :
QMP40/4.2, QMP70/4.2, QMP100/4.2, ......
Working pressure :
5.3Mpa/8.0Mpa
MOQ :
1 set system
Delivery Time :
15-20days
Storage temperature :
-20°C to +60°C
Payment Terms :
T/T,L/C
Price :
Pricing based on quantity
Supply Ability :
30000 sets per month
Brand Name :
Guangzhou Xingjin Fire Equipment Co.,Ltd.
Filling density :
≤950kg/m3,≤1080kg/m3
Packaging Details :
Plywood outer box with bubble bag or paper
Place of Origin :
Guangzhou, Guangdong, China
Discharge time :
≤10s
Description

Novec1230 (FK-5-1-12) Agent Cylinders – For Data Centers & IT Infrastructure

Novec1230 (FK-5-1-12) agent cylinders are the core storage units for fire suppression systems protecting data centers, server rooms, and IT infrastructure. Manufactured from high-strength chromoly steel, these cylinders are available in 25bar to 42bar working pressures and operate reliably across a -20°C to +60°C temperature range, ensuring agent release when it matters most to maintain business continuity.
High Pressure Novec1230 Storage Cylinder for Automatic Fire Suppression System with Steel ConstructionHigh Pressure Novec1230 Storage Cylinder for Automatic Fire Suppression System with Steel Construction

Typical Applications

  • Third-party data centers and enterprise server rooms

  • Telecom core network rooms and base stations

  • Cloud computing and edge computing nodes

  • Financial trading system rooms

  • Government and public sector IT centers

Key Advantages

  • Fast Response – Valve opening time < 0.3 seconds, ensuring full agent discharge within 10 seconds

  • High Reliability – Each cylinder tested at 1.5x working pressure and helium mass spectrometry leak tested to <1×10⁻⁶ mbar·L/s

  • Wide Temperature Range – -20°C to +60°C storage temperature, suitable for various server room environments

  • Low Maintenance – 30-year design life with inspection every 5-6 years

  • Broad Compatibility – Compatible with major cylinder valves, selector valves, and control systems

Technical Specifications



Parameter 25bar System 42bar System
Filling Pressure (20°C) 25bar 42bar
Max Working Pressure (50°C) 35bar 60bar
Capacity Options 40L / 70L / 100L / 120L / 150L / 180L 70L / 90L / 120L
Valve Connection M80×2 / M90×2 M80×2 / M90×2
Material Chromoly Steel 37Mn / 30CrMo Chromoly Steel 37Mn / 30CrMo
Applicable Standards NFPA 2001, ISO 14520, GB 25972 NFPA 2001, ISO 14520, GB 25972
