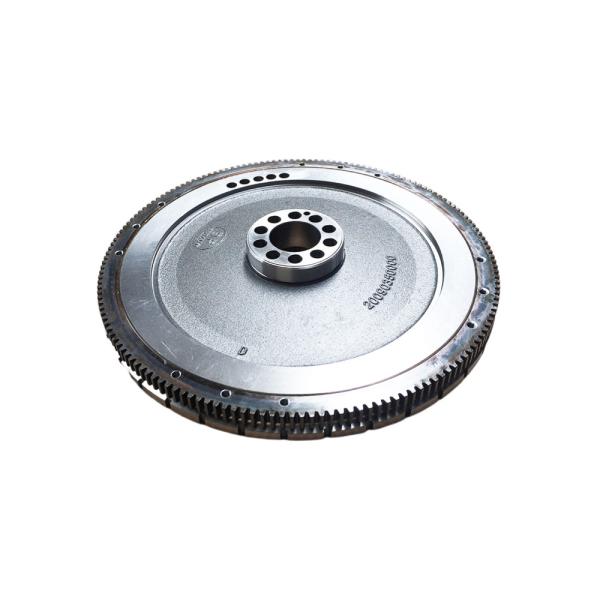

Mercedes Benz Heavy Truck Flywheel Assembly 160 Teeth 010.050 5410300105

Specifications

Model Number :

Mercedes-Benz/heavy truck flywheel/160 teeth cast iron flywheel

Certifiion :

IATF 16949

Place of Origin :

China

MOQ :

Negotiation

Price :

Negotiation

Packaging Details :

Standard Packaging

Payment Terms :

L/C,T/T,etc.

OE No. :

010.050/5410300105

Model :

Benz/Mercedes-Benz/heavy truck flywheel/160 teeth cast iron flywheel

Height :

Material :

cast iron

Teeth :

160

Outer Diameter :

487

Description

Description

Please click to view Flywheel alog!.pdf

1. The flywheel product is made of standard HT250 material, the hardness of the matrix reaches 170-200HB, the ring gear part is made of standard 45# alloy steel, and the high-frequency quenching process is adopted. The hardness of the teeth can reach 48-58HRC, which makes the product more heat-resistant and wear-resistant. more durable.

2. Our company uses fully automatic CNC machine tools, machining centers, and dynamic balancing equipment in the processing process to ensure that the processing accuracy of the product is better, and it can reach the dimensional accuracy of the original car factory, so that the sound of the product is smaller and more stable when it is used. .

3. The inspection adopts 3-D Measuring/Metallurgical Micro-test/Hardness test/Tension test and other equipment to ensure that there will be no defective products in the factory.

4. Export products are made of high-strength five-layer A-grade cartons, painted with anti-rust oil on the outside, and covered with anti-rust sealed bags to ensure that the products will not be rusted due to transportation problems.

Details

Teeth	160
For Coupling Size(mm)	420
Clutch Holes&Size (mm)	10-Φ17
Outer Diameter	487
Inner Diameter(mm)	62
Height	70
Pitch Cride (mm)	88
Clutch Pitch Cride(mm)	450

FAQ

1. What is a car flywheel?
A car flywheel is a mechanical device used to store rotational energy and transmit power from the engine to the transmission.

2. What is the purpose of a car flywheel?
The primary purpose of a car flywheel is to smooth out the power delivery from the engine and provide rotational inertia to keep the engine running smoothly.

Crafts

Machining
