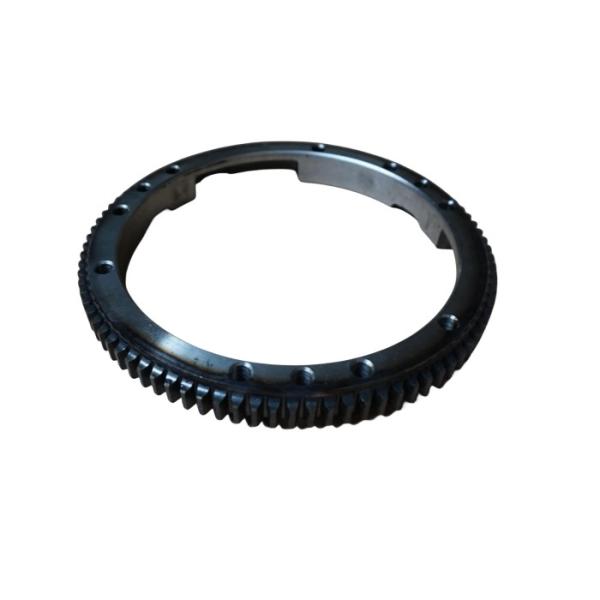

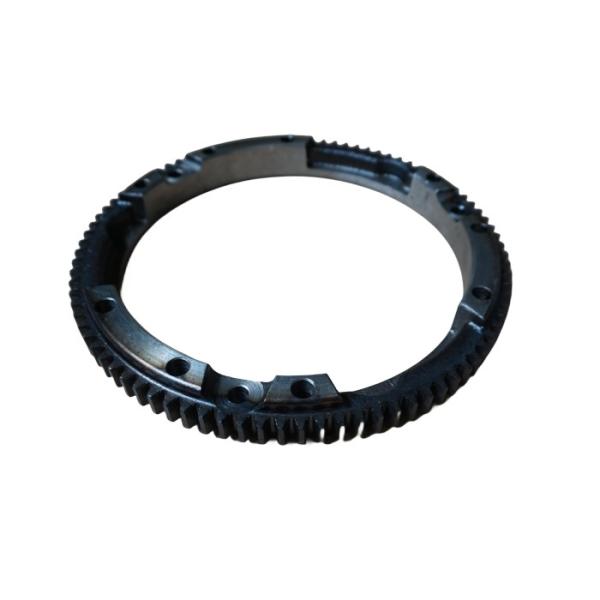

DAEWOO Damas Flywheel Ring Gear 12620A80D01 90 Tooth 48 - 58HRC Hardness
DAEWOO Damas Flywheel Ring Gear 12620A80D01 90 Tooth 48 - 58HRC Hardness
DAEWOO Damas Flywheel Ring Gear 12620A80D01 90 Tooth 48 - 58HRC Hardness
DAEWOO Damas Flywheel Ring Gear 12620A80D01 90 Tooth 48 - 58HRC Hardness
Specifications
Model Number :
DAEWOO Damas 90 Teeth
Certifiion :
IATF 16949
Place of Origin :
China
MOQ :
Negotiation
Price :
Negotiation
Packaging Details :
Standard Packaging
Payment Terms :
L/C,T/T,etc.
Name :
RING GEAR
OE No. :
12620A80D01
Model :
DAEWOO Damas 90 Teeth
Teeth :
90
Height :
24.5mm
Outer Diameter :
231.2mm
Crafts :
Normalising, Turning, Hobbing, Quenching, Tempering
Description

Description

Please click to view RING GEAR alog!.xlsx

1. The ring gear part is made of standard 45# alloy steel, adopts high-frequency quenching process, and the hardness of the tooth part can reach 48-58HRC, which makes the product more heat-resistant, wear-resistant and durable.

2. Our company uses fully automatic CNC machine tools, machining centers, quenching machines and other equipment in the processing process to ensure better processing accuracy of the products, which can reach the dimensional accuracy of the original parts of the automobile factory, so that the sound of the products is smaller and more Stablize.

3. The inspection adopts 3-D Measuring/Metallurgical Micro-test/Hardness test/Tension test and other equipment to ensure that there will be no defective products in the factory.

4. Export products are made of high-strength five-layer A-grade cartons, painted with anti-rust oil on the outside, and covered with anti-rust sealed bags to ensure that the products will not be rusted due to transportation problems.

Advantage

Enhanced Starting Reliability: The reliable engagement between the ring gear and starter motor ensures consistent engine starting, even in challenging conditions.

Improves Safety: A properly functioning ring gear contributes to safe vehicle operation by ensuring reliable engine starting.

Details

Size mm
Teeth 90
Outer Diameter 231.2
Inner Diameter (mm) 187.1
Height 24.5

Crafts

Normalising

DAEWOO Damas Flywheel Ring Gear 12620A80D01 90 Tooth 48 - 58HRC Hardness

Turning

DAEWOO Damas Flywheel Ring Gear 12620A80D01 90 Tooth 48 - 58HRC Hardness

Hobbing

DAEWOO Damas Flywheel Ring Gear 12620A80D01 90 Tooth 48 - 58HRC Hardness

Quenching

DAEWOO Damas Flywheel Ring Gear 12620A80D01 90 Tooth 48 - 58HRC Hardness

Tempering

DAEWOO Damas Flywheel Ring Gear 12620A80D01 90 Tooth 48 - 58HRC Hardness

Inspection

Tension Test

DAEWOO Damas Flywheel Ring Gear 12620A80D01 90 Tooth 48 - 58HRC HardnessDAEWOO Damas Flywheel Ring Gear 12620A80D01 90 Tooth 48 - 58HRC Hardness

Metallurgical Micro-Test

DAEWOO Damas Flywheel Ring Gear 12620A80D01 90 Tooth 48 - 58HRC HardnessDAEWOO Damas Flywheel Ring Gear 12620A80D01 90 Tooth 48 - 58HRC Hardness

Hardness Test

DAEWOO Damas Flywheel Ring Gear 12620A80D01 90 Tooth 48 - 58HRC HardnessDAEWOO Damas Flywheel Ring Gear 12620A80D01 90 Tooth 48 - 58HRC Hardness

3D Measuring

DAEWOO Damas Flywheel Ring Gear 12620A80D01 90 Tooth 48 - 58HRC HardnessDAEWOO Damas Flywheel Ring Gear 12620A80D01 90 Tooth 48 - 58HRC Hardness
