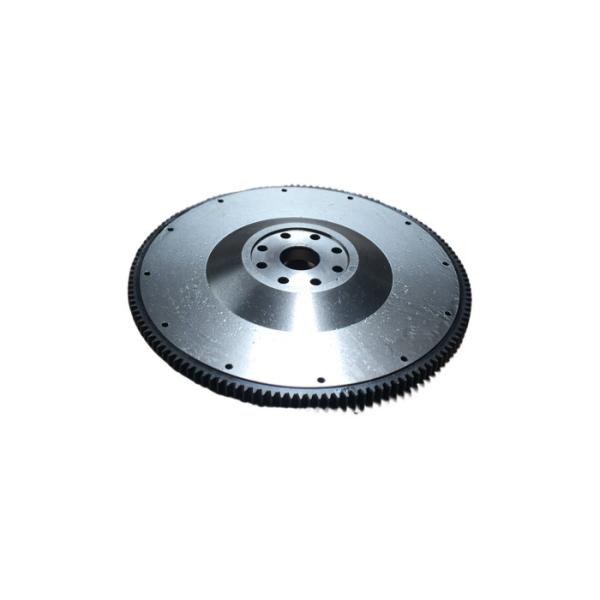

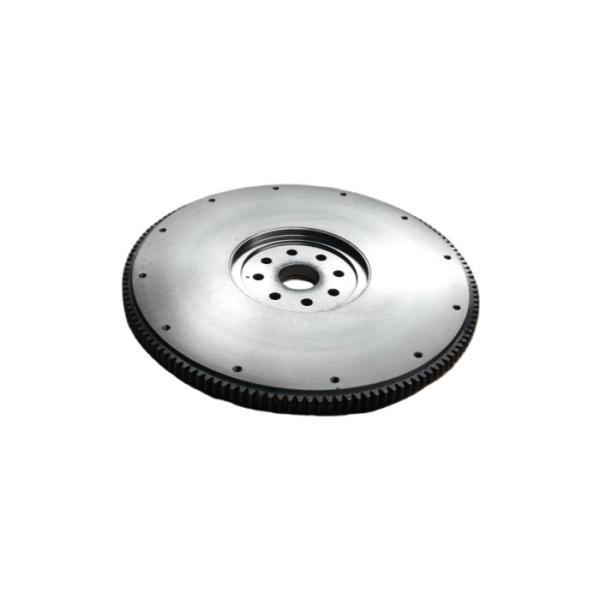

138 Teeth Truck Flywheel Navistar 1810855C93 With 8 Clutch Holes

Specifications

Model Number :

Nvaistar/1810855C93/138 teeth

Certifiion :

IATF 16949

Place of Origin :

China

MOQ :

Negotiation

Price :

Negotiation

Packaging Details :

Standard Packaging

Payment Terms :

L/C,T/T,etc.

OE No. :

1810855C93

Model :

Nvaistar/1810855C93/138 teeth

Height :

Material :

cast iron

Teeth :

138

Outer Diameter :

443.8

Description

Nvaistar/1810855C93/138 teeth/cast iron flywheel/truck flywheel/commercial vehicle flywheel/engineering vehicle flywheel

Description

Please click to view Flywheel alog!.pdf

1. The flywheel product is made of standard HT250 material, the hardness of the matrix reaches 170-200HB, the ring gear part is made of standard 45# alloy steel, and the high-frequency quenching process is adopted. The hardness of the teeth can reach 48-58HRC, which makes the product more heat-resistant and wear-resistant. more durable.

2. Our company uses fully automatic CNC machine tools, machining centers, and dynamic balancing equipment in the processing process to ensure that the processing accuracy of the product is better, and it can reach the dimensional accuracy of the original car factory, so that the sound of the product is smaller and more stable when it is used. .

3. The inspection adopts 3-D Measuring/Metallurgical Micro-test/Hardness test/Tension test and other equipment to ensure that there will be no defective products in the factory.

4. Export products are made of high-strength five-layer A-grade cartons, painted with anti-rust oil on the outside, and covered with anti-rust sealed bags to ensure that the products will not be rusted due to transportation problems.

Advantages

Heat Dissipation: The flywheel's design allows for effective heat dissipation, preventing overheating of the engine.
Reduced Noise: By minimizing engine vibrations, the flywheel contributes to reduced noise levels in the truck cabin.
Engine Protection: The flywheel absorbs torsional shocks, protecting the engine from excessive stress and potential damage.

Details

Teeth	138
For Coupling Size(mm)	370
Clutch Holes&Size (mm)	8*14mm
Outer Diameter	443.8
Inner Diameter(mm)	52
Height	43
Pitch Cride (mm)	104.6
Clutch Pitch Cride(mm)	393.6

Crafts

Machining
