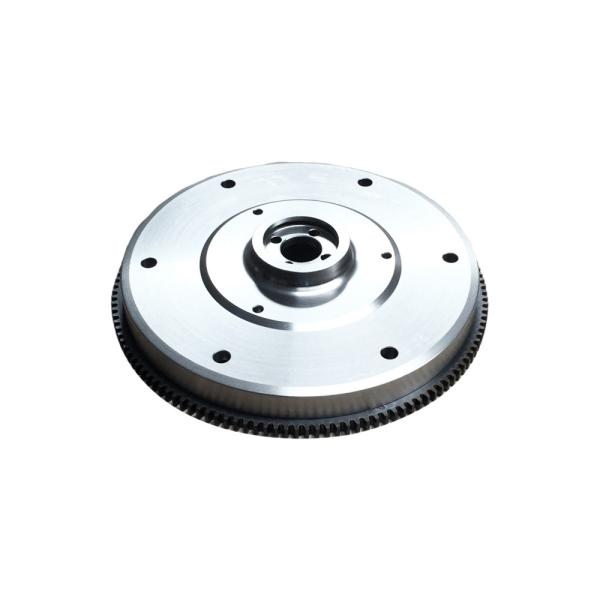

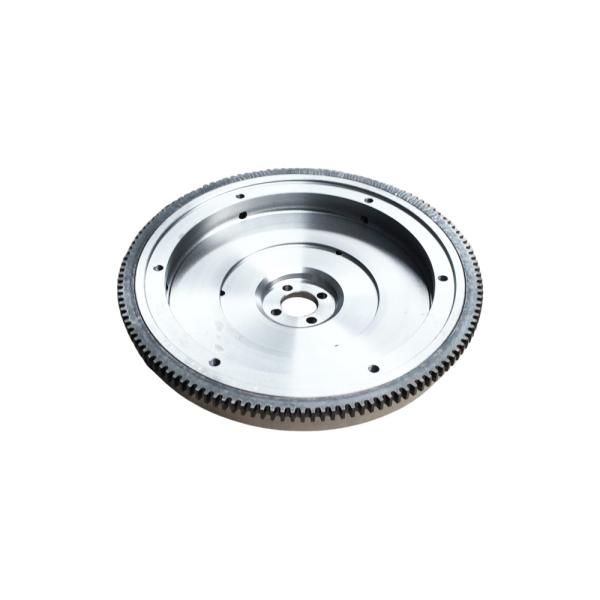

Volkswagen VW Beetle Cast Iron Flywheel 130 Teeth 311105273A 043105271C

Specifications

Certifiion :

IATF 16949

Place of Origin :

China

Model Number :

VOLKSWAGEN/VW Beetle 130 Teeth

MOQ :

Negotiation

Price :

Negotiation

Packaging Details :

Standard Packaging

Payment Terms :

L/C,T/T,etc.

OE No. :

311105273A/043105271C

Model :

VOLKSWAGEN/VW Beetle 130 Teeth

Material :

Cast Iron

Height :

Outer Diameter :

276mm

Inner Diameter :

29mm

Description

Description

Please click to view Flywheel alog!.pdf

The flywheel products are made of standard HT250 material, with a matrix hardness of 170-200HB. The ring gear part is made of standard 45# alloy steel and adopts high-frequency quenching process. The tooth part hardness can reach 48-58HRC, making the product more heat-resistant, wear-resistant, and durable.

Our company uses fully automatic CNC machine tools, machining centers, and dynamic balancing equipment in the processing process to ensure better machining accuracy of the product, which can achieve the dimensional accuracy of automotive OEM parts, making the product quieter and more stable during use.

Inspection is carried out using equipment such as three-coordinate (3-D Measuring)/ metallurgical micro-test/ hardness tester/ tensile testing machine to ensure that the products leaving the factory will not have defective products.

For export products, high-strength five-layer A-level cartons are used with rust-proof oil applied on the outside and rust-proof sealed bags covered outside to ensure that the products will not rust due to transportation issues.

Principle

The cast iron material used in the flywheel provides excellent resistance against wear, corrosion, and deformation.
It can handle high thermal loads without warping or compromising its structural integrity.
The cast iron flywheel plays a vital role in the overall performance, stability, and smooth operation of the engine and drivetrain system.

Details

Teeth	130
For Coupling Size(mm)	175
Clutch Holes&Size (mm)	4*8mm
Outer Diameter (mm)	276
Inner Diameter (mm)	29
Height	52
Pitch Cride (mm)	41
Clutch Pitch Cride (mm)	218

Crafts

Machining
