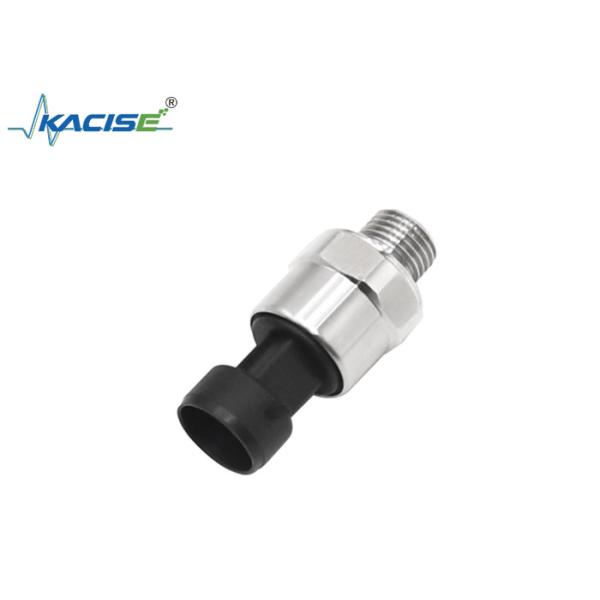

KAW100 All-in-One Precise Measurement Automotive Pressure Sensor with 316L Diaphragm and Multiple Process Connections
KAW100 All-in-One Precise Measurement Automotive Pressure Sensor with 316L Diaphragm and Multiple Process Connections
KAW100 All-in-One Precise Measurement Automotive Pressure Sensor with 316L Diaphragm and Multiple Process Connections
KAW100 All-in-One Precise Measurement Automotive Pressure Sensor with 316L Diaphragm and Multiple Process Connections
Specifications
Brand Name :
KACISE
Model Number :
KAW100
Certification :
CE
Place of Origin :
CHINA
MOQ :
1PCS
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
1000 Piece/Pieces per Week negotiable
Delivery Time :
5-8 work days
Packaging Details :
each unit has individual box and all boxes are packed in standard packages or customers requests available
Supply current :
15mA MAX
Pressure range :
0~5Bar、0~10Bar、0~20Bar、0~40Bar、(Cutomized)
Power Supply :
4.75~5.25VDC(( With reverse polarity protecticion overvoltage protection 32V DC
Output :
0.5V~4.5V DC,(10%-90%VCC)
Process Connection :
G1/4，7/16-UNFfemale,(cusomized)
Electrical connector :
Pack
Description
KAW100 All-in-One Precise Measurement Automotive Pressure Sensor
Introduction

The KAW100 All-in-One Precise Measurement Automotive Pressure Sensor is specifically designed for a wide range of automotive applications, including vehicles, transmissions, air-conditioning systems, and oil pressure measurements.

Product Applications

This sensor features a fully welded 316L diaphragm and is filled with diffusible silicon oil. It doesn't require any O-ring seals that could contact the pressure medium, making it compatible with all types of liquids. The absence of moving parts ensures a longer service life.

It offers multiple process connection options, facilitating easy installation. With a typical accuracy of 1%, it provides excellent precision for critical applications. Factory-calibrated, there's no need for on-site calibration. It has plug-and-play reliability, and its rugged and compact design saves installation space. Additionally, OEM/ODM services are available to meet special requirements.

Product Description
Model KAW100
Power Supply 4.75~5.25VDC (With reverse polarity protection overvoltage protection 32V DC)
Supply current 15mA MAX
Pressure range 0~5Bar, 0~10Bar, 0~20Bar, 0~40Bar (Customized)
Output 0.5V~4.5V DC (10%-90%VCC)
Process Connection G1/4, 7/16-UNFfemale (customized)
Electrical connector Pack
Working Temperature -40℃~130℃
Storage Temperature -50℃~135℃
Safe Pressure 1.5~2 time of the pressure range
Burst Pressure 100Bar G
Accuracy +1%F.S( Linearity,Hysteresis, Repeatability, Calibration)
Total Error Band Static error band @25℃,5VDC,+3%(-30℃~125℃)
Medium Engine oil, POE oil, refrigerant, gas, water or liquid
Material Housing 304 SST; wetted parts 316L
Mounting Torque 10~20N·m
Anti-freeze function The sensor has no anti-freezing function when the sensor's working medium is water.
