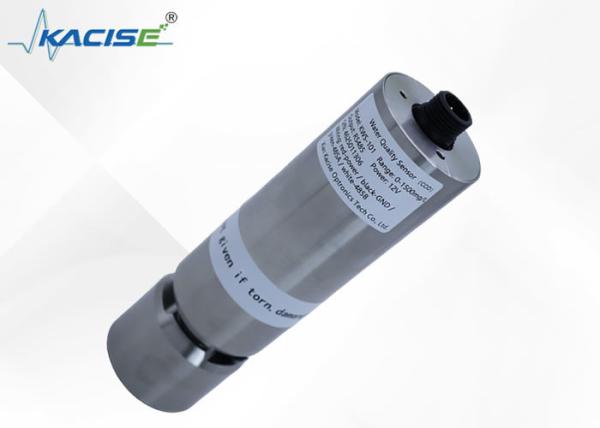

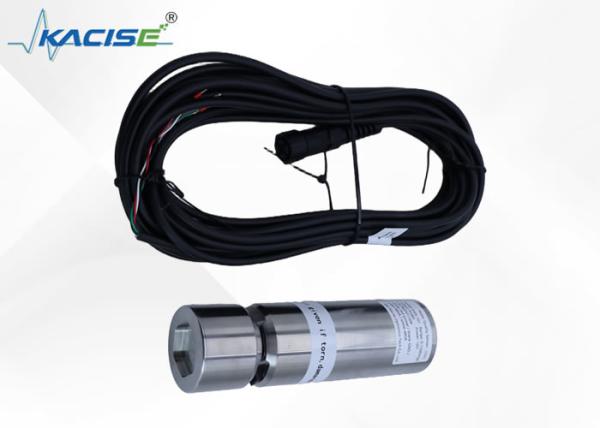

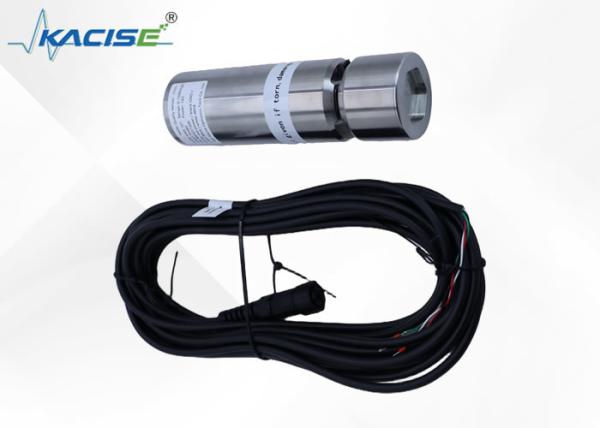

KWS101 Eco - efficient Water Quality Monitor
KWS101 Eco - efficient Water Quality Monitor
KWS101 Eco - efficient Water Quality Monitor
KWS101 Eco - efficient Water Quality Monitor
KWS101 Eco - efficient Water Quality Monitor
KWS101 Eco - efficient Water Quality Monitor
Specifications
Brand Name :
KACISE
Model Number :
KWS-101
Place of Origin :
CHINA
MOQ :
1PCS
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
1000 Piece/Pieces per Week negotiable
Delivery Time :
5-8 work days
Packaging Details :
each unit has individual box and all boxes are packed in standard packages or customers requests available
COD Resolution :
0.01mg/L
COD Accuracy :
±5%
IP Rating :
IP68
Output :
RS485, Modbus
Sensor Dimensions :
Φ50mm * 179mm
Max. Pressure :
3 bar
Description

KWS101 Eco - efficient Water Quality Monitor

1.Instruction

KACISE KWS101 Eco - efficient Water Quality Monitor is designed for sustainable and effective water quality assessment. It operates without reagents, making it pollution - free and cost - effective. This monitor can measure multiple parameters including COD, TOC, turbidity, and temperature. With a built - in turbidity compensation system, it ensures accurate results. Its self - cleaning brush extends the maintenance cycle. With IP68 rating and stable performance in the 0 - 50℃ range, it provides long - term, eco - friendly water quality monitoring.

2.Features

Digital sensor, digital RS-485 output, Modbus protocol;

Can measure parameters such as COD, TOC, turbidity and temperature;

Automatically compensate for turbidity interference and have excellent test performance;

With self-cleaning brush to prevent biological attachment and longer maintenance cycle;

Built-in calibration parameters for easy on-site use and secondary calibration.

3.Technical Specifications

Model KWS-100 KWS-101
COD Range 0-500mg/L 0-1500mg/L
COD Accuracy ±5%
COD Resolution 0.01mg/L
TOC Range 0-180 mg/L 0-600 mg/L
TOC Resolution 0.01mg/L
Turbidity Range 0-500 NTU
Turbidity Accuracy ±5%
Turbidity Resolution 0.01 NTU
Material 316L (Titanium customizable)
Operating Temperature 0~50℃
IP Rating IP68
Output RS485, Modbus
Power Consumption 0.25W (not rotating brush), 0.8W (rotating brush) Recommended power supply: DC 12-24V, ≥1A 0.25W (not rotating brush), 2W (rotating brush) Recommended power supply: DC 12-24V, ≥1A
Sensor Dimensions Φ50mm * 179mm
Cable Length 10m (default), customizable
Calibration Support one point and two-points calibration
Max. Pressure 3 bar

Note: The above technical parameters are all data under laboratory standard solution environment; sensor life and maintenance and calibration frequency are related to actual on-site conditions.
