Specifications
Brand Name :
KACISE
Model Number :
KWS-101
Place of Origin :
CHINA
MOQ :
1PCS
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
1000 Piece/Pieces per Week negotiable
Delivery Time :
5-8 work days
Packaging Details :
each unit has individual box and all boxes are packed in standard packages or customers requests available
Certification :
CE
Output :
RS485, Modbus
Sensor Dimensions :
Φ50mm * 179mm
COD Resolution :
0.01mg/L
COD Accuracy :
±5%
IP Rating :
IP68
Max. Pressure :
3 bar
Description

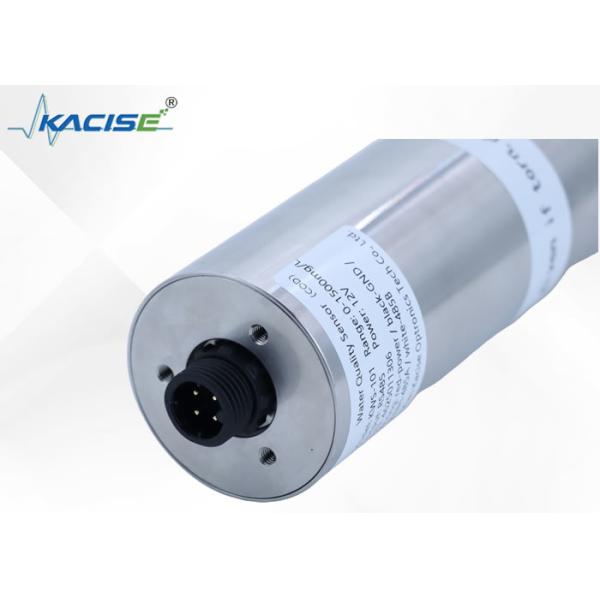

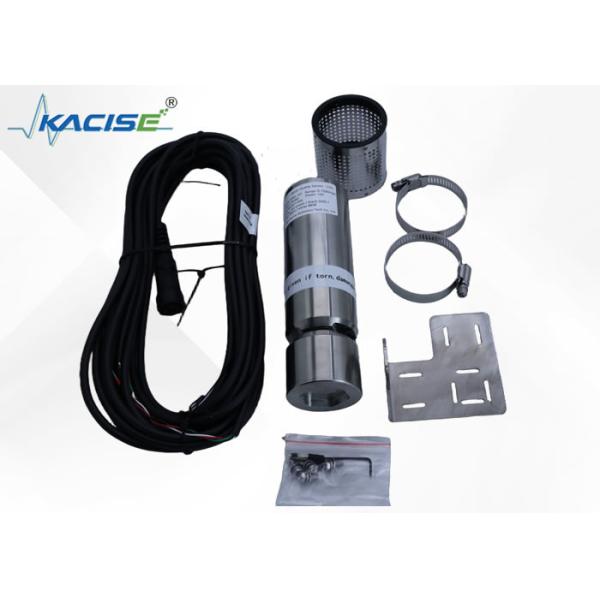

KWS-101 Digital Turbidity - Compensating COD Sensor
KACISE KWS101 Digital Turbidity - compensating COD Sensor

The KACISE KWS101 Digital Turbidity - compensating COD Sensor features unique turbidity compensation technology. It accurately measures COD in the range of 0-1500mg/L with a resolution of 0.01mg/L. By integrating a turbidity detection light source, it automatically adjusts for turbidity interference in the water being tested. This digital sensor has RS-485 output and follows Modbus protocol. Its compact size and easy installation make it suitable for various online water quality monitoring applications.

Key Features
  • Digital sensor with RS-485 output and Modbus protocol
  • Measures multiple parameters including COD, TOC, turbidity and temperature
  • Automatic turbidity interference compensation for superior test performance
  • Self-cleaning brush prevents biological attachment and extends maintenance cycles
  • Built-in calibration parameters for easy on-site use and secondary calibration
Technical Specifications
Parameter KWS-100 KWS-101
COD Range 0-500mg/L 0-1500mg/L
COD Accuracy ±5%
COD Resolution 0.01mg/L
TOC Range 0-180 mg/L 0-600 mg/L
TOC Resolution 0.01mg/L
Turbidity Range 0-500 NTU
Turbidity Accuracy ±5%
Turbidity Resolution 0.01 NTU
Material 316L (Titanium customizable)
Operating Temperature 0~50℃
IP Rating IP68
Output RS485, Modbus
Power Consumption 0.25W (not rotating brush), 0.8W (rotating brush)
Recommended power supply: DC 12-24V, ≥1A		 0.25W (not rotating brush), 2W (rotating brush)
Recommended power supply: DC 12-24V, ≥1A
Sensor Dimensions Φ50mm * 179mm
Cable Length 10m (default), customizable
Calibration Support one point and two-points calibration
Max. Pressure 3 bar
Note: The above technical parameters are all data under laboratory standard solution environment; sensor life and maintenance and calibration frequency are related to actual on-site conditions.
