KMC 770 Digital Paint Thickness Meter for Auto and Metal
KMC 770 Digital Paint Thickness Meter for Auto and Metal
KMC 770 Digital Paint Thickness Meter for Auto and Metal
KMC 770 Digital Paint Thickness Meter for Auto and Metal
KMC 770 Digital Paint Thickness Meter for Auto and Metal
KMC 770 Digital Paint Thickness Meter for Auto and Metal
KMC 770 Digital Paint Thickness Meter for Auto and Metal
KMC 770 Digital Paint Thickness Meter for Auto and Metal
Specifications
Brand Name :
KMC
Model Number :
KMC-770
Certification :
CE
MOQ :
1PCS
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
1000 Piece/Pieces per Week negotiable
Delivery Time :
5-8 work days
Packaging Details :
each unit has individual box and all boxes are packed in standard packages or customers requests available
Model :
KMC-770
Probe Triggering Force :
0.3~0.8N
Operating Temperature :
-10~50℃
Measuring Range :
0~2000μm
Product Name :
Coating Thickness Gauge
Description

KMC 770 Digital Auto Car Paint Thickness Meter

Product Introduction

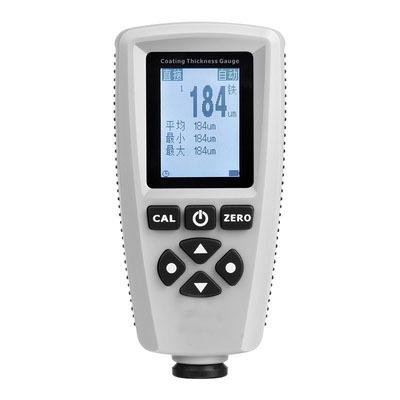

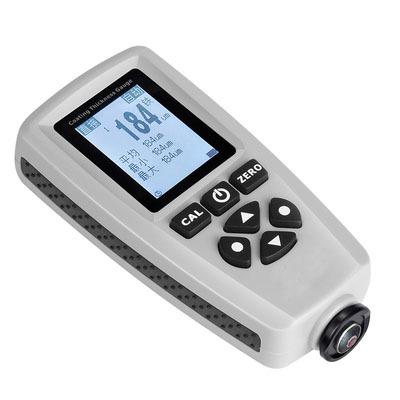

The KMC 770 is a high-precision coating thickness tester designed for non-destructive measurement of paint, galvanized layers, and plastic films on metal surfaces. It uses advanced technology to automatically identify ferromagnetic (iron, nickel, cobalt) and non-ferromagnetic (aluminum, copper) substrates, making it ideal for quality control in automotive, manufacturing, and chemical industries. With a measurement range of 0–2000μm and ±(2.5% + 1μm) accuracy, the device ensures reliable data for second-hand car inspections, material testing, and commodity inspection.

KMC 770 Digital Paint Thickness Meter for Auto and MetalKMC 770 Digital Paint Thickness Meter for Auto and Metal


Product Features
Dual-Probe Technology:
Ruby-tipped probe automatically identifies iron/aluminum substrates for seamless switching between measurements.
Measures non-conductive coatings on metal and non-ferromagnetic coatings on ferromagnetic metals.
High Precision & Speed:
±(2.5% + 1μm) accuracy with a measurement speed of 2 times/second.
Suitable for thin films (e.g., car paint) and thick coatings (up to 2000μm).
Environment Resistance:
Operates reliably in -10°C–50°C, maintaining accuracy in extreme temperatures.
Red screen warning for out-of-range measurements.
User-Friendly Design:
Auto-shutoff for energy saving (no operation timeout).
Reversible screen for flexible measurement angles in tight spaces.
Compact size (114×53×25mm) and lightweight (80g) for portability.
Data Management:
Store and transfer measurement data to computers for analysis.
Ideal for batch testing and generating quality reports.
Technical Specs at a Glance

Brand name KACISE
Model KMC-770
Probe location: built-in
measuring range 0~2000μm
Probe triggering force 0.3~0.8N
Minimum measurement area Diameter 15 mm
boundary dimension 114*53*25mm
Accuracy ±(2.5%+1μm)
Weight 80g
operating temperature -10~50℃
product name Coating thickness gauge
Warranty 1 year
