Specifications
Brand Name :
Dwyer
Model Number :
DM-2000
MOQ :
1PCS
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
1000 Piece/Pieces per Week negotiable
Delivery Time :
5-8 work days
Packaging Details :
each unit has individual box and all boxes are packed in standard packages or customers requests available
Certification :
CE
Accuracy :
±1% F.S. At 70°F.
Connection Location :
Screw-type Terminal Bloc
Dial Diameter :
100
Warranty :
1 Year
Customized Support :
OEM, ODM
Temperature Effect :
20 To 120°F (-6.67 To 48.9°C).
Description

OEM ODM Digital Differential Pressure Gauge 100mm IECEE

Product Introduction

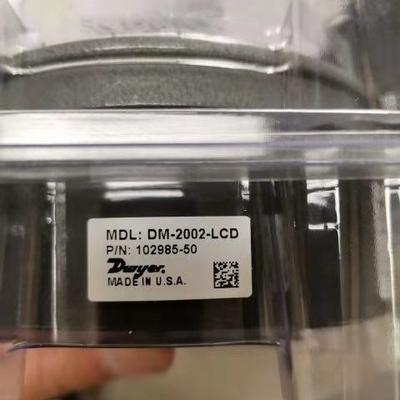

Dwyer DM-2002 Series Digital differential pressure gauge DM-2002-LCD Output Signal 4 to 20 mA.

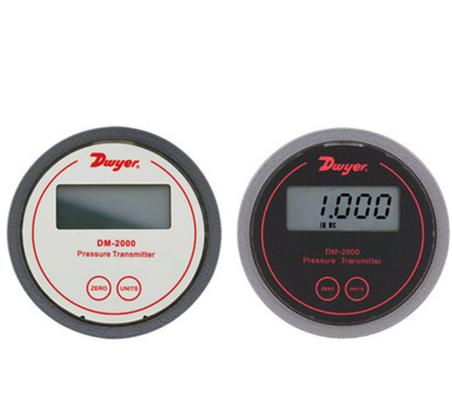

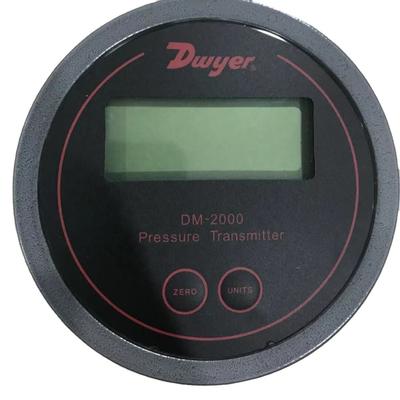

DM-2000 series differential pressure transmitter with digital display is used to monitor the differential pressure of air or other compatible gases, output standard 4-20mA. It is the same size as the 2000 series Magnehelic differential pressure gauge mounting hole, which is easy to replace and upgrade. There are many ranges to choose from, and special ranges can also be customized.FRP molded pressure joints and housings are used for easy and simple installation. Numeric keys to calibrate zero and span. Optional three-and-a-half LCD digital display for on-site indication, according to different ranges, there are 4 to 6 engineering units for selection.

Digital Differential Pressure Gauge 100mm with 4-20mA Output

Technical Specs at a Glance

Parameter Details
Model Range Examples DM-2002: 0–0.25" w.c. / DM-2012: ±0.25" w.c. / DM-2007: 0–5" w.c.
Accuracy ±1% FS at 70°F (21°C)
Output Signal 4–20 mA (2-wire)
Power Supply 10–35 VDC
Display (Optional) 3.5-digit LCD, 0.7" height
Process Connections 1/8" ID tubing
Enclosure Material Glass-filled plastic
Weight 4.8 oz (136 g)
Agency Approvals CE certified
