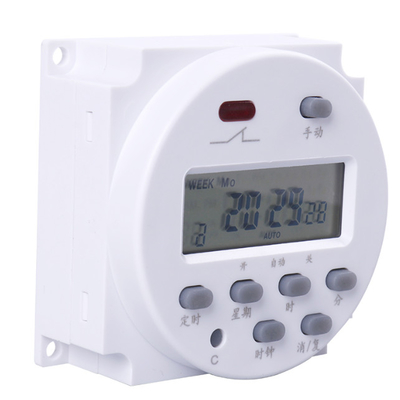

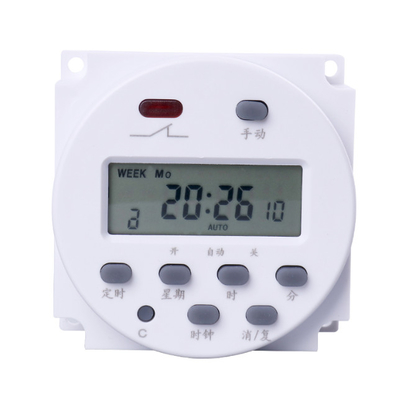

KMC-CN101A Din Rail Weekly Programmable Timer Switch 16A
KMC-CN101A Din Rail Weekly Programmable Timer Switch 16A
KMC-CN101A Din Rail Weekly Programmable Timer Switch 16A
KMC-CN101A Din Rail Weekly Programmable Timer Switch 16A
KMC-CN101A Din Rail Weekly Programmable Timer Switch 16A
KMC-CN101A Din Rail Weekly Programmable Timer Switch 16A
KMC-CN101A Din Rail Weekly Programmable Timer Switch 16A
KMC-CN101A Din Rail Weekly Programmable Timer Switch 16A
Specifications
Programmable :
17times/week Or Day
Installation Type :
Din Rail
Dimensions :
62x62x32.5mm
Minimum Interval :
1 Minute
Product Name :
Programmable Timer Switch
Brand Name :
KACISE
Model Number :
KMC-CN101A
MOQ :
1PCS
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
1000 Piece/Pieces per Week negotiable
Delivery Time :
5-8 work days
Packaging Details :
each unit has individual box and all boxes are packed in standard packages or customers requests available
Warranty :
1 Year
Description
KMC-CN101A Din Rail Weekly Programmable Timer Switch 16A
Product Overview

The KMC-CN101A is a versatile din rail-mounted timer switch designed for precise time control in various electrical systems. With support for multiple voltage inputs (12V/24V/110V/220V) and a 16A contact capacity, it enables programmable scheduling for lighting, motors, and equipment.

KMC-CN101A Din Rail Weekly Programmable Timer Switch 16A
Key Attributes
Attribute Value
Minimum Interval 1 Minute
Programmable 17times/week Or Day
Dimensions 62x62x32.5mm
Warranty 1 Year
Installation Type Din Rail
Product Features
  • Wide Voltage Compatibility

    Supports input voltages: 12V, 24V, 110V, 220V AC/DC. 16A contact capacity suitable for high-load devices (e.g., motors, lighting systems).

  • Precision Timing

    Adjustable timing range: 1 minute to 168 hours (1 week). Weekly programmable with up to 172 group settings for complex scheduling needs.

  • Reliable Memory & Power

    Rechargeable 1.2V/40mA battery preserves settings during power outages (180-day memory). Power consumption: ≤2W for energy efficiency.

  • Durable Design

    Operating temperature: -10°C to 40°C for reliable performance in diverse environments. Din rail mounting for easy installation in control panels.

  • Intelligent Control

    8-microprocessor control chip for stable performance and high anti-interference capability. LCD display with intuitive interface for setting time, mode, and schedules.

Technical Specifications
Rated Voltage 12V / 24V / 110V / 220V
Contact Capacity 16A
Power Consumption No more than 2W
Internal Battery 1.2V/40mA (rechargeable batteries)

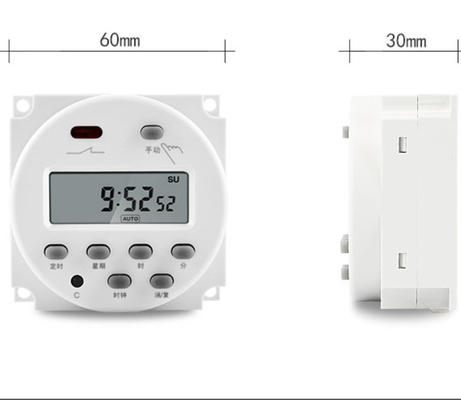

Dimensions 62x62x32.5mm
Power Failure Memory 180 days
Operate Temperature -10 to +40°C

Ideal for: Industrial automation, commercial lighting control, residential automation, and equipment scheduling applications requiring precise timing control.
