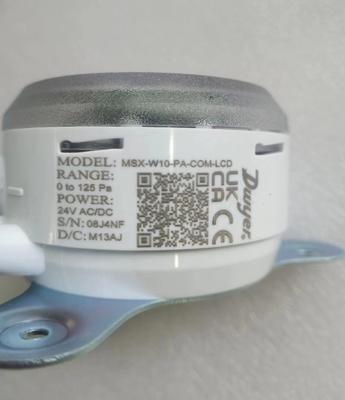

Dwyer MSX-W10-PA-COM-LCD Differential Pressure Transmitter

Product Introduction

The Dwyer MSX-W10-PA-COM-LCD is a versatile differential pressure transmitter designed to monitor differential pressure, air velocity, and volumetric flow. It is part of the MSX series, which includes various models such as MSX-U12-IN, MSX-W10-IN-LCD, MSX-W11-PA, etc., each tailored to specific application needs. This transmitter is suitable for a range of industrial and commercial environments where accurate measurement of pressure, velocity, and flow is essential.

Product Applications

Filter Monitoring: Used in air handler units to monitor filter conditions, helping to determine when filters need replacement by tracking pressure drops.

Clean Room Pressure Control: Ideal for monitoring building pressure in pharmaceutical and semiconductor clean rooms, ensuring the maintenance of required pressure differentials to prevent contamination.

Duct Static Pressure Measurement: Applied in commercial buildings to measure duct static pressure, aiding in the efficient operation of HVAC systems.

VAV Systems: Suitable for monitoring air velocity and flow in Variable Air Volume (VAV) systems, allowing for precise control of air distribution to maintain comfortable and consistent indoor environments.

Key Features (Inferred from Series and Application Context)

Multi-Parameter Monitoring: Capable of measuring differential pressure, air velocity, and volumetric flow, providing comprehensive data for system optimization.

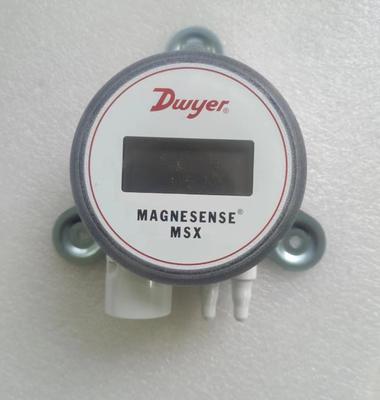

LCD Display: Equipped with an LCD display (as indicated by the "LCD" in the model name), enabling real-time visualization of measured values for quick on-site monitoring.

Communication Capability: The "COM" in the model name suggests communication functionality, allowing for data transmission to control systems or other devices, facilitating remote monitoring and integration into building management systems.

Versatile Compatibility: Part of a diverse series with various models, ensuring compatibility with different installation requirements, pressure ranges, and environmental conditions.

Reliable Performance: Designed to deliver accurate and stable measurements, ensuring the reliability of data used for system control and maintenance decisions.

Series Model Overview

The MSX series includes a wide range of models with variations in parameters such as pressure ranges, input types, and display options. Examples of models in the series include:

MSX-U12-IN

MSX-U12-IN-LCD

MSX-W10-IN

MSX-W10-IN-LCD

MSX-W10-PA

MSX-W11-IN

MSX-W11-IN-LCD

MSX-W11-PA

MSX-W12-IN

MSX-W12-IN-LCD

MSX-W12-PA

MSX-W12-PA-LCD

MSX-W13-IN

MSX-W13-IN-LCD

MSX-W13-PA

MSX-W20-IN

MSX-W20-IN-LCD

MSX-W20-PA

MSX-W21-IN

MSX-W22-IN

MSX-W22-IN-LCD

MSX-W22-PA

MSX-W23-IN

MSX-W23-IN-LCD
