Specifications
Type :
YT-3400LSZ3520S
Warranty :
1 Year
Brand :
Rotork
Certification :
CE
Highlight :
Low Temperature Valve Controller Positioner, YT-3400RDZ5501S Valve Controller Positioner, YT-3400LSZ3520S Valve Controller Positioner
Output :
4-20ma
Brand Name :
Rotork
Model Number :
YT-3400LSZ3520S
MOQ :
1PCS
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
1000 Piece/Pieces per Week negotiable
Delivery Time :
5-8 work days
Packaging Details :
each unit has individual box and all boxes are packed in standard packages or customers requests available
Description
Rotork YT-3400LSZ3520S, YT-3400RDZ5501S Direct/Angular Stroke Valve Controller Positioner
Brand Rotork
Type YT-3400LSZ3520S
Warranty 1 Year
Output 4-20ma
Highlight Low Temperature Valve Controller Positioner, YT-3400RDZ5501S Valve Controller Positioner, YT-3400LSZ3520S Valve Controller Positioner
Product Overview

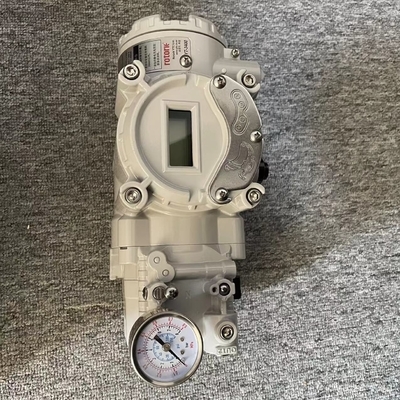

The Rotork YT-3400LSZ3520S and YT-3400RDZ5501S are direct/angular stroke valve controller positioners designed for low temperature applications. These microprocessor-based smart positioners provide precise valve stroke control in response to 4~20mA input signals. Featuring advanced functions like Auto-Calibration, PID Control, and optional HART Protocol Communications, they deliver reliable performance in demanding industrial environments including explosive gas atmospheres and high vibration conditions.
Rotork YT-3400 Valve Controller Positioner for Low Temperature Applications Rotork YT-3400 Valve Controller Positioner for Low Temperature Applications Rotork YT-3400 Valve Controller Positioner for Low Temperature Applications Rotork YT-3400 Valve Controller Positioner for Low Temperature Applications
Key Features
  • Safe operation in explosive environments with external LCD and button controls
  • Rapid 0.5 second recovery from power interruptions
  • Stable operation under supply pressure fluctuations and high vibration
  • Simple Auto-Calibration for easy setup and maintenance
  • Low air consumption reduces operating costs
  • Wide compatibility with most control systems
  • Variable orifice minimizes hunting and optimizes performance
  • Optional HART communication for remote monitoring
  • Analog feedback signal enhances system stability
  • Adjustable valve characteristics (Linear, Quick Open, Equal Percentage, Custom)
  • Field-adjustable PID parameters without additional tools
  • Manual operation capability for emergency situations
  • Split range settings (4~12mA or 12~20mA)
  • Wide operating temperature range (-30°C to 85°C or -40°C to 85°C)
  • IP66 protection against dust and water ingress
  • Corrosion-resistant epoxy polyester powder coating
  • Modular design simplifies maintenance
  • SIL2 safety certification
Technical Specifications
Model Numbers YT-3400LSZ3520S, YT-3400RDZ5501S
Brand Rotork
Type Direct/Angular Stroke Valve Controller Positioner (Low Temperature)
Acting Type Single, Double
Lever Type 10 ~ 40 mm
Rotary M6 x 63L
Input Signal 4~20mA
Operating Temperature -30°C to 85°C or -40°C to 85°C (model dependent)
Protection Grade IP66
Certification SIL2
Communication (Optional) HART Protocol
