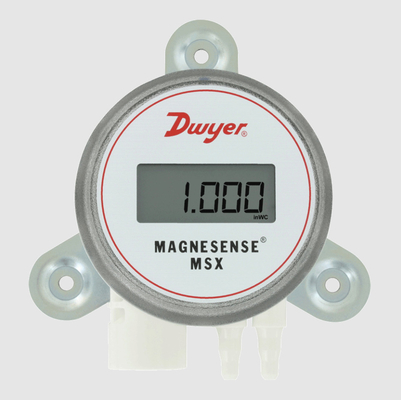

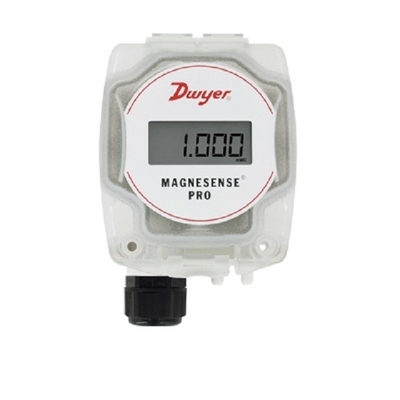

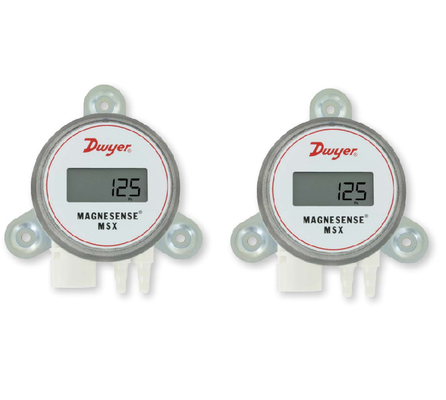

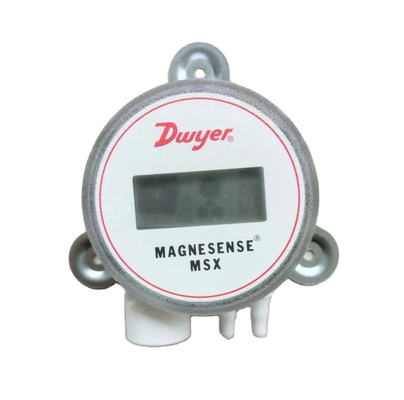

Dwyer MSX-W20-PA Bidirectional Differential Pressure Transmitter 24VDC
Dwyer MSX-W20-PA Bidirectional Differential Pressure Transmitter 24VDC
Dwyer MSX-W20-PA Bidirectional Differential Pressure Transmitter 24VDC
Dwyer MSX-W20-PA Bidirectional Differential Pressure Transmitter 24VDC
Dwyer MSX-W20-PA Bidirectional Differential Pressure Transmitter 24VDC
Dwyer MSX-W20-PA Bidirectional Differential Pressure Transmitter 24VDC
Dwyer MSX-W20-PA Bidirectional Differential Pressure Transmitter 24VDC
Dwyer MSX-W20-PA Bidirectional Differential Pressure Transmitter 24VDC
Specifications
Brand Name :
DWYER
Model Number :
MSX-W20-PA
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
1000 Piece/Pieces per Week negotiable
Delivery Time :
5-8 work days
Packaging Details :
each unit has individual box and all boxes are packed in standard packages or customers requests available
Pressure Range :
-125 TO 125 Pa
Highlight :
MSX-W20-PA Digital Pressure Gauge, LCD Display Digital Pressure Manometer, 4 Digit Industrial Pressure Gauge
Certification :
ce
Display :
4 Digit LCD
Power Supply :
24VDC
Current Output :
0-1250 Ω Max
Working Temperature :
-4 To 158°F (-20 To 70°C)
Description
Dwyer MSX-W20-PA Bidirectional Differential Pressure Transmitter 24VDC
MSX-W20-PA Digital Pressure Gauge, LCD Display Digital Pressure Manometer, 4 Digit Industrial Pressure Gauge
Product Attributes
Attribute Value
Power Supply 24VDC
Pressure Range -125 TO 125 Pa
Display 4 Digit LCD
Working Temperature -4 To 158°F (-20 To 70°C)
Current Output 0-1250 Ω Max
Product Description

The Dwyer MSX-W20-PA Bidirectional Differential Pressure Transmitter is a key member of the Series MSX Magnesense® lineup, integrating the stability and versatility of the original Series MS2 Magnesense® II transmitter. Tailored for building control applications, it simplifies configuration with a wide range of pressure options and bidirectional functionality, making it a reliable choice for critical environments. Whether monitoring building pressure in pharmaceutical clean rooms or air velocity in VAV systems, it delivers precise measurements and flexible output signals to meet diverse operational needs.

Dwyer MSX-W20-PA Bidirectional Differential Pressure Transmitter 24VDC Dwyer MSX-W20-PA Bidirectional Differential Pressure Transmitter 24VDC Dwyer MSX-W20-PA Bidirectional Differential Pressure Transmitter 24VDC Dwyer MSX-W20-PA Bidirectional Differential Pressure Transmitter 24VDC
Features
  • Bidirectional measurement capability, configurable to handle various pressure ranges in both positive and negative directions, providing adaptability for dynamic pressure conditions.
  • Supports pressure ranges in Pa, mm w.c., and in w.c., with 32 available ranges to suit specific application requirements.
  • Offers linear pressure output or linear velocity output via square root extraction, with expanded parameters for flow calculation, enhancing its functionality beyond basic differential pressure monitoring.
  • Dual voltage and milliamp output signals, enabling both control of systems and verification of equipment output signals, ensuring operational accuracy.
  • Simplified ordering process with pre-configured options, reducing product setup time and streamlining installation.
  • Wall-mount design, ideal for integration into building control systems in critical environments like semiconductor clean rooms and commercial buildings.
Technical Specifications
Warranty 1 year
Customized support OEM, ODM
Place of Origin USA
Brand Name Dwyer
Model Number MSX-W20-PA
Power supply 24VDC
Range -125 TO 125 Pa
Product Name Differential Pressure Transmitter
Temperature Limits -4 to 158°F (-20 to 70°C)
Output signal 4~20mA
Current output 0-1250Ω max
Electrical Connections 4-wire
Display (optional) 4 digit LCD
Agency Approvals CE
