Testo 550 Digital Refrigerant Manifold Kit with Bluetooth
Testo 550 Digital Refrigerant Manifold Kit with Bluetooth
Testo 550 Digital Refrigerant Manifold Kit with Bluetooth
Testo 550 Digital Refrigerant Manifold Kit with Bluetooth
Testo 550 Digital Refrigerant Manifold Kit with Bluetooth
Testo 550 Digital Refrigerant Manifold Kit with Bluetooth
Testo 550 Digital Refrigerant Manifold Kit with Bluetooth
Testo 550 Digital Refrigerant Manifold Kit with Bluetooth
Specifications
Brand Name :
Testo
Model Number :
550
MOQ :
1PCS
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
1000 Piece/Pieces per Week negotiable
Delivery Time :
5-8 work days
Packaging Details :
each unit has individual box and all boxes are packed in standard packages or customers requests available
Certification :
ce
Order Number :
0563 1550
Operating Temperature :
-4° To 122 °F / -20 To +50 °C
Storage Temperature :
-4° To 140 °F / -20 To +60 °C
Battery Life :
Approx. 250h
Weight :
85.50 Oz. / 2424 G
Size :
7.87 X 4.29 X 2.48 In. / 200 X 109 X 63 Mm
Description

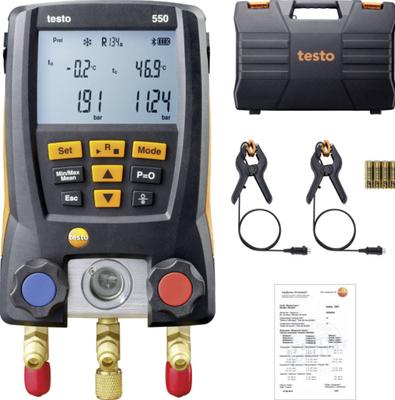

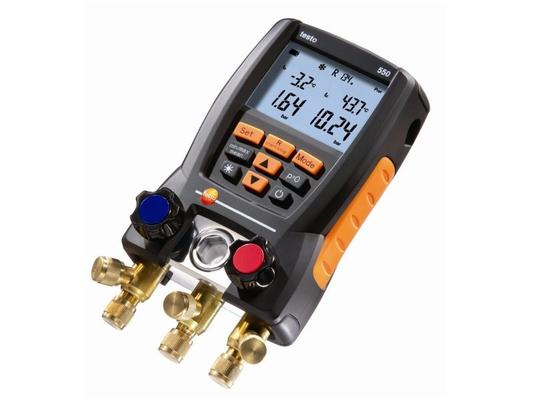

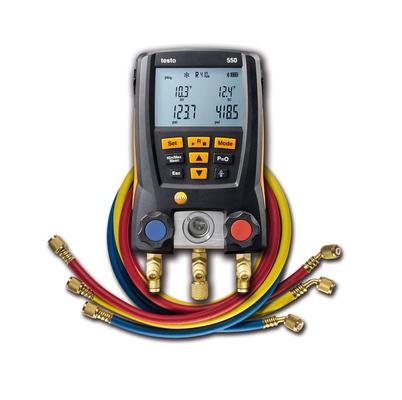

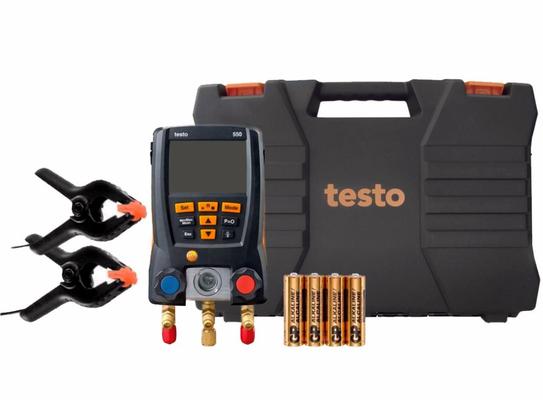

Testo 550 Digital Refrigerant Manifold Kit with Bluetooth



Product Introduction



The Testo 550 Digital Refrigerant Manifold Kit with Bluetooth is a robust, versatile tool designed for professionals working on refrigeration and air conditioning systems. Combining high-precision pressure and temperature measurements with smart connectivity, it simplifies tasks from leak testing to superheat/subcooling calculations. Equipped with a rugged housing, 60 refrigerant profiles, and seamless integration with mobile apps, it streamlines data documentation and report generation, making it an essential instrument for efficient on-site service and maintenance.

Testo 550 Digital Refrigerant Manifold Kit with Bluetooth

Testo 550 Digital Refrigerant Manifold Kit with Bluetooth

Testo 550 Digital Refrigerant Manifold Kit with Bluetooth

Testo 550 Digital Refrigerant Manifold Kit with Bluetooth


Features



Bluetooth Connectivity: Enables wireless data transfer to smartphones or tablets within a 65-foot range, supporting live monitoring, report generation, and direct emailing of reports and invoices via the app.​

Comprehensive Measurement Capabilities: Measures high-side and low-side pressures, temperatures (via two included NTC clamp probes), and automatically calculates saturation, evaporation, superheat, and subcooling values.​

60 Refrigerant Profiles: Pre-loaded with 60 common refrigerant profiles, with the ability to download new ones via the app, ensuring compatibility with a wide range of systems.​

Leak Test Functionality: Simplifies leak detection with dedicated features for pressure drop monitoring, enhancing diagnostic efficiency.​

Rugged Design: Features a metal frame around the display for impact protection, housed in a durable casing. Registration extends the warranty to an additional year, ensuring long-term reliability.​

User-Friendly Interface: Large 2-line backlit display and simplified menu structure for easy operation, even in low-light environments.​

Integration with MeasureQuick App: Supports live data feed integration, enhancing diagnostic capabilities with advanced analysis tools.



Technical Specs at a Glance


Temperature
Measuring range -58° to 302 °F / -50 to +150 °C
Accuracy ±0.9 °F / ±0.5 °C
Resolution 0.1 °F / 0.1 °C
Probe connection 2 x plug-in (NTC)
Pressure measurement
Measuring range -15 to 870 psi / -1 to 60 bar
Accuracy ±0.5 % Fs
Resolution 0.14 psi / 0.01 bar
Probe connection 3 x 7/16" – UNF
Overload rel. (high pressure) 943 psi / 65 bar
Vacuum
Measuring range -15 to 0 psi (indication) / -1 to 0 bar
General technical data
Weight 85.50 oz. / 2424 g
Dimensions 7.87 x 4.29 x 2.48 in. / 200 x 109 x 63 mm
Operating temperature -4° to 122 °F / -20 to +50 °C
Protection class IP42
System requirements requires iOS 12.0 or newer; requires Android 6.0 or newer; requires mobile end device with Bluetooth 4.0
Product colour Black
Battery life approx. 250h (display light off, Bluetooth off)
Refrigerants in instrument R114; R12; R123; R1233zd; R1234yf; R1234ze; R124; R125; R13; R134a; R22; R23; R290; R32; R401A; R401B; R402A; R402B; R404A; R407A; R407C; R407F; R407H; R408A; R409A; R410A; R414B; R416A; R420A; R421A; R421B; R422B; R422C; R422D; R424A; R427A; R434A; R437A; R438A; R442A; R444B; R448A; R449A; R450A; R452A; R452B; R453a; R454A; R454B; R454C; R455A; R458A; R500; R502; R503; R507; R513A; R600a; R718 (H₂O); R744 (CO₂)
Refrigerants update via App R11; FX80; I12A; R1150; R1270; R13B1; R14; R142B; R152A; R161; R170; R227; R236fa; R245fa; R401C; R406A; R407B; R407D; R41; Ra11A; R412A; R413A; R417A; R417B; R417C; R422A; R426A; R508A; R508B; R600; RIS89; SP22
Storage temperature -4° to 140 °F / -20 to +60 °C
