Testo 510i Smart Differential Pressure Probe for HVAC Systems
Testo 510i Smart Differential Pressure Probe for HVAC Systems
Testo 510i Smart Differential Pressure Probe for HVAC Systems
Testo 510i Smart Differential Pressure Probe for HVAC Systems
Testo 510i Smart Differential Pressure Probe for HVAC Systems
Testo 510i Smart Differential Pressure Probe for HVAC Systems
Testo 510i Smart Differential Pressure Probe for HVAC Systems
Testo 510i Smart Differential Pressure Probe for HVAC Systems
Specifications
Brand Name :
Testo
Model Number :

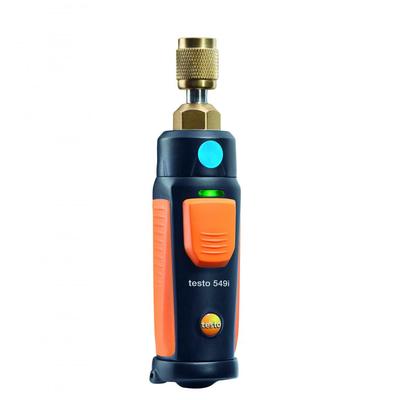

549i, 510i, 410i
MOQ :
1PCS
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
1000 Piece/Pieces per Week negotiable
Delivery Time :
5-8 work days
Packaging Details :
each unit has individual box and all boxes are packed in standard packages or customers requests available
Certification :
ce
Warranty :
1 Year
Customized Support :
OEM, ODM
Operating Temperature :
-20 To +50 °C
Storage Temperature :
-20 To +60 °C
Battery Life :
250 H (without Illumination, Without Bluetooth)
Dimensions :
200 X 109 X 63 Mm
Description

Testo 510i Smart Differential Pressure Probe



Product Introduction



The Testo 510i Smart Differential Pressure Probe is a compact, high-precision instrument designed for accurate low-pressure measurements in various systems. Its wireless connectivity to smartphones or tablets via the testo Smart Probes App enables seamless operation, making it ideal for tasks such as measuring static pressure in ventilation systems, pressure drops across filters and coils, and manifold pressure. With a magnetic back for hands-free use and the ability to work with up to six smart probes simultaneously, it greatly enhances work efficiency for professionals in HVAC and building maintenance.

Testo 510i Smart Differential Pressure Probe for HVAC Systems

Testo 510i Smart Differential Pressure Probe for HVAC Systems

Testo 510i Smart Differential Pressure Probe for HVAC Systems

Testo 510i Smart Differential Pressure Probe for HVAC Systems


Features

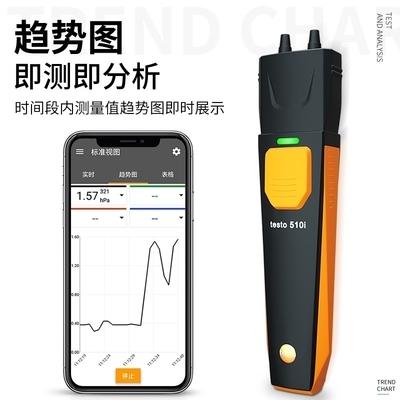

Wireless Smartphone Operation: Connects to the testo Smart Probes App on smartphones or tablets, allowing remote reading of measurements, data recording, and report generation.​

Comprehensive Measurement: Capable of measuring differential pressure, static pressure, air flow, and volume flow (when used with a pitot tube, not included), with air density and temperature compensation ensuring accuracy.​

Hands-Free Convenience: Equipped with a magnetic back that can be attached to metal surfaces, freeing up hands for other operations during measurements.​

Data Management: The app presents measurement data in diagrams or tables, and reports can be directly emailed as PDF or Excel files, reducing paperwork.​

Compact Design: Pocket-sized, easy to carry, and suitable for use in tight spaces like ducts and equipment enclosures.



Technical Specs at a Glance

Pressure measurement
Measuring range -15 to +870 psi / -1 to +60 bar
Accuracy 卤0.5 % of full-scale value
Resolution 0.01 psi / 0.01 bar
Probe connection 7 / 16 in. - UNF
Overload rel. (high pressure) +943 psi / +65 bar
General technical data
Weight 5.52 oz. / 156.6 g
Dimensions 5 x 1 x 1 in. / 125 x 32 x 31 mm
Operating temperature -4° to 122 °F / -20 to +50 °C
Housing Plastic
Product colour black/orange
Battery type 3 x AAA
Battery life 150 h
Pressure media CFC, HFC, HCFC, N, H₂O, CO₂
System requirements requires iOS 8.3 or newer; requires Android 4.3 or newer; requires mobile end device with Bluetooth 4.0
requires iOS 11.0 or newer; requires Android 6.0 or newer; requires mobile end device with Bluetooth 4.0
Storage temperature -4° to 140 °F / -20 to +60 °C
