WIKA Precision Pressure Transmitter 24V DC For General Industrial Applications

Product Introduction

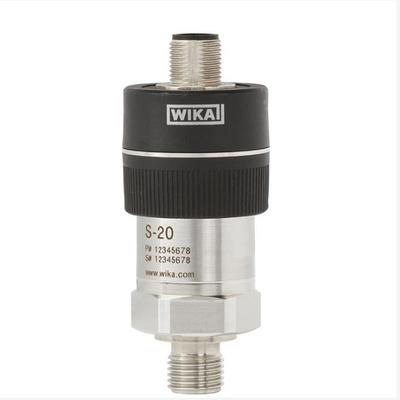

The WIKA S - 20 pressure transmitter is a high - quality product designed for general industrial applications, featuring high accuracy, a robust structure, and a wide range of application adaptability. The following is a detailed introduction based on the provided information:

Features

High - accuracy Measurement: With an accuracy of ≤ ±0.25% of span, and non - linearity up to 0.125% of span, the non - repeatability is ≤ ±0.1% of span, and the long - term drift is ≤ ±0.1% of span (≤ ±0.2% of span for special measuring ranges and those less than 1 bar). It can provide relatively accurate pressure measurement results.

Wide Measuring Range: The measuring range is from 0...0.1 bar to 0...1,000 bar, and it can also support a wider range of 0...0.4 bar to 0...1,600 bar, covering a variety of common pressure units, which can meet the measurement needs of different pressure ranges.

Diverse Output Signals: It supports standard industrial output signals, such as 4 - 20 mA, DC 0 - 10 V, DC 1 - 5 V, etc., which is convenient for connection and communication with other devices.

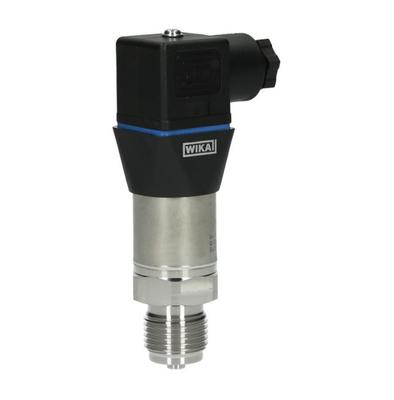

Rich Interfaces: Equipped with international process connectors and market - standard electrical connections (such as DIN 175301 - 803 A angular connector), which is convenient for installation and connection in different industrial systems.

Strong Environmental Adaptability: The durable design enables it to work normally in harsh environments, such as outdoor low - temperature conditions, severe shock and vibration environments in mechanical manufacturing, and corrosive media environments in the chemical industry.

Optional Configuration: It provides options such as different accuracy levels, extended temperature range, and custom pin assignments, which can be customized according to user needs

Technical Specs at a Glance
