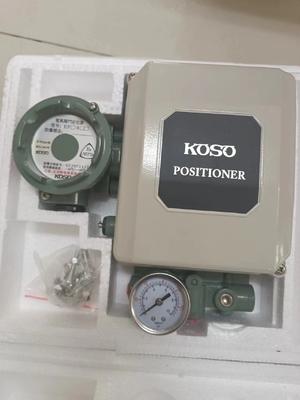

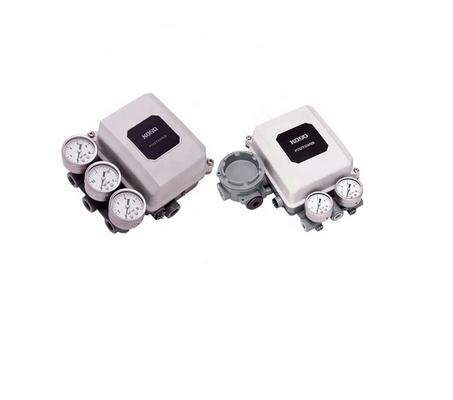

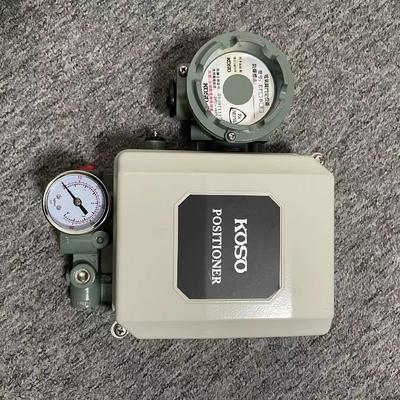

KOSO EP800 Series Electro-Pneumatic Positioners

Product Introduction

The KOSO EP800 series electro-pneumatic positioners are designed for use with pneumatic actuators, specifically for positioning pneumatic actuator-operated control valves. They convert an input 4-20mA DC signal into output air pressure to control the actions of the actuator. Meanwhile, they receive feedback based on the actuator's stroke, enabling the actuator's stroke to be precisely positioned according to the control signal.​

This series includes various models, divided into straight stroke and angular stroke series, with single-acting (such as EPA801, EPA804) and double-acting (such as EPC801, EPC804) types. Common specifications are available from stock, and the company offers them at the best price with the fastest delivery time. More detailed technical information can be provided upon request.

Product Features

Precise Positioning: Achieves accurate positioning of the actuator's stroke through valve position feedback from the valve stem, with a dead zone of less than 0.4% of the full stroke and a backdrop of less than 1% for full travel.​

Versatile Input Signals: Supports standard 4-20mA DC input signals, as well as split signals like 4-12mA DC, 12-20mA DC, and 10-50mA DC (for specific models), adapting to different control systems.​

Wide Application Range: Suitable for both straight stroke (12-100mm) and angular stroke (0-90 degrees) actuators, meeting various valve control needs.​

Flexible Output Characteristics: Linear output characteristics by default, which can be changed to fast open or equal percentage characteristics, providing adaptability to different process requirements.​

Durable Construction: Housing made of aluminum alloy, ensuring durability. It comes in flameproof and normal types, withstanding a wide range of ambient temperatures (-40-80oC for normal type, -20-60oC for flameproof type) and relative humidity up to 90%.

Product Parameters​

Brand: Koso​

Series: EP800​

Types:​

Straight stroke series: Single acting (EPA801, EPA811, EPA821, EPB801, EPB811, EPB821, EPL801, EPL811); Double acting (EPC801, EPC811, EPC821)​

Angular stroke series: Single acting (EPA804, EPA814, EPA824); Double acting (EPC804, EPC8114, EPC824)​

Also includes models like EPP2111, EPP2211, EPP2311, etc.​

Input Signal:​

Standard: 4-20mA DC​

Split: 4-12mA DC, 12-20mA DC, 10-50mA DC (for EP-15,17, EP-25,27)​

Input Impedance: 250Ohm (4-20mA DC); 100Ohm (10-50mA DC)​

Rated Stroke:​

Straight stroke: 12-100mm​

Angular stroke: 0-90 degrees​

Air Supply Pressure: 0.14-0.16MPa; 0.17-0.50MPa​

Air Consumption: 5NL/min (when supply pressure is 0.4MPa)​

Backdrop: Less than 1% of full travel​

Dead Zone: Less than 0.4% of full stroke​

Output Characteristics: Linear (can be changed to fast open, equal percentage characteristics)​

Ambient Temperature:​

Flameproof: -20-60oC​

Normal: -40-80oC​

Relative Humidity: Not greater than 90%​

Explosion-Proof Type: Flameproof type, Normal type​

Air Connection: ZG1/4​

Housing Material: Aluminum alloy​

Weight: 3.5kg​

Output (for EPA804): 4-20mA
