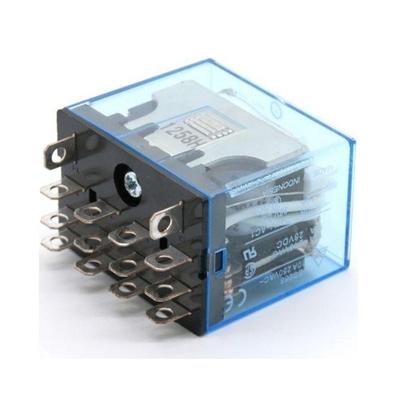

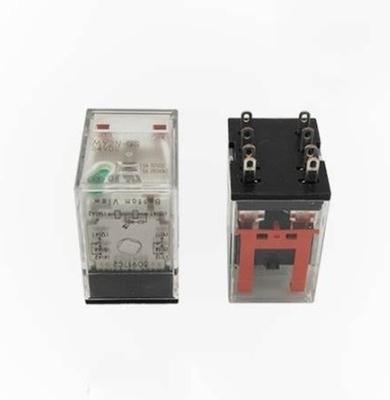

Omron MY2-GS General-Purpose Relay

Product Introduction

The Omron MY2-GS is a reliable general-purpose relay originating from China, with the trusted Omron brand and CE certification. It operates on 24VDC with a coil resistance of 662 Ω, making it suitable for a wide range of industrial and electrical applications.​

Designed to be durable and dependable, this relay offers consistent performance in various operating conditions. It comes in carton packaging, is available in stock with a supply ability of 500 pieces, and features flexible payment terms, ensuring convenient procurement for users. Whether used in control circuits, automation systems, or other electrical setups, it provides stable switching functionality.​

Product Features​

Stable Electrical Performance: Operates at 24VDC with a coil resistance of 662 Ω, and a coil current of 36.3 mA, ensuring consistent and reliable operation. The maximum voltage tolerance of 110% (at 23℃) adds to its adaptability.​

Durable Construction: Boasts excellent mechanical endurance of 100 million operations minimum and electrical endurance of 500,000 operations minimum, ensuring a long service life even with frequent use.​

Strong Environmental Resistance: Withstands a wide ambient temperature range of -55 to 70℃ (without freezing or condensation) and ambient humidity of 5 to 85%, performing reliably in harsh conditions. It also has good vibration and shock resistance, preventing malfunction or damage in unstable environments.​

Versatile Contact Specifications: Features a DPDT contact form with Ag contact material, supporting various load types. It can handle resistive and inductive loads at different voltages, with maximum switching power varying based on the load type.​

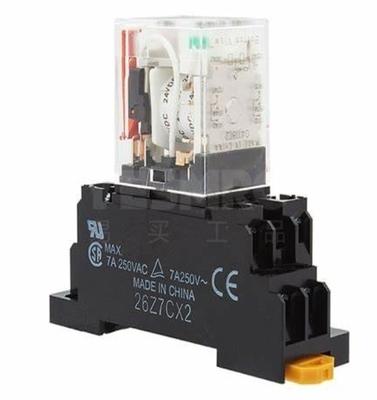

Easy Installation: Designed for socket mounting, compatible with a range of applicable sockets such as PYF08S, PYF08M, etc., simplifying installation and replacement processes.​

Product Parameters​

Model Number: MY2-GS​

Brand Name: Omron​

Type: General-Purpose Relay​

Place of Origin: China​

Certification: CE​

Coil Ratings: 24 VDC, 36.3 mA​

Coil Resistance: 662 Ω​

Power Consumption: Approx. 0.9 W​

Maximum Voltage: 110% (23 ℃)​

Operate Voltage (Set Voltage): 80% max.​

Release Voltage (Reset Voltage): 10% min.​

Contact Specifications:​

Contact Rated Load: 220 VAC 5 A (resistive), 220 VAC 2 A (inductive, cosφ=0.4), 24 VDC 5 A (resistive), 24 VDC 2 A (inductive, L/R=7 ms)​

Max. Contact Voltage: 250 VAC, 125 VDC​

Max. Contact Current: 5 A (AC/DC)​

Maximum Switching Power: 1100 VA (resistive), 440 VA (inductive, cosφ=0.4), 120 W (resistive), 48 W (inductive, L/R=7 ms)​

Contact Form: DPDT​

Contact Method: Single​

Contact Material: Ag​

Performance Parameters:​

Contact Resistance: 50 mΩ max. (5 VDC 1 A, voltage drop method)​

Operating Time: 20 ms max.​

Reset Time: 20 ms max.​

Maximum Operating Frequency: 18000 time/hour (mechanical), 1800 time/hour (rated load)​

Insulation Resistance: ≥100 MΩ (500 VDC) between coil and contacts, different polarity contacts, same polarity contacts​

Dielectric Strength: 2000 VAC 50/60 Hz 1 min (coil & contacts, different polarity contacts); 1000 VAC 50/60 Hz 1 min (same polarity contacts)​

Vibration Resistance: 10-55-10 Hz, 0.5-mm single amplitude (destruction and malfunction)​

Shock Resistance: 1000 m/s² (destruction), 200 m/s² (malfunction)​

Endurance: 100 million operations min. (mechanical); 500,000 operations min. (electrical)​

Environmental Parameters:​

Ambient Temperature (Operating): -55 to 70 ℃ (no freezing or condensation)​

Ambient Humidity (Operating): 5 to 85 %​

Physical Parameters:​

Weight: Approx. 35 g​

Mounting Method: Socket​

Applicable Socket: PYF08S/ PYF08M/ PYF-08-PU/ PYF-08-PU-L/ PYFZ-08/ PYFZ-08-E/ PY08/ PY08-Y1/ PY08QN/ PY08QN2/ PY08QN-Y1/ PY08QN2-Y1/ PY08-02​

Ordering Information:​

Minimum Order Quantity: 1​

Price: USD$1.5​

Packaging Details: Carton​

Delivery Time: In stock​

Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram​

Supply Ability: 500pc
