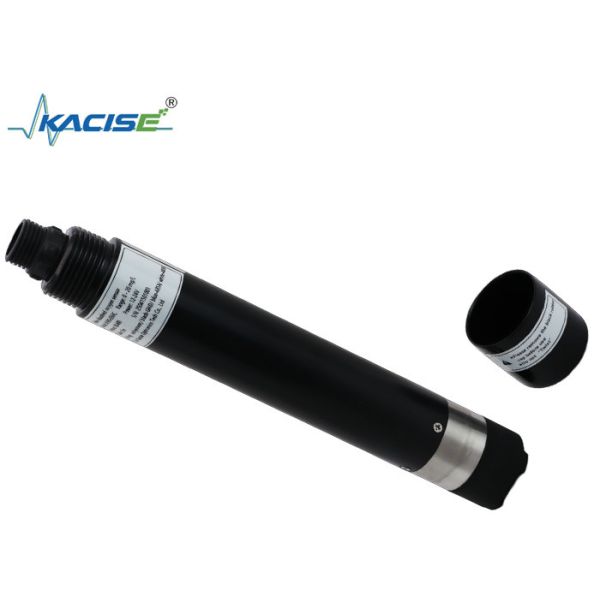

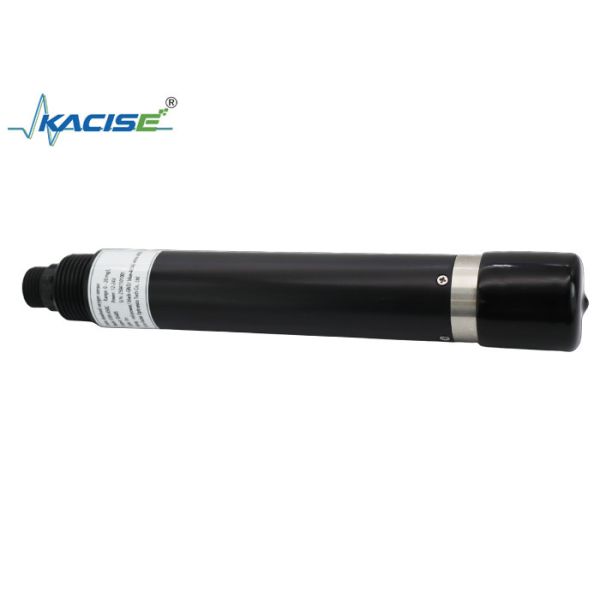

KWS-650C Online Dissolved Oxygen Sensor with Fluorescence Method No Electrolyte Required and Automatic Temperature Compensation
KWS-650C Online Dissolved Oxygen Sensor with Fluorescence Method No Electrolyte Required and Automatic Temperature Compensation
KWS-650C Online Dissolved Oxygen Sensor with Fluorescence Method No Electrolyte Required and Automatic Temperature Compensation
KWS-650C Online Dissolved Oxygen Sensor with Fluorescence Method No Electrolyte Required and Automatic Temperature Compensation
KWS-650C Online Dissolved Oxygen Sensor with Fluorescence Method No Electrolyte Required and Automatic Temperature Compensation
KWS-650C Online Dissolved Oxygen Sensor with Fluorescence Method No Electrolyte Required and Automatic Temperature Compensation
KWS-650C Online Dissolved Oxygen Sensor with Fluorescence Method No Electrolyte Required and Automatic Temperature Compensation
KWS-650C Online Dissolved Oxygen Sensor with Fluorescence Method No Electrolyte Required and Automatic Temperature Compensation
Specifications
Brand Name :
KACISE
Model Number :
KWS-650C
Place of Origin :
CHINA
MOQ :
1PCS
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
1000 Piece/Pieces per Week negotiable
Delivery Time :
5-8 work days
Packaging Details :
each unit has individual box and all boxes are packed in standard packages or customers requests available
Certification :
CE
Case material :
POM, ABS/PC alloy, 316L stainless steel
Measurement principle :
Fluorescence method
Range :
0～20.00 mg/L (0～200% saturation, 25℃)
Resolution :
0.01mg/L, 0.1℃
Accuracy :
±2%, ±0.3℃
Response time (T90) :
＜30s
Description
KWS-650C Online Dissolved Oxygen Sensor
Introduction

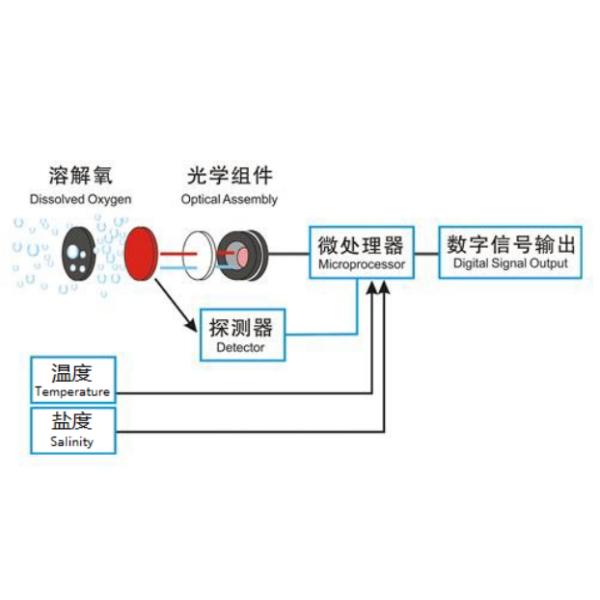

KWS-650C integrated online fluorescence dissolved oxygen sensor is designed based on the quenching principle of excited fluorescence by specific substances in physics. When the excitation light shines on the fluorescent substance on the surface of the fluorescent membrane head, the fluorescent substance is excited and emits fluorescence. The extinguishing time of the fluorescence is affected by the concentration of oxygen molecules on the surface of the fluorescent membrane head. The concentration of oxygen molecules can be calculated by detecting the phase difference between the fluorescence and the excitation light and comparing it with the internal calibration curve, and the final value is output after temperature and salinity compensation.

KWS-650C Online Dissolved Oxygen Sensor with Fluorescence Method No Electrolyte Required and Automatic Temperature Compensation

Feature
  • No electrolyte is required and will not be polarized.
  • No oxygen consumption, not affected by flow rate.
  • Built-in temperature sensor, automatic temperature compensation.
  • Built-in salinity compensation, flexible parameter settings.
  • Free from interference by chemicals such as sulfides.
  • Small drift, rapid reaction, more accurate measurement.
  • Long service cycle, lower cost of use.
  • Simple replacement of fluorescent cap.
  • R-485 interface, Modbus/RTU protocol.
  • Low power consumption,anti-interference.
Technical Specifications
Model KWS-650C
Case material POM, ABS/PC alloy, 316L stainless steel
Measurement principle Fluorescence method
Range 0～20.00 mg/L (0～200% saturation, 25℃)
Resolution 0.01mg/L, 0.1℃
Accuracy ±2%, ±0.3℃
Response time (T90) ＜30s
Minimum detection limit 0.08mg/L
Calibration method Two-point calibration
Cleaning method /
Temperature compensation Automatic temperature compensation (Pt1000)
Output method RS-485 (Modbus RTU)
Storage temperature -5~ 65℃
Working conditions 0～50℃, ≤0.2MPa
Installation method Submersible installation, 3/4 NPT
Power consumption 0.2W@12V
Power supply 12~ 24V DC
Protection level IP68
Life of fluorescent membrane head 1 year (under normal use)
Cable length 5 meters, other lengths can be customized
Dimension
