Testo 549i Smart High-Pressure Gauge For Refrigeration Systems
Testo 549i Smart High-Pressure Gauge For Refrigeration Systems
Testo 549i Smart High-Pressure Gauge For Refrigeration Systems
Testo 549i Smart High-Pressure Gauge For Refrigeration Systems
Testo 549i Smart High-Pressure Gauge For Refrigeration Systems
Testo 549i Smart High-Pressure Gauge For Refrigeration Systems
Testo 549i Smart High-Pressure Gauge For Refrigeration Systems
Testo 549i Smart High-Pressure Gauge For Refrigeration Systems
Specifications
Brand Name :
Testo
Model Number :
549i, 510i, 410i
MOQ :
1PCS
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
1000 Piece/Pieces per Week negotiable
Delivery Time :
5-8 work days
Packaging Details :
each unit has individual box and all boxes are packed in standard packages or customers requests available
Certification :
CE
Warranty :
1 Year
Customized Support :
OEM, ODM
Operating Temperature :
-20 To +50 °C
Storage Temperature :
-20 To +60 °C
Battery Life :
250 H (without Illumination, Without Bluetooth)
Dimensions :
200 X 109 X 63 Mm
Description

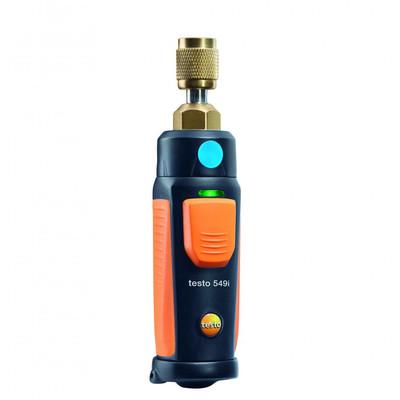

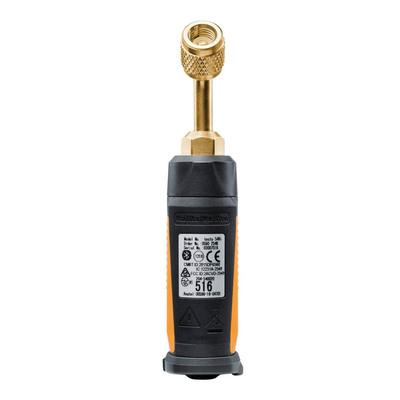

Testo 549i Smart High-Pressure Gauge for Refrigeration Systems

Product Introduction

The Testo 549i is a compact, smartphone-operated high-pressure gauge designed for wireless diagnostics of air conditioning and refrigeration systems. With a measurement range of -15 to 870 psi (-1 to 60 bar), it enables precise pressure monitoring while eliminating the need for traditional hoses—reducing refrigerant loss during servicing. Controlled via the testo Smart Probes App, it auto-calculates evaporation/condensation temperatures and supports real-time data visualization, making it an essential tool for mobile technicians.

Testo 549i Smart High-Pressure Gauge For Refrigeration SystemsTesto 549i Smart High-Pressure Gauge For Refrigeration Systems

Product Features

Measurement Capabilities

Wide Pressure Range:

-15 to 870 psi (-1 to 60 bar) with ±0.5% full-scale accuracy.

0.01 psi/bar resolution for detailed readings.

Hoseless Design:

Direct connection to 7/16 in. UNF pressure ports, minimizing refrigerant loss.

Media Compatibility:

Suitable for CFC, HFC, HCFC, nitrogen, water, and CO₂ systems.

Wireless Connectivity & App Functions

Bluetooth 4.0 Integration:

Pairs with iOS/Android devices (range ~65 ft/20 m) for remote operation.

testo Smart Probes App:

Auto-calculate evaporation/condensation temperatures.

Data display as graphs/tables; export to PDF/Excel.

Real-time monitoring for hard-to-reach pressure ports.

Design & Usability

Portable & Lightweight:

5×1×1 in. (125×32×31 mm), 5.52 oz (156.6 g) for one-handed use.

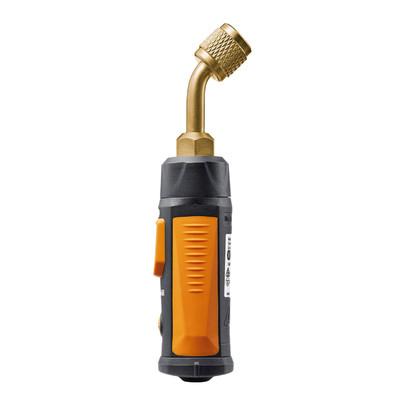

45° connector allows easy access to tight spaces.

Battery & Durability:

3x AAA batteries (150-hour life).

Operating temp: -4 to 122°F (-20 to 50°C).

Included Components

Testo 549i high-pressure gauge

Batteries

Calibration protocol

Quick start guide

Technical Specifications

Pressure measurement
Measuring range -15 to +870 psi / -1 to +60 bar
Accuracy ±0.5 % of full-scale value
Resolution 0.01 psi / 0.01 bar
Probe connection 7 / 16 in. - UNF
Overload rel. (high pressure) +943 psi / +65 bar


General technical data
Weight 5.52 oz. / 156.6 g
Dimensions 5 x 1 x 1 in. / 125 x 32 x 31 mm
Operating temperature -4° to 122 °F / -20 to +50 °C
Housing Plastic
Product colour black/orange
Battery type 3 x AAA
Battery life 150 h
Pressure media CFC, HFC, HCFC, N, H₂O, CO₂
System requirements requires iOS 8.3 or newer; requires Android 4.3 or newer; requires mobile end device with Bluetooth 4.0
requires iOS 11.0 or newer; requires Android 6.0 or newer; requires mobile end device with Bluetooth 4.0
Storage temperature -4° to 140 °F / -20 to +60 °C
