Specifications
Brand Name :
DWYER
Model Number :
MSX-W20-PA
Certification :
CE
MOQ :
1PCS
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
1000 Piece/Pieces per Week negotiable
Delivery Time :
5-8 work days
Packaging Details :
each unit has individual box and all boxes are packed in standard packages or customers requests available
Power Supply :
24VDC
Pressure Range :
-125 TO 125 Pa
Display :
4 Digit LCD
Working Temperature :
-4 To 158°F (-20 To 70°C)
Current Output :
0-1250 ΩMax
Highlight :
MSX-W20-PA Digital Pressure Gauge, LCD Display Digital Pressure Manometer, 4 Digit Industrial Pressure Gauge
Description

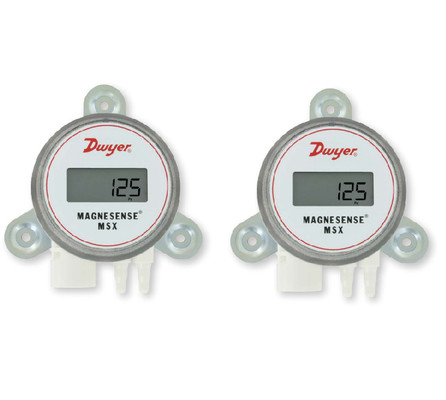

Dwyer Series MSX Pro Magnesense Differential Pressure Transmitter (Model: MSX-W20-PA)
The Dwyer MSX Pro Magnesense Differential Pressure Transmitter is a high-precision device designed for critical building control applications. Building on the legacy of the Series MS2 Magnesense® II, it combines stability with versatile functionality, offering 32 configurable pressure ranges in Pa, mm w.c., or in w.c. The MSX-W20-PA model features a bidirectional pressure range of -125 to 125 Pa, dual voltage/milliamp outputs, and square root extraction for velocity/flow calculations. With its rugged design and CE certification, it ensures reliable performance in demanding environments like clean rooms, air handler units, and VAV systems.
Dwyer MSX-W20-PA Magnesense Differential Pressure Transmitter with Bidirectional Pressure Sensing Square Root Extraction and 4-20mA Current Output
Product Features
  • Bidirectional Pressure Sensing: Measures differential pressure from -125 to 125 Pa, suitable for applications requiring positive/negative pressure monitoring.
  • Dual Output Signals: 4-20 mA current output (2-wire) for control systems. Optional voltage outputs (0-10 V/0-5 V) for signal verification.
  • Square Root Extraction: Converts pressure signals to linear velocity/flow readings, eliminating external calculations.

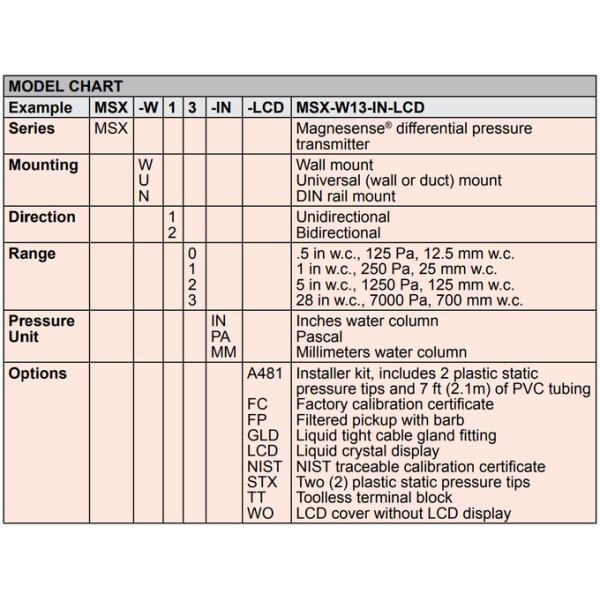

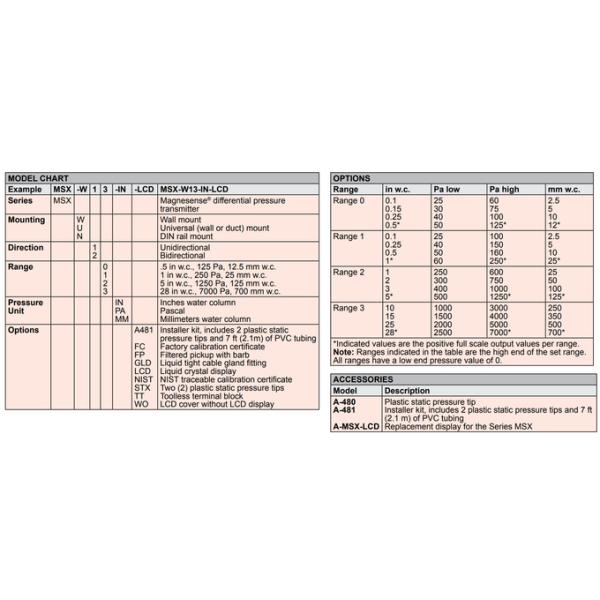

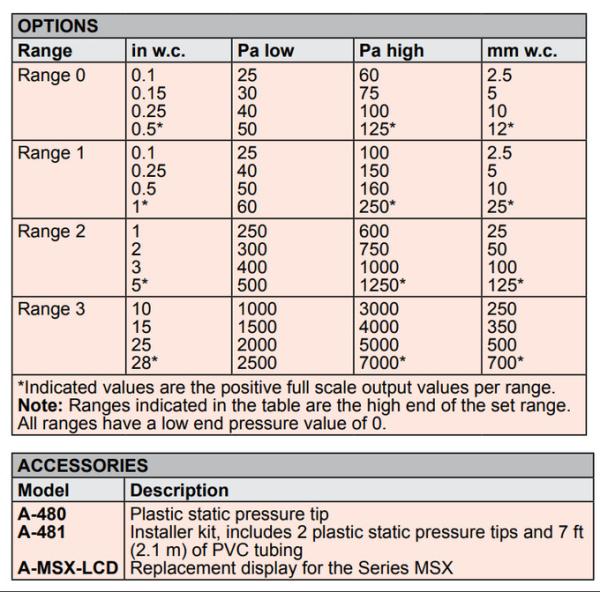

  • Wide Pressure Range Configurability: 32 total ranges (unidirectional/bidirectional) in Pa, mm w.c., or in w.c., adaptable to diverse applications.
  • Robust Environmental Performance: Operating temperature: -4 to 158°F (-20 to 70°C). NEMA 4X (IP66) enclosure option for protection against dust and water.
  • Easy Installation & Calibration: 4-wire removable terminal block for quick wiring. Digital push-button zero/span adjustments; optional 4-digit LCD for real-time readings.
Technical Specifications
Specification Value
Warranty 1 year
Customized support OEM, ODM
Place of Origin USA
Brand Name Dwyer
Model Number MSX-W20-PA
Power supply 24VDC
Range -125 TO 125 Pa
Product Name Differential Pressure Transmitter
Temperature Limits -4 to 158°F (-20 to 70°C)
Output signal 4~20mA
Current output 0-1250 Ω max
Electrical Connections 4-wire
Display (optional) 4 digit LCD
Agency Approvals CE
