KMC-700 Red Oil Differential Pressure Gauge for Aquaculture
KMC-700 Red Oil Differential Pressure Gauge for Aquaculture
KMC-700 Red Oil Differential Pressure Gauge for Aquaculture
KMC-700 Red Oil Differential Pressure Gauge for Aquaculture
KMC-700 Red Oil Differential Pressure Gauge for Aquaculture
KMC-700 Red Oil Differential Pressure Gauge for Aquaculture
KMC-700 Red Oil Differential Pressure Gauge for Aquaculture
KMC-700 Red Oil Differential Pressure Gauge for Aquaculture
Specifications
Brand Name :
KACISE
Model Number :
KMC-700
Certification :
CE
MOQ :
1PCS
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
1000 Piece/Pieces per Week negotiable
Delivery Time :
5-8 work days
Packaging Details :
each unit has individual box and all boxes are packed in standard packages or customers requests available
Product Range :
-10~0-700pa
Temperature Range :
-10℃~ + 60℃
Warranty :
1 Year
Size :
190*150*32MM
Precise Level :
Air And Non-flammable Gases
Highlight :
Aquaculture Red Oil Manometer, 190*150*32MM Negative Pressure Meter, 190*150*32MM gas pressure meter
Description

KMC-700 Red Oil Differential Pressure Gauge for Aquaculture

Product Introduction

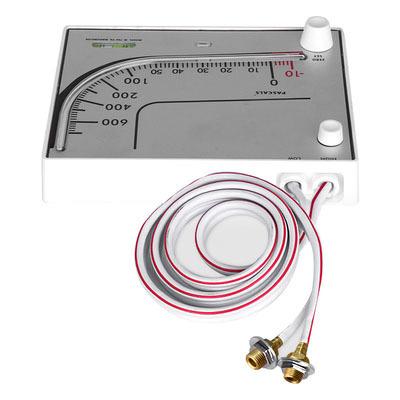

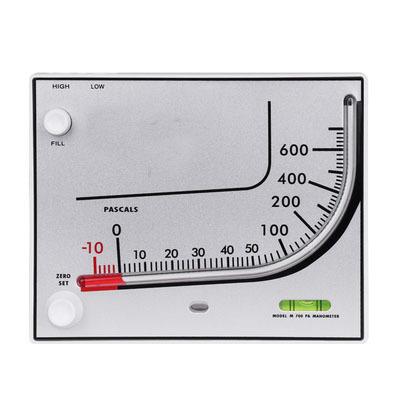

The KMC-700 Red Oil Differential Pressure Gauge is a specialized instrument designed for precise pressure measurement in aquaculture systems, clean rooms, pharmaceutical facilities, and blower applications. Featuring a rugged aluminum frosted panel to resist aging and scale degradation, the gauge uses 30MM fine volatile red oil for clear visibility and leak-free operation. Its upgraded PVC two-color tubing enhances readability, while the compact 190×150×32MM design allows easy installation in tight spaces. With ±3% accuracy, it efficiently monitors positive pressure, negative pressure (vacuum), and differential pressure in critical environments.

KMC-700 Red Oil Differential Pressure Gauge for Aquaculture

Product Features

Specialized Application:

Designed for aquaculture, clean rooms, pharmaceutical plants, and blower pressure monitoring.

Measures positive pressure, negative pressure, and differential pressure.

Accuracy & Durability:

±3% measurement accuracy for reliable pressure readings.

Aluminum frosted panel prevents scale fading and extends service life.

User-Friendly Design:

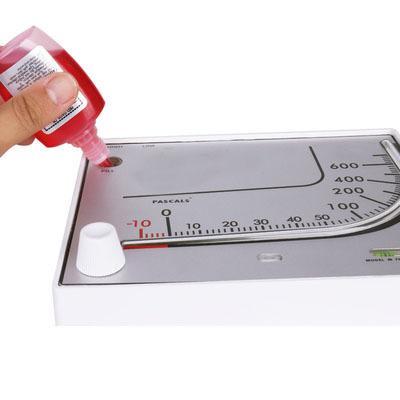

30MM fine volatile red oil for clear, immediate pressure indication.

Twist-to-use mechanism eliminates oil leakage risks.

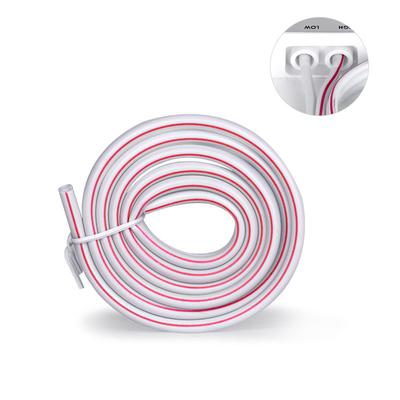

Upgraded PVC two-color tubing for easy visual differentiation of pressure levels.

Easy Calibration & Installation:

Zero adjustment knob for quick calibration.

Wall-mountable design with level bubble for precise horizontal alignment.

Compact Dimensions:

190×150×32MM size suitable for space-constrained environments.

Technical Specs at a Glance

Product model KMC-700
Product name Red oil differential pressure gauge
accuracy ±3%
Precise level Air and non-flammable gases
range of application Breeding, clean room, pharmaceutical factory, blower pressure measurement
Product size 190*150*32MM
