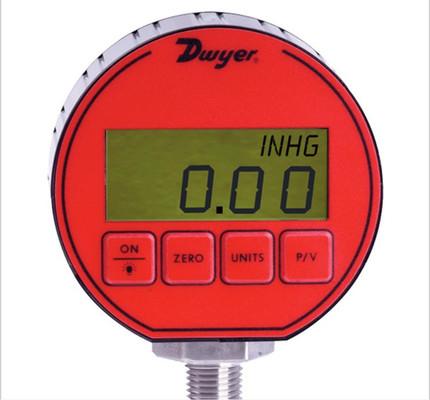

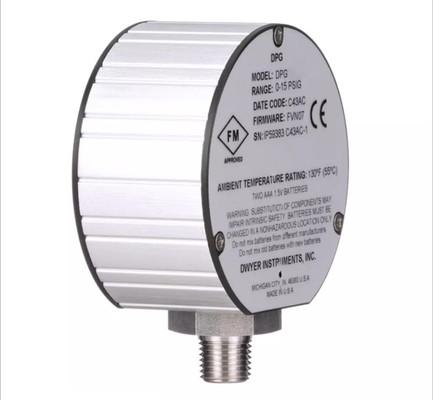

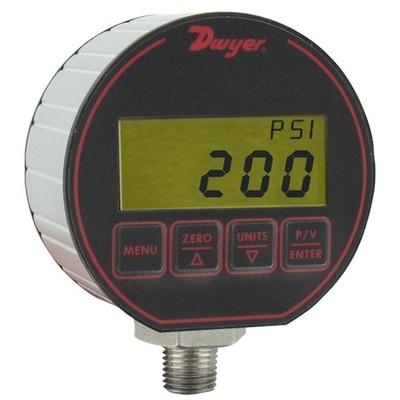

Dwyer Series DPG Digital Pressure Gage
Dwyer Series DPG Digital Pressure Gage
Dwyer Series DPG Digital Pressure Gage
Dwyer Series DPG Digital Pressure Gage
Dwyer Series DPG Digital Pressure Gage
Dwyer Series DPG Digital Pressure Gage
Dwyer Series DPG Digital Pressure Gage
Dwyer Series DPG Digital Pressure Gage
Specifications
Brand Name :
dwyer
Model Number :
DPG-006
MOQ :
1PCS
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
1000 Piece/Pieces per Week negotiable
Delivery Time :
5-8 work days
Packaging Details :
each unit has individual box and all boxes are packed in standard packages or customers requests available
Accuracy :
DPG-000: 0.5% FS; DPG-100: ±0.25% FS; ±1 Least Significant Digit @ 70°F (21°C)
Highlight :
IP66 Digital Pressure Gauge, Digital Pressure Gauge Aluminum Housing, electronic pressure gauge Aluminum Housing
Enclosure Rating :
Designed To Meet NEMA 4/4X (IP66
Wetted Materials :
Type 316L SS.
Certification :
CE
Power Requirements :
(2) AAA Alkaline Batteries, Included, User Replaceable
Pressure Limit :
2x Pressure Range For Models ≤1000 Psi; 5000 Psi For 3000 Psi Range; 7500 Psi For 5000 Psi Range
Description
Dwyer Series DPG Digital Pressure Gage
Key Features
  • High accuracy: ±0.25% FS (DPG-100 series) or ±0.5% FS (DPG-000 series)
  • 4-digit backlit LCD display eliminates parallax errors
  • NEMA 4X (IP66) aluminum enclosure for harsh environments
  • Battery-powered with 2000-hour battery life and auto-shutoff
  • Selectable engineering units for versatile applications
Dwyer Series DPG Digital Pressure Gage Dwyer Series DPG Digital Pressure Gage
Product Overview

The Dwyer Series DPG Digital Pressure Gage is a high-accuracy measuring instrument designed to replace outdated analog gauges. With options for ±0.25% or ±0.5% full-scale accuracy, it features a 4-digit backlit display that eliminates parallax errors for precise readings. The rugged NEMA 4X (IP66) aluminum enclosure makes it ideal for industrial pressure monitoring in harsh environments.

Technical Specifications
Parameter Details
Accuracy ±0.25% FS (DPG-100) / ±0.5% FS (DPG-000)
Pressure Range -14.70 psi to 5000 psi (varies by model)
Display 4-digit LCD, backlit, 0.425" H digits
Housing Anodized aluminum, NEMA 4X (IP66)
Process Connection 1/4" male NPT
Power Supply 2x AAA alkaline batteries (included)
Battery Life 2000 hours (typical)
Temperature Range 0-130°F (-18-55°C)
Weight 8.84 oz (275 g)
Product Attributes
Wetted Materials Type 316L SS
Accuracy DPG-000: 0.5% FS; DPG-100: ±0.25% FS; ±1 Least Significant Digit @ 70°F (21°C)
Enclosure Rating Designed To Meet NEMA 4/4X (IP66)
Pressure Limit 2x Pressure Range For Models ≤1000 Psi; 5000 Psi For 3000 Psi Range; 7500 Psi For 5000 Psi Range
Power Requirements (2) AAA Alkaline Batteries, Included, User Replaceable
Detailed Features
  • High Accuracy: Includes linearity, hysteresis, and repeatability at 70°F (21°C)
  • Parallax-Free Display: 4-digit backlit LCD for clear readings in low-light conditions
  • Versatile Range & Units: Models cover -14.70 psi to 5000 psi with selectable units (psi, kg/cm², bar, kPa, etc.)
  • Rugged Construction: NEMA 4X (IP66) aluminum housing with polycarbonate cover, resistant to dust and water jets
  • Battery Efficiency: 2000-hour life (60 hours continuous use) with auto-shutoff and low-battery indicator
  • Easy Operation: Push-button zero/tare, peak/valley tracking, and unit conversion via simple 4-button keypad
  • Safety Approvals: CE certified; FM approval for intrinsic safety (DPG-100 series) in hazardous areas
