Specifications
Brand Name :
Dwyer
Model Number :
MS-111
MOQ :
1PCS
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
1000 Piece/Pieces per Week negotiable
Delivery Time :
5-8 work days
Packaging Details :
each unit has individual box and all boxes are packed in standard packages or customers requests available
Certification :
CE
Model :
MS-111
Response Time :
300 Msec
Temperature Limits :
0 To 150°F (-18 To 66°C)
Output Signal :
4~20 MA
Display Mode :
Digital Display
Highlight :
MS-111 Differential Pressure Transmitter, Micro Differential Pressure Transmitter, MS-111 differential pressure sensor
Description

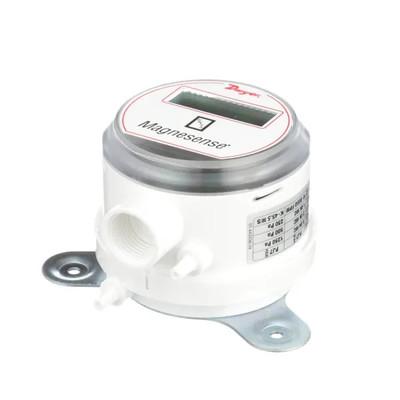

Dwyer MS - 111 Micro Differential Pressure Transmitter

Product Introduction

The Dwyer MS - 111 Micro Differential Pressure Transmitter, part of the MS series, is a highly adaptable solution for precise pressure and wind speed monitoring. Engineered with magnetic sensing technology, it delivers exceptional long - term performance, catering to thousands of pressure and flow measurement needs across diverse applications. Its compact design integrates user - friendly field - adjustable features, making it a go - to choice for building management, HVAC systems, and industrial flow monitoring.

Dwyer MS - 111 Micro Differential Pressure TransmitterDwyer MS - 111 Micro Differential Pressure Transmitter

Product Features

  • Unit Flexibility: Field - selectable between English (e.g., inches of water column) and Metric (e.g., Pascals) units, suiting global operational requirements.
  • Display Customization: Field - upgradeable 4 - digit LCD display, enabling clear, on - site pressure and flow data visualization.
  • Signal Control: Adjustable output signal damping (with optional display), minimizing measurement fluctuations for stable, reliable readings.
  • Flow Compatibility: Capable of square root output selection, ideal for use with pitot tubes and similar flow sensors to accurately measure velocity.
  • High Precision: Delivers ±1% accuracy (for applicable ranges), ensuring dependable data for critical pressure and flow monitoring tasks.
  • Durable Performance: Boasts ±1% FS/year stability, withstanding temperature variations (0 to 150°F / - 18 to 66°C) and pressure limits (1 psi operation, 10 psi burst) for long - lasting, consistent operation.
  • Versatile Compatibility: Works with air, non - combustible, and compatible gases, fitting into multiple industrial and commercial ventilation, HVAC, and building pressure applications.
  • Easy Integration: Offers flexible electrical wiring (4 - 20 mA 2 - wire or 0 - 10 V 3 - wire) and mounting (diaphragm vertical), simplifying installation into existing systems.

Technical Specs at a Glance

Brand name Dwyer
Model MS-111
Output signal 4~20 mA
Display 4 digit LCD.
Service Air and non-combustible compatible gases.
Accuracy ±1% for 0.25" (50 Pa)
Stability ±1% FS/year.
Temperature Limits 0 to 150°F (-18 to 66°C).
Pressure Limits 1 psi maximum, operation; 10 psi, burst.
Power Requirements: 10 to 35 VDC (2-wire); 17 to 36 VDC or isolated 21.6 to 33 VAC (3-wire).
Response Time 300 ms.
Mounting Orientation Diaphragm in vertical position.
Weight 230g
