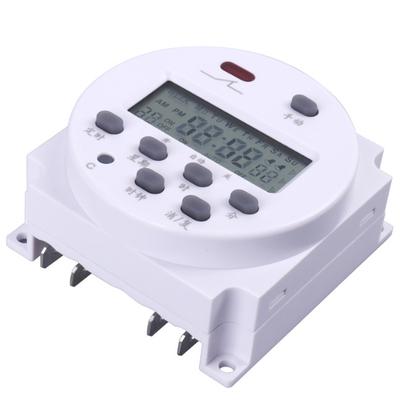

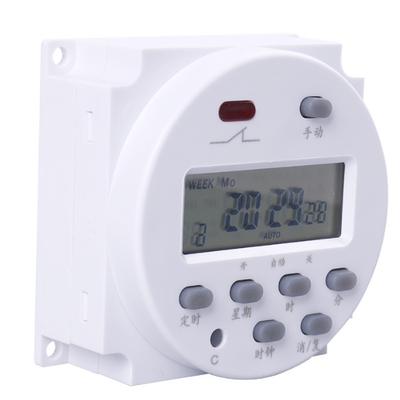

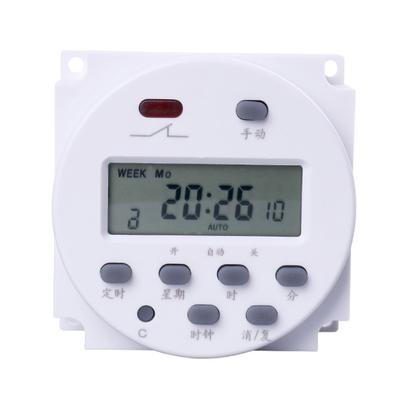

KMC-CN101A Din Rail Weekly Programmable Timer Switch
KMC-CN101A Din Rail Weekly Programmable Timer Switch
KMC-CN101A Din Rail Weekly Programmable Timer Switch
KMC-CN101A Din Rail Weekly Programmable Timer Switch
KMC-CN101A Din Rail Weekly Programmable Timer Switch
KMC-CN101A Din Rail Weekly Programmable Timer Switch
KMC-CN101A Din Rail Weekly Programmable Timer Switch
KMC-CN101A Din Rail Weekly Programmable Timer Switch
Specifications
Programmable :
17times/week Or Day
Brand Name :
KACISE
Model Number :
KMC-CN101A
MOQ :
1PCS
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
1000 Piece/Pieces per Week negotiable
Delivery Time :
5-8 work days
Packaging Details :
each unit has individual box and all boxes are packed in standard packages or customers requests available
Installation Type :
Din Rail
Dimensions :
62x62x32.5mm
Minimum Interval :
1 Minute
Product Name :
Programmable Timer Switch
Warranty :
1 Year
Certification :
CE
Description
KMC-CN101A Din Rail Weekly Programmable Timer Switch
Minimum Interval 1 Minute
Programmable 17times/week Or Day
Dimensions 62x62x32.5mm
Warranty 1 Year
Product Name Programmable Timer Switch
Installation Type Din Rail
Product Introduction

The KMC-CN101A is a versatile din rail-mounted timer switch designed for precise time control in various electrical systems. With support for multiple voltage inputs (12V/24V/110V/220V) and a 16A contact capacity, it enables programmable scheduling for lighting, motors, and equipment. The timer features an LCD display for intuitive setup, a rechargeable internal battery for power failure memory (up to 180 days), and weekly programming capabilities, making it ideal for industrial, commercial, and residential automation applications.

KMC-CN101A Din Rail Weekly Programmable Timer Switch
Product Features
Wide Voltage Compatibility:

Supports input voltages: 12V, 24V, 110V, 220V AC/DC. 16A contact capacity suitable for high-load devices (e.g., motors, lighting systems).

Precision Timing:

Adjustable timing range: 1 minute to 168 hours (1 week). Weekly programmable with up to 172 group settings for complex scheduling needs.

Reliable Memory & Power:

Rechargeable 1.2V/40mA battery preserves settings during power outages (180-day memory). Power consumption: ≤2W for energy efficiency.

Durable Design:

Operating temperature: -10°C to 40°C for reliable performance in diverse environments. Din rail mounting for easy installation in control panels.

Intelligent Control:

8-microprocessor control chip for stable performance and high anti-interference capability. LCD display with intuitive interface for setting time, mode, and schedules.

Technical Specifications
Specification Value
Rated Voltage 12V /24V /110V /220V
Contact Capacity 16A
Power Consumption No more than 2W
Internal Battery 1.2V/40mA (rechargeable)
Dimensions 62x62x32.5mm
Power Failure Memory 180 days
Operating Temperature -10 to +40 °C
