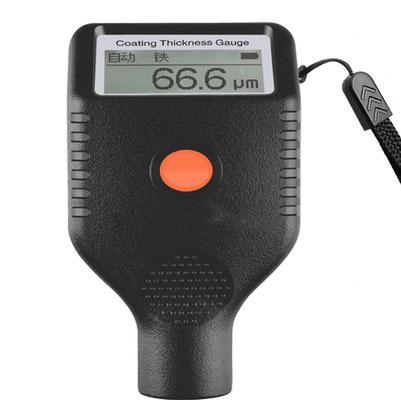

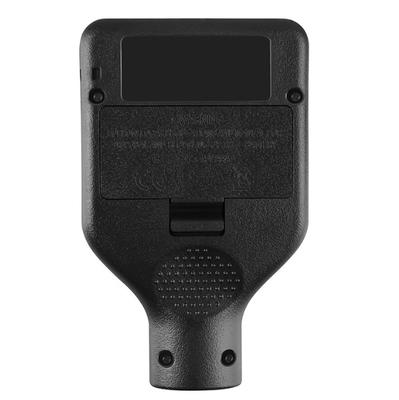

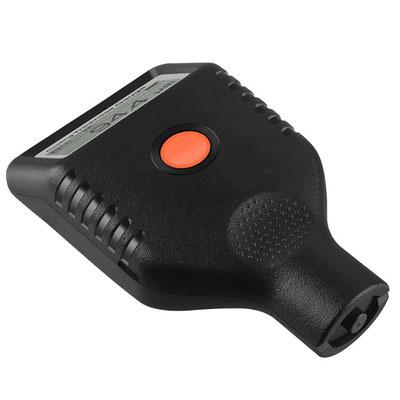

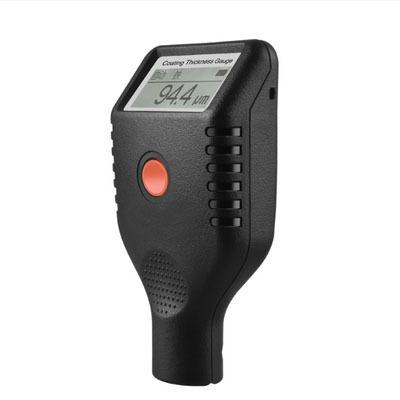

KMC-666 Digital Car Paint Thickness Gauge
KMC-666 Digital Car Paint Thickness Gauge
KMC-666 Digital Car Paint Thickness Gauge
KMC-666 Digital Car Paint Thickness Gauge
KMC-666 Digital Car Paint Thickness Gauge
KMC-666 Digital Car Paint Thickness Gauge
KMC-666 Digital Car Paint Thickness Gauge
KMC-666 Digital Car Paint Thickness Gauge
Specifications
Brand Name :
KACISE
Model Number :
KMC-666
MOQ :
1PCS
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
1000 Piece/Pieces per Week negotiable
Delivery Time :
5-8 work days
Packaging Details :
each unit has individual box and all boxes are packed in standard packages or customers requests available
Certification :
CE
The Accuracy :
0.025
Power :
Battery
Weight :
80g
Model :
KMC-666
Dimensions :
114*53*25mm
Color :
Black
Description

KMC-666 Digital Car Paint Thickness Gauge

Product Introduction

The KMC-666 is a high-precision digital thickness gauge designed for non-destructive measurement of paint, coatings, and films on metal surfaces. With 2.5% accuracy, it efficiently detects paint thickness on ferrous and non-ferrous metals, making it essential for used car inspections, quality control, and manufacturing. The gauge automatically identifies magnetic (iron, steel) and non-magnetic (aluminum, copper) substrates, eliminating the need for manual mode switching. Its compact, battery-powered design (80g, 114×53×25mm) and -20°C to 50°C temperature tolerance ensure reliability in diverse environments, from automotive workshops to industrial facilities.

KMC-666 Digital Car Paint Thickness GaugeKMC-666 Digital Car Paint Thickness Gauge

Product Features

Precision Measurement:

2.5% accuracy for reliable paint thickness detection (0–2000μm range).

Ideal for distinguishing factory paint (100–200μm) from repainted areas (500–1000μm).

Substrate Adaptability:

Auto-identifies magnetic (Fe, Ni) and non-magnetic (Al, Cu) substrates.

Measures non-conductive coatings on metal and non-ferromagnetic coatings on ferromagnetic metals.

Environmental Resistance:

Operates in -20°C–50°C with electrostatic and moisture resistance.

Suitable for harsh workshop conditions and outdoor use.

User-Friendly Design:

Compact, lightweight (80g) with battery power (auto-shutoff for energy saving).

Intuitive operation for quick measurements without complex settings.

Data Management:

Supports multi-point averaging (e.g., 5-point measurement on car doors) for accurate results.

Portable for on-site inspections in automotive, manufacturing, and quality control.

Technical Specs at a Glance

The accuracy 2.50%
power Battery
dimensions 114*53*25mm
weight 80g
model MC-666
Brand MC
Warranty 1 year
Color black
