Series 477AV Handheld Digital Manometer
Series 477AV Handheld Digital Manometer
Series 477AV Handheld Digital Manometer
Series 477AV Handheld Digital Manometer
Series 477AV Handheld Digital Manometer
Series 477AV Handheld Digital Manometer
Series 477AV Handheld Digital Manometer
Series 477AV Handheld Digital Manometer
Specifications
Material :
Consult Factory.
Accuracy :
±0.5% FS, 60 To 78°F (15.6 To 25.6°C)
Gauge :
Differential Pressure Gauges
Pressure Range :
See Chart
Product Name :
Dwyer 477AV-000 Digital Manometer
Brand Name :
Dwyer
Model Number :
477AV-000
MOQ :
1PCS
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
1000 Piece/Pieces per Week negotiable
Delivery Time :
5-8 work days
Packaging Details :
each unit has individual box and all boxes are packed in standard packages or customers requests available
Size :
80MM
Certification :
CE
Description
Series 477AV Handheld Digital Manometer
Accuracy ±0.5% FS, 60 To 78°F (15.6 To 25.6°C)
Material Consult Factory
Pressure Range See Chart
Size 80MM
Product Name Dwyer 477AV-000 Digital Manometer
Gauge Differential Pressure Gauges
Product Overview

The Series 477AV Handheld Digital Manometer is a precision instrument for measuring pressure, air velocity, and flow in HVAC systems and industrial applications. With ±0.5% full-scale accuracy in optimal conditions, it features built-in velocity/flow calculations to eliminate manual errors and includes field calibration capabilities for reliable performance.

Series 477AV Handheld Digital Manometer
Key Features
  • Multi-Parameter Measurement: Measures pressure (in w.c., psi, kPa), air velocity (fpm, m/s), and flow (cfm, m³/h) with auto-calculations
  • High Accuracy: ±0.5% FS at 60-78°F (15.6-25.6°C), ±1.5% FS at 32-104°F (0-40°C)
  • Field Calibration: Adjustable zero/span values and damping function for stable readings

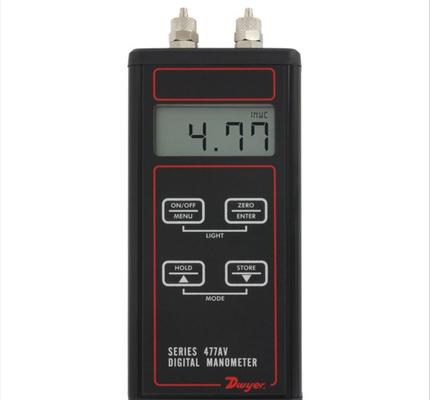

  • Versatile Display: 0.42" 4-digit LCD with selectable units for 12+ pressure units, 6 velocity units, and 3 flow units
  • Portable Design: Lightweight (10.2 oz/289 g) with 9V alkaline battery (150+ hour life)
Technical Specifications
Parameter Details
Model Range Examples 477AV-0: 0-10.00" w.c. / 477AV-4: 0-10.00 psi / 477AV-7: 0-100.00 psi
Accuracy ±0.5% FS (15.6-25.6°C), ±1.5% FS (0-40°C)
Pressure Limits Varies by model (e.g., 477AV-0: ~2 psi burst pressure)
Temperature Range Operating: 0-140°F (-17.8-60°C); Storage: -4-176°F (-20-80°C)
Display 0.42" 4-digit LCD, auto-brightness
Process Connections 1/8" or 3/16" ID tubing (barbed fittings); 1/8" compression fittings (477AV-7/8)
Power Supply 9V alkaline battery (150+ hours typical life)
Approvals CE certified
