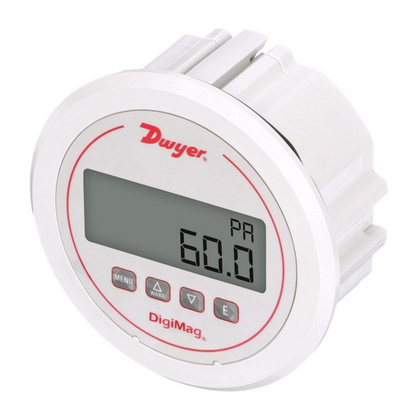

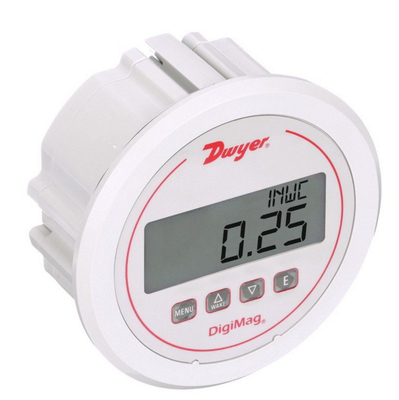

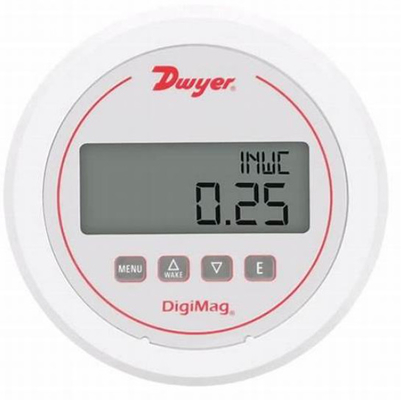

Dwyer DM-1102 DigiMag Digital Differential Pressure Gauge
Dwyer DM-1102 DigiMag Digital Differential Pressure Gauge
Dwyer DM-1102 DigiMag Digital Differential Pressure Gauge
Dwyer DM-1102 DigiMag Digital Differential Pressure Gauge
Dwyer DM-1102 DigiMag Digital Differential Pressure Gauge
Dwyer DM-1102 DigiMag Digital Differential Pressure Gauge
Dwyer DM-1102 DigiMag Digital Differential Pressure Gauge
Dwyer DM-1102 DigiMag Digital Differential Pressure Gauge
Specifications
Brand Name :
DWYER
Model Number :
DM-1102
Certification :
CE
MOQ :
1PCS
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
1000 Piece/Pieces per Week negotiable
Delivery Time :
5-8 work days
Packaging Details :
each unit has individual box and all boxes are packed in standard packages or customers requests available
Current Consumption :
5 MA Maximum
Electrical Connections :
Removable Terminal Block For 16 To 26 AWG
Electrical Entry :
Cable Gland For 0.114 To 0.250" (2.9 To 6.4 Mm) Diameter Cable
Enclosure Rating :
NEMA 4X (IP66)
Accuracy :
±1% FS Including Linearity
Temperature Limits :
0 To 140°F (-18 To 60°C)
Description

Dwyer DM-1102 DigiMag Digital Differential Pressure Gauge

Product Introduction

The Dwyer DM-1102 is a precision digital differential pressure gauge from the DM-1000 series, designed for monitoring air and non-combustible gas pressures in critical environments like hospitals, clean rooms, and temporary facilities. With ±1% FS accuracy and a 4-digit LCD display, it replaces analog gauges with digital reliability, offering selectable Imperial/Metric units and field-programmable settings for pressure, air velocity, or flow. Powered by a 9V battery or 9–24 VDC, it balances portability with versatile deployment.

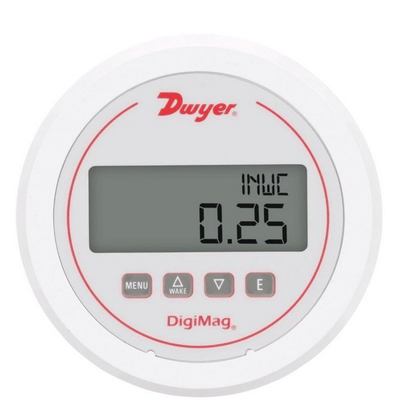

Dwyer DM-1102 DigiMag Digital Differential Pressure Gauge

Product Features

Accuracy & Stability:

±1% FS accuracy (includes linearity) for precise measurements.

±1% FS/year long-term stability for consistent performance.

Display & Units:

4-digit LCD (0.60"H digits) with real-time readings in in w.c., kPa, mBar, etc.

No unit conversion needed; switch between metrics via button controls.

Field Programmability:

Configure for pressure, air velocity, or flow (with K-factor input for pitot tubes).

Set filter maintenance alerts via display flashing at pre-defined thresholds.

Power Versatility:

9V battery (ideal for wireless setups) or 9–24 VDC (for permanent installations).

Low power consumption (5 mA max.) extends battery life in field use.

Durable Design:

Glass-filled plastic housing with NEMA 4X (IP66) rating for dust/water protection.

Operating temp: 0–140°F (-18–60°C) suitable for diverse environments.

Technical Specs at a Glance

Service Air and non-combustible, compatible gases
Wetted Materials Consult factory
Housing Materials Glass filled plastic.
Accuracy ±1% FS including linearity
Temperature Limits 0 to 140°F (-18 to 60°C)
Long Term Stability ±1% FS per year
Display 4-digit LCD (Digits: 0.60"H x 0.33"W)
Power Requirements 9V battery


Model Description
DM-1102 DigiMag®differential digital pressure gage, range 0-0.25" w.c.
DM-1103 DigiMag®differential digital pressure gage, range 0-0.5" w.c.
DM-1104 DigiMag®differential digital pressure gage, range 0-1" w.c.
DM-1105 DigiMag®differential digital pressure gage, range 0-2" w.c.
DM-1107 DigiMag®differential digital pressure gage, range 0-5" w.c.
DM-1108 DigiMag®differential digital pressure gage, range 0-10" w.c.
DM-1109 DigiMag®differential digital pressure gage, range 0-15" w.c.
DM-1110 DigiMag®differential digital pressure gage, range 0-25" w.c.
DM-1111 DigiMag®differential digital pressure gage, range 0-50" w.c.
DM-1112 DigiMag®differential digital pressure gage, range 0-100" w.c.
DM-1122 DigiMag®differential digital pressure gage, range 0.25-0-0.25" w.c.
DM-1123 DigiMag®differential digital pressure gage, range 0.5-0-0.5" w.c.
DM-1124 DigiMag®differential digital pressure gage, range 1-0-1" w.c.
DM-1125 DigiMag®differential digital pressure gage, range 2-0-2" w.c.
DM-1127 DigiMag®differential digital pressure gage, range 5-0-5" w.c.
DM-1128 DigiMag®differential digital pressure gage, range 10-0-10" w.c.
DM-1202 DigiMag®differential digital flow gage, range 0-0.25" w.c.
DM-1203 DigiMag®differential digital flow gage, range 0-0.5" w.c.
DM-1204 DigiMag®differential digital flow gage, range 0-1" w.c.
DM-1205 DigiMag®differential digital flow gage, range 0-2" w.c.
DM-1207 DigiMag®differential digital flow gage, range 0-5" w.c.
DM-1208 DigiMag®differential digital flow gage, range 0-10" w.c.
DM-1209 DigiMag®differential digital flow gage, range 0-15" w.c.
DM-1210 DigiMag®differential digital flow gage, range 0-25" w.c.
DM-1211 DigiMag®differential digital flow gage, range 0-50" w.c.
