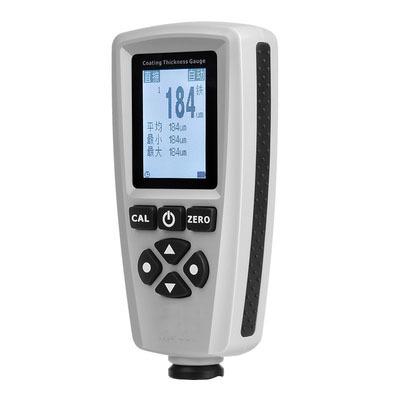

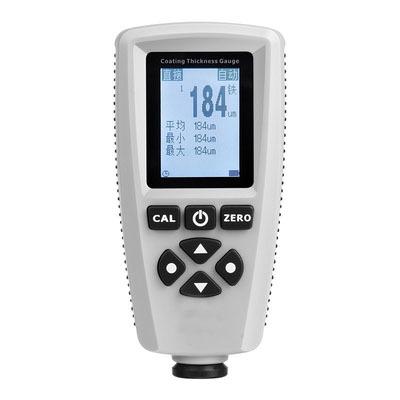

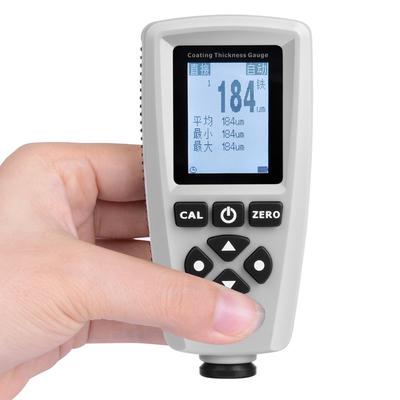

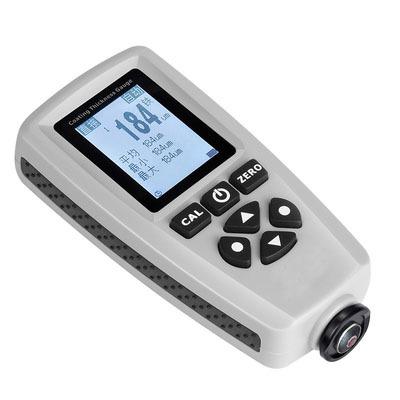

KMC 770 Digital Auto Car Paint Thickness Meter
KMC 770 Digital Auto Car Paint Thickness Meter
KMC 770 Digital Auto Car Paint Thickness Meter
KMC 770 Digital Auto Car Paint Thickness Meter
KMC 770 Digital Auto Car Paint Thickness Meter
KMC 770 Digital Auto Car Paint Thickness Meter
KMC 770 Digital Auto Car Paint Thickness Meter
KMC 770 Digital Auto Car Paint Thickness Meter
Specifications
Model :
KMC-770
Product Name :
Coating Thickness Gauge
Probe Triggering Force :
0.3~0.8N
Brand Name :
KACISE
Measuring Range :
0~2000μm
Model Number :
KMC-770
MOQ :
1PCS
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
1000 Piece/Pieces per Week negotiable
Delivery Time :
5-8 work days
Packaging Details :
each unit has individual box and all boxes are packed in standard packages or customers requests available
Operating Temperature :
-10~50℃
Description
KMC 770 Digital Auto Car Paint Thickness Meter
Product Overview
The KMC 770 is a high-precision coating thickness tester designed for non-destructive measurement of paint, galvanized layers, and plastic films on metal surfaces. It automatically identifies ferromagnetic (iron, nickel, cobalt) and non-ferromagnetic (aluminum, copper) substrates, making it ideal for quality control in automotive, manufacturing, and chemical industries.
KMC 770 Digital Auto Car Paint Thickness Meter
Key Features
  • Dual-Probe Technology: Ruby-tipped probe automatically identifies iron/aluminum substrates for seamless switching between measurements.
  • High Precision: ±(2.5% + 1μm) accuracy with a measurement speed of 2 times/second.
  • Wide Measurement Range: 0-2000μm suitable for both thin films and thick coatings.
  • Environment Resistant: Operates reliably in -10°C to 50°C with red screen warning for out-of-range measurements.
  • User-Friendly: Auto-shutoff, reversible screen, compact size (114*53*25mm) and lightweight (80g).
  • Data Management: Store and transfer measurement data to computers for analysis and reporting.
Technical Specifications
Attribute Value
Brand Name KACISE
Model KMC-770
Measuring Range 0~2000μm
Accuracy ±(2.5%+1μm)
Probe Triggering Force 0.3~0.8N
Minimum Measurement Area Diameter 15 mm
Dimensions 114*53*25mm
Weight 80g
Operating Temperature -10~50℃
Warranty 1 year
Applications
Ideal for second-hand car inspections, material testing, commodity inspection, and quality control in automotive manufacturing, metal fabrication, and industrial coating applications.
