OEM ODM Digital Differential Pressure Gauge 100mm IECEE
OEM ODM Digital Differential Pressure Gauge 100mm IECEE
OEM ODM Digital Differential Pressure Gauge 100mm IECEE
OEM ODM Digital Differential Pressure Gauge 100mm IECEE
OEM ODM Digital Differential Pressure Gauge 100mm IECEE
OEM ODM Digital Differential Pressure Gauge 100mm IECEE
OEM ODM Digital Differential Pressure Gauge 100mm IECEE
OEM ODM Digital Differential Pressure Gauge 100mm IECEE
Specifications
Brand Name :
Dwyer
Model Number :
DM-2000
MOQ :
1PCS
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
1000 Piece/Pieces per Week negotiable
Delivery Time :
5-8 work days
Packaging Details :
each unit has individual box and all boxes are packed in standard packages or customers requests available
Certification :
CE
Accuracy :
±1% F.S. At 70°F.
Connection Location :
Screw-type Terminal Bloc
Dial Diameter :
100
Warranty :
1 Year
Customized Support :
OEM, ODM
Temperature Effect :
20 To 120°F (-6.67 To 48.9°C).
Description

OEM ODM Digital Differential Pressure Gauge 100mm IECEE

Product Introduction

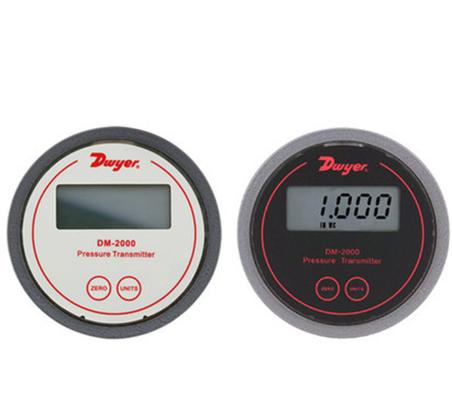

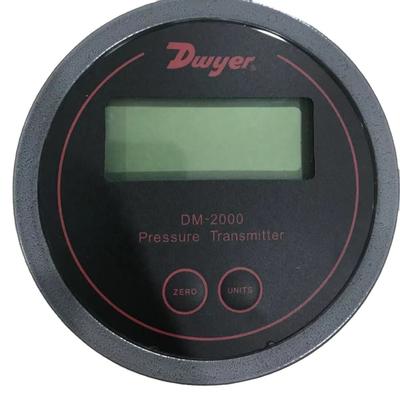

DM-2000 series differential pressure transmitter with digital display is used to monitor the differential pressure of air or other compatible gases, output standard 4-20mA. It is the same size as the 2000 series Magnehelic differential pressure gauge mounting hole, which is easy to replace and upgrade. There are many ranges to choose from, and special ranges can also be customized.


FRP molded pressure joints and housings are used for easy and simple installation. Numeric keys to calibrate zero and span. Optional three-and-a-half LCD digital display for on-site indication, according to different ranges, there are 4 to 6 engineering units for selection.

OEM ODM Digital Differential Pressure Gauge 100mm IECEE

OEM ODM Digital Differential Pressure Gauge 100mm IECEE

Technical Specs at a Glance

Service: Air and non-combustible, compatible gases.
Wetted Materials: Consult Factory.
Accuracy: ±1% FS at 70°F.
Stability: ±1% FS/yr.
Temperature Limits: 20 to 120°F (-6.67 to 48.9°C).
Pressure Limits: 10 psig (0.69 bar).
Thermal Effect: ±0.055% F.S./°F (0.099% F.S./°C).
Power Requirements: 10 to 35 VDC (2 wire).
Output Signal: 4 to 20 mA.
Zero and Span Adjustments: Digital push-button zero and span.
Loop Resistance: DC: 0 to 1250 Ω maximum.
Current Consumption: DC: 38 mA maximum.
Electrical Connections: Screw-type terminal block.
Display: 3.5 digit LCD, 0.7" height.
Process Connections: 1/8" I.D. tubing.
Mounting Orientation: Vertical.
Weight: 4.8 oz (136 g).
