Specifications
Brand Name :
Dwyer
Model Number :
2300-60pa
MOQ :
1PCS
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
1000 Piece/Pieces Per Month
Delivery Time :
5-8 work days
Packaging Details :
Carton
Certification :
CE
Warranty :
1 Year
Customized Support :
OEM, ODM, OBM
Pressure Rating :
15 PSI (1.03 Bar)
Ambient Temperature :
-7 ~ 60 °C
Description

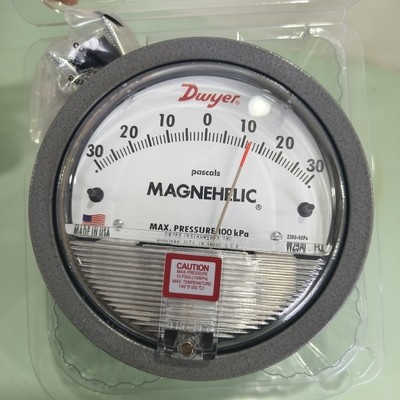

Dwyer Magnehelic 2300-60PA Differential Pressure Gage
The Dwyer Magnehelic 2300-60PA is a high-accuracy differential pressure gage designed for measuring positive, negative, or differential pressures in air and non-corrosive gas systems. With a range of 60-0-60 Pa and ±2% full-scale accuracy, it leverages Dwyer's frictionless magnetic movement to deliver reliable readings without power requirements.
Dwyer Magnehelic 2300-60PA Differential Pressure Gage with 60-0-60 Pa Range, ±2% Accuracy, and IP67 Enclosure
Key Features
Precision Measurement:
  • Range: 60-0-60 Pa with minor divisions for detailed readings
  • Accuracy: ±2% of full scale at 70°F (21.1°C); upgrade to -HA for ±1% accuracy
  • Measures positive, negative (vacuum), or differential pressures in air/non-corrosive gases
Robust Construction:
  • Die-cast aluminum case with gray finish, passing 168-hour salt spray tests
  • IP67 enclosure rating for weatherproofing and protection against dust/water
  • Overpressure relief plug activates at ~25 psig (1.72 bar) to prevent damage
Versatile Installation:
  • 4" dial face with clear acrylic cover for undistorted viewing
  • 1/8" female NPT taps (side/back) for flexible pressure connections
  • Calibrated for vertical mounting; can be re-zeroed for other angles
Functional Flexibility:
  • No power needed, suitable for isolation/hospital settings and temporary units
  • Applications include filter resistance, air velocity (with Pitot tube), and blower pressure
  • Compatible with hydrogen when ordered with Buna-N diaphragm (pressures <35 psi)
Technical Specifications
Pressure Limits -20 in Hg to 15 psig (-0.677 to 1.034 bar); MP/HP options up to 35/80 psig
Temperature Range 20-140°F (-6.67-60°C); -20°F (-28°C) with low-temp option
Weight 1 lb 2 oz (510 g); includes mounting adapters and plugs
Safety & Compliance
Meets RoHS II standards (excluding -SP models). Explosion-proof variants available via Series AT-2000 for ATEX zones.
