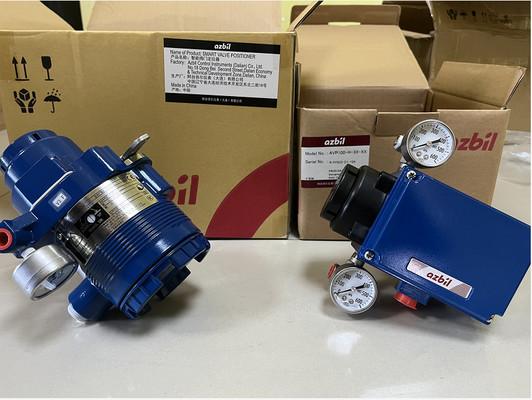

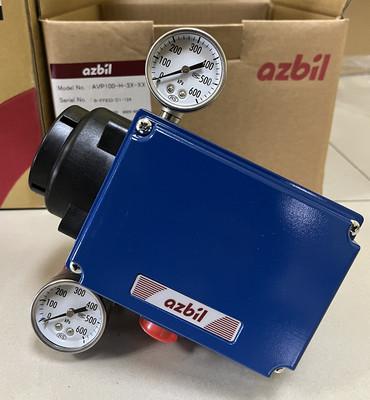

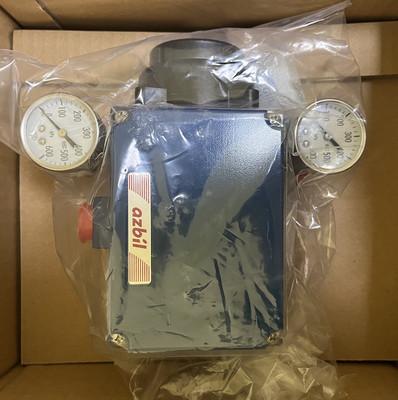

Azbil Smart Valve Positioner AVP100-H-3X-XX

Product Introduction

The Azbil Smart Valve Positioner AVP100-H-3X-XX is a high-performance industrial device designed for precise control of pneumatic valves. With a maximum supply air pressure of 700 kPa and a 4-20 mA input signal, it ensures reliable operation in diverse process control applications.

The positioner features an auto-setup function for fully automatic actuator configuration and valve zero/span adjustment, enabling quick on-site commissioning via internal buttons. Its single-model versatility allows configuration for split-range inputs, various flow characteristics, and single/double-acting actuators, eliminating the need for part replacements.

• Auto-Setup Functionality:
  Fully automatic configuration program to define actuator parameters and adjust valve zero/span. Initiated via internal buttons for rapid on-site adjustments, reducing commissioning time.
• Single-Model Versatility:
  Configurable for multiple specifications without part replacements. Adaptable to split-range input ranges (customizable per application).
• Flexible Flow Characteristics:
  Selectable flow curves: Linear, Equal Percentage (EQ%), Quick Opening, or user-defined custom characteristics.
• Actuator Compatibility:
  Supports single-acting and double-acting actuators (reversing relay optional for double-acting setups).
• Precision Control:
  4-20 mA input signal for seamless integration with industrial control systems. High supply air pressure (700 kPa max.) for reliable valve actuation.
• User-Friendly Operation:
  Intuitive internal button interface for on-the-fly adjustments.
• Industrial Robustness:
  Engineered for durability in demanding process control environments.
