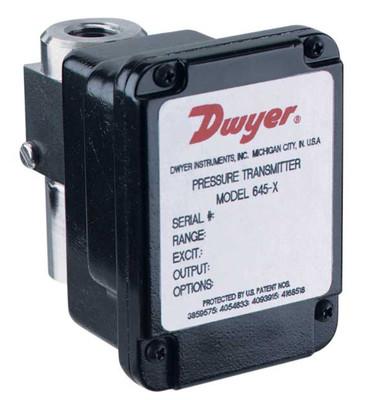

Dwyer Series 645 Wet/Wet Differential Pressure Transmitter (645-x)
Dwyer Series 645 Wet/Wet Differential Pressure Transmitter (645-x)
Dwyer Series 645 Wet/Wet Differential Pressure Transmitter (645-x)
Dwyer Series 645 Wet/Wet Differential Pressure Transmitter (645-x)
Dwyer Series 645 Wet/Wet Differential Pressure Transmitter (645-x)
Dwyer Series 645 Wet/Wet Differential Pressure Transmitter (645-x)
Dwyer Series 645 Wet/Wet Differential Pressure Transmitter (645-x)
Dwyer Series 645 Wet/Wet Differential Pressure Transmitter (645-x)
Specifications
Brand Name :
Dwyer
Model Number :
645-4
MOQ :
1PCS
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
1000 Piece/Pieces per Week negotiable
Delivery Time :
5-8 work days
Packaging Details :
each unit has individual box and all boxes are packed in standard packages or customers requests available
Service :
Compatible Gases Or Liquids On Both Pressure And Reference Sides.
Wetted Materials :
17-4 PH Stainless Steel, 300 Series Stainless Steel, Fluoroelastomer And Silicone O-rings And Bleed Screw Seals.
Accuracy :
±0.25% FS (RSS)
Output Signal :
4 To 20 MA, 2-wire
Loop Resistance :
0 To 1000Ω.
Weight :
0.4g
Description

Dwyer Series 645 Wet/Wet Differential Pressure Transmitter (645-x)

Product Introduction

The Dwyer Series 645 Wet/Wet Differential Pressure Transmitter is a high-precision instrument designed for measuring differential pressure in compatible gases and liquids. Featuring a quick-response capacitance sensor, it delivers a 4–20 mA output proportional to pressure changes with ±0.25% accuracy. The 2-wire design simplifies installation, while bleed ports in the optional 3-valve manifold allow air elimination for reliable readings. Ideal for process control, filter monitoring, HVAC systems, and liquid level measurement, this transmitter combines rugged performance with ease of maintenance for industrial applications.

Dwyer Series 645 Wet/Wet Differential Pressure Transmitter (645-x)Dwyer Series 645 Wet/Wet Differential Pressure Transmitter (645-x)

Product Features

High-Accuracy Measurement:

±0.25% full-scale accuracy ensures precise differential pressure monitoring.

Capacitance sensor offers fast response to pressure changes.

2-Wire Design:

Simplifies wiring and reduces installation costs in industrial setups.

Wet/Wet Compatibility:

Suitable for both gas and liquid media on pressure and reference ports.

Versatile Applications:

Process control, filter condition monitoring, refrigeration equipment, pump speed control, HVAC, and liquid level measurement.

Optional 3-Valve Manifold:

Enables easy installation and maintenance.

Bleed ports eliminate air from lines and pressure cavities for accurate readings.

Reliable Performance:

Robust construction for long-term use in industrial environments.


Models

Model Description
645-0 Wet/wet differential pressure transmitter, range 0-1 psid.
645-0-3V Wet/wet differential pressure transmitter with 3-valve manifold assembly, range 0-1 psid.
645-1 Wet/wet differential pressure transmitter, range 0-2 psid.
645-1-3V Wet/wet differential pressure transmitter with 3-valve manifold assembly, range 0-2 psid.
645-10 Wet/wet differential pressure transmitter, range ±0.5 psid.
645-10-3V Wet/wet differential pressure transmitter with 3-valve manifold assembly, range ±0.5 psid.
645-11 Wet/wet differential pressure transmitter, range ±1 psid.
645-11-3V Wet/wet differential pressure transmitter with 3-valve manifold assembly, range ±1 psid.
645-12 Wet/wet differential pressure transmitter, range ±2.5 psid.
645-12-3V Wet/wet differential pressure transmitter with 3-valve manifold assembly, range ±2.5 psid.
645-13 Wet/wet differential pressure transmitter, range ±5 psid.
645-13-3V Wet/wet differential pressure transmitter with 3-valve manifold assembly, range ±5 psid.
645-14 Wet/wet differential pressure transmitter, range ±10 psid.
645-14-3V Wet/wet differential pressure transmitter with 3-valve manifold assembly, range ±10 psid.
645-15 Wet/wet differential pressure transmitter, range ±25 psid.
645-15-3V Wet/wet differential pressure transmitter with 3-valve manifold assembly, range ±25 psid.
645-16 Wet/wet differential pressure transmitter, range ±50 psid.
645-16-3V Wet/wet differential pressure transmitter with 3-valve manifold assembly, range ±50 psid.
645-2 Wet/wet differential pressure transmitter, range 0-5 psid.
645-2-3V Wet/wet differential pressure transmitter with 3-valve manifold assembly, range 0-5 psid.
645-3 Wet/wet differential pressure transmitter, range 0-10 psid.
645-3-3V Wet/wet differential pressure transmitter with 3-valve manifold assembly, range 0-10 psid.
645-4 Wet/wet differential pressure transmitter, range 0-25 psid.
645-4-3V Wet/wet differential pressure transmitter with 3-valve manifold assembly, range 0-25 psid.
645-5 Wet/wet differential pressure transmitter, range 0-50 psid.
645-5-3V Wet/wet differential pressure transmitter with 3-valve manifold assembly, range 0-50 psid.
645-6 Wet/wet differential pressure transmitter, range 0-100 psid.
645-6-3V Wet/wet differential pressure transmitter with 3-valve manifold assembly, range 0-100 psid.
