Dwyer MS-111-LCD Magnesense Differential Pressure Transmitter

Product Introduction

The Dwyer MS-111-LCD Magnesense Differential Pressure Transmitter is a versatile, cost-effective solution for monitoring pressure and airflow in industrial applications. Featuring selectable ranges (1, 2, or 5 in w.c./250, 500, 1250 Pa) and a 4–20 mA output, it combines precision measurement with field-upgradable LCD display for real-time readings. Leveraging Magnesense magnetic induction technology, the transmitter offers long-term reliability, adjustable damping (0.5–15 sec), and optional square root output for pitot tube applications. Ideal for HVAC, clean rooms, and airflow monitoring, it ensures accurate performance across a temperature range of -18 to 66°C (0 to 150°F).

Product Features

Precision Measurement & Range Flexibility:

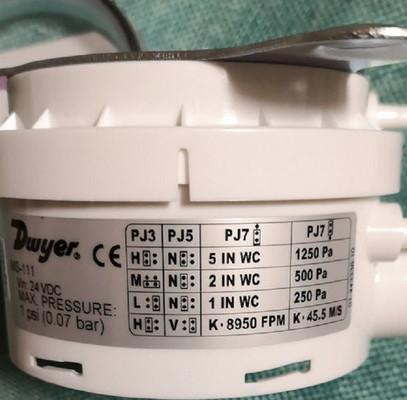

Selectable differential pressure ranges: 1 in w.c. (250 Pa), 2 in w.c. (500 Pa), 5 in w.c. (1250 Pa).

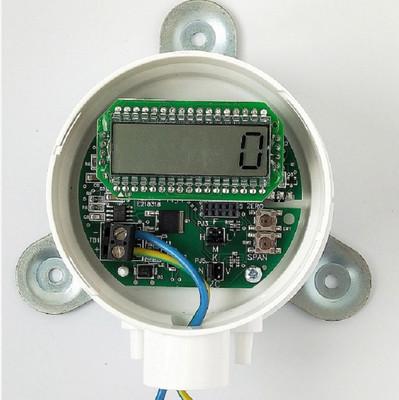

4–20 mA output with digital push-button zero/span adjustments for field calibration.

Magnesense Technology:

Magnetic induction design ensures long-term stability and resistance to drift.

Suitable for air and non-combustible gas applications (wetted materials available on request).

User-Friendly Interface:

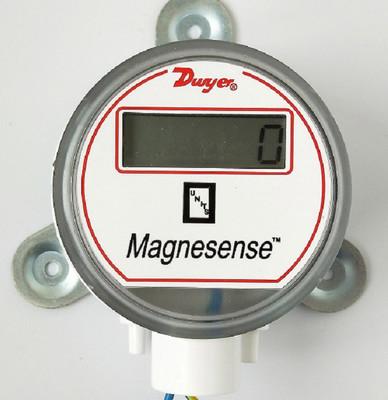

Field-upgradable LCD display shows pressure readings in inches water column or Pascal.

LED indicators for power and output status.

Adjustable Performance:

Damping time constant: 0.5–15 sec (95% response in 1.5–45 sec).

Optional square root output for flow calculations with pitot tubes.

Robust Construction:

Operating temperature: -18 to 66°C (0 to 150°F); CE certified.

Compact design (0.23 kg net weight) for space-saving wall mounting.

Application Versatility:

Ideal for filter monitoring, air velocity measurement, and clean room pressure control.

ATEX explosion-proof options (AT2MS, AT2605, 268) available for hazardous environments.
