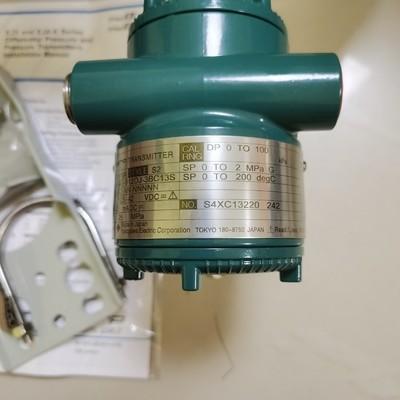

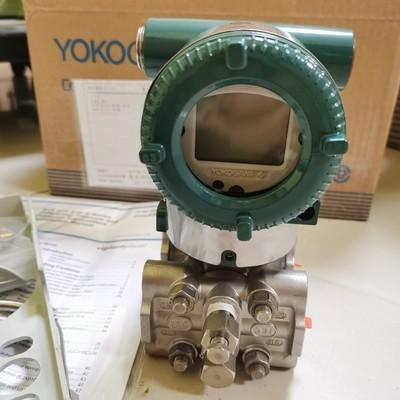

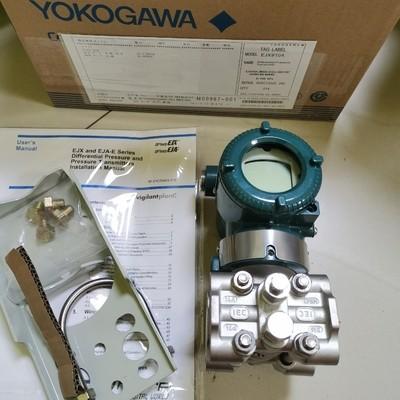

Yokogawa EJX910A Multivariable Pressure Transmitter
Yokogawa EJX910A Multivariable Pressure Transmitter
Yokogawa EJX910A Multivariable Pressure Transmitter
Yokogawa EJX910A Multivariable Pressure Transmitter
Yokogawa EJX910A Multivariable Pressure Transmitter
Yokogawa EJX910A Multivariable Pressure Transmitter
Yokogawa EJX910A Multivariable Pressure Transmitter
Yokogawa EJX910A Multivariable Pressure Transmitter
Specifications
Supply :
10.5-42 V Dc
Burst Pressure Limits :
69 MPa (10000 Psi)
Brand Name :
Yokogawa
Model Number :
EJX910A
MOQ :
1PCS
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
1000 Piece/Pieces per Week negotiable
Delivery Time :
5-8 work days
Packaging Details :
each unit has individual box and all boxes are packed in standard packages or customers requests available
MWP :
25 MPa
Warranty :
1 Year
Protocol Type :
Hart/FOUNDATION Fieldbus /Modbus
Output Signal :
4~20mADC
Certification :
CE
Description
Yokogawa EJX910A Multivariable Pressure Transmitter
The Yokogawa EJX910A is a high-performance multivariable transmitter designed for precise measurement of differential pressure, static pressure, and process temperature in industrial applications. Leveraging single-crystal silicon resonant sensor technology, it offers exceptional accuracy (±0.04% for differential pressure) and supports multiple protocols (HART, FOUNDATION Fieldbus, Modbus). Ideal for mass flow measurement in liquid, gas, or steam systems, the EJX910A provides fully compensated readings and integrates with FDT/DTM software for seamless configuration. Part of Yokogawa's OpreX Field Instruments family, it meets SIL 2/3 safety standards and delivers reliability in demanding processes.
Attribute Value
Warranty 1 Year
Supply 10.5-42 V Dc
MWP 25 MPa
Output Signal 4~20mADC
Protocol Type Hart/FOUNDATION Fieldbus /Modbus
Burst Pressure Limits 69 MPa (10000 Psi)
Yokogawa EJX910A Multivariable Pressure Transmitter
Yokogawa EJX910A Multivariable Pressure Transmitter
Product Features
  • Mass Flow Measurement Capability
    • Supports primary devices: Orifice, Nozzle, Venturi, Multiport Averaging Pitot (HART7), and Cone meters
    • ±1.0% mass flow rate accuracy (for uncalibrated differential producers)
    • Mass flow totalizer with ±1.0% accuracy and pulse/contact output
    • TÜV SIL 2/3 certified for safety-critical applications
  • Multi-Sensing Technology
    • Differential Pressure: ±0.04% accuracy
    • Static Pressure: ±0.1% accuracy
    • Process Temperature: ±0.9°F (±0.5°C) accuracy
    • Single sensor outputs three parameters, reducing installation costs
  • Protocol & Connectivity
    • HART 7, FOUNDATION Fieldbus, and RS485 Modbus protocols
    • 4-20 mA DC output (HART type) with digital communication
    • FDT/DTM compliant for easy configuration via FSA120 (FlowNavigator)
  • Robust Design
    • Maximum working pressure (MWP): 25 MPa (3626 psi)
    • Burst pressure: 69 MPa (10,000 psi)
    • Operating temperature: -40 to 85°C (-40 to 185°F)
    • IP66/68 protection and corrosion-resistant materials
Product Specifications
Item Value
Warranty 1 Year
Customized support OEM, ODM
Place of Origin Japan
Brand Name Yokogawa
Model Number EJX910A
Style S2
Supply 10.5-42 V dc
MWP 25 MPa
Output signal 4~20mADC
Protocol type Hart/FOUNDATION Fieldbus /Modbus
Burst Pressure Limits 69 MPa (10000 psi)
Display LCD
Ambient Temperature -40 to 85°C (-40 to 185°F)
Ambient Humidity 0 to 100% RH
Load 0 to 1335Ω
