Dwyer ADPS-03-2-N Adjustable Differential Pressure Switch with SPDT Switch Type NEMA 13 Enclosure and Dual-Scale Calibration
Dwyer ADPS-03-2-N Adjustable Differential Pressure Switch with SPDT Switch Type NEMA 13 Enclosure and Dual-Scale Calibration
Dwyer ADPS-03-2-N Adjustable Differential Pressure Switch with SPDT Switch Type NEMA 13 Enclosure and Dual-Scale Calibration
Dwyer ADPS-03-2-N Adjustable Differential Pressure Switch with SPDT Switch Type NEMA 13 Enclosure and Dual-Scale Calibration
Dwyer ADPS-03-2-N Adjustable Differential Pressure Switch with SPDT Switch Type NEMA 13 Enclosure and Dual-Scale Calibration
Dwyer ADPS-03-2-N Adjustable Differential Pressure Switch with SPDT Switch Type NEMA 13 Enclosure and Dual-Scale Calibration
Dwyer ADPS-03-2-N Adjustable Differential Pressure Switch with SPDT Switch Type NEMA 13 Enclosure and Dual-Scale Calibration
Dwyer ADPS-03-2-N Adjustable Differential Pressure Switch with SPDT Switch Type NEMA 13 Enclosure and Dual-Scale Calibration
Specifications
Brand Name :
Dwyer
Model Number :
ADPS-03-2-N
Certification :
CE
MOQ :
1PCS
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
1000 Piece/Pieces per Week negotiable
Delivery Time :
5-8 work days
Packaging Details :
each unit has individual box and all boxes are packed in standard packages or customers requests available
Max. Working Pressure :
10 KPa
Temperature :
-4 To 185 F (-20 To 85 C)
Switch Type :
Single-pole Double-throw (SPDT)
Electrical Connections :
Push-on Screw Terminals
Process Connections :
7.94 Mm
Enclosure Rating :
NEMA 13, IP54
Description
Dwyer ADPS-03-2-N Adjustable Differential Pressure Switch
Product Introduction

The Dwyer ADPS-03-2-N Adjustable Differential Pressure Switch is a versatile solution for precise pressure, vacuum, and differential pressure monitoring in industrial and commercial systems. Engineered with a dual-scaled adjustment knob (inches water column and pascals), this switch enables intuitive pressure setting without a separate gauge, streamlining installation and on-site adjustments.

Product Features

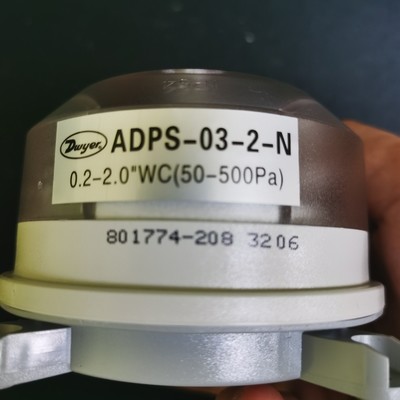

  • Adjustable Pressure Range: 0.2-2.0 in. WC (50-500 Pa), suitable for low to medium pressure applications
  • Dual-Scale Calibration: Direct adjustment in both in. WC and Pa for quick, tool-free configuration
  • Durable Construction: Silicone diaphragm and PA 6.6 body ensure resistance to wear, ideal for air and noncombustible gases
  • Compact Design: NEMA 13/IP54-rated enclosure (dust-tight and splash-proof) fits tight HVAC spaces
  • Reliable Switching: SPDT (single-pole double-throw) contact with 250 VAC/1.5A (resistive) rating for industrial compatibility

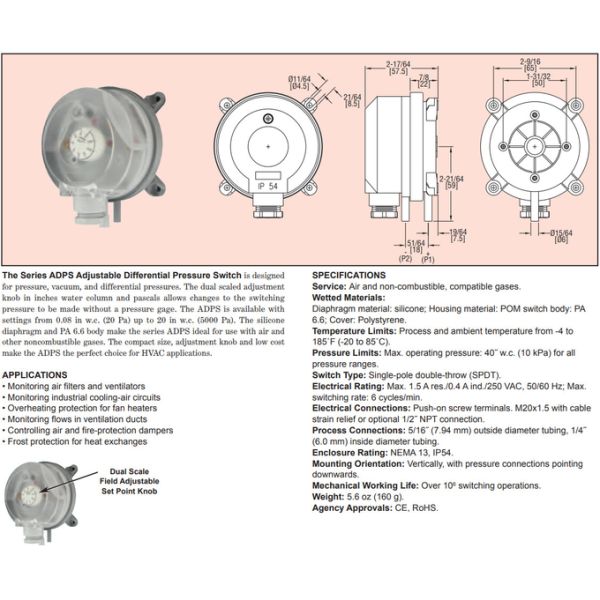

Technical Specifications
Certification CE
Place of Origin EU
Brand Name Dwyer
Model Number ADPS-03-2-N
Max. Working Pressure 10 kPa
Temperature -4 to 185 F (-20 to 85 C)
Switch type Single-pole double-throw (SPDT)
Electrical Connections Push-on screw terminals
Process Connections 7.94 mm
Enclosure Rating NEMA 13, IP54
Weight 5.6 oz (160 g)
Color White
Contact rating 250VAC/1.5A(0.4A)
Mounting position Vertical
Condition 100% Original
