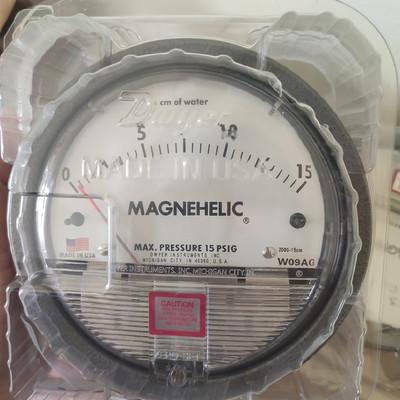

Dwyer Series 2000 Magnehelic Differential Pressure Gauge (0–15 cm w.c.)
Dwyer Series 2000 Magnehelic Differential Pressure Gauge (0–15 cm w.c.)
Dwyer Series 2000 Magnehelic Differential Pressure Gauge (0–15 cm w.c.)
Dwyer Series 2000 Magnehelic Differential Pressure Gauge (0–15 cm w.c.)
Dwyer Series 2000 Magnehelic Differential Pressure Gauge (0–15 cm w.c.)
Dwyer Series 2000 Magnehelic Differential Pressure Gauge (0–15 cm w.c.)
Specifications
Weight :
0.55kg
Brand Name :
Dwyer
Model Number :
0-15cm
MOQ :
1PCS
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
1000 Piece/Pieces per Week negotiable
Delivery Time :
5-8 work days
Packaging Details :
each unit has individual box and all boxes are packed in standard packages or customers requests available
Highlight :
15cm Magnehelic Differential Pressure Gauge, Dwyer 2000 Magnehelic Differential Pressure Gauge, 2000 dwyer magnehelic pressure gauge
Certification :
CE
Temperature Limits :
20 To 140°F
Size :
114.3*139.7mm
Accuracy :
±2% Of FS
Connection :
1/8 NPT
Description
Dwyer Series 2000 Magnehelic Differential Pressure Gauge (0–15 cm w.c.)
Key Features
15cm Magnehelic Differential Pressure Gauge Dwyer 2000 Magnehelic Differential Pressure Gauge 2000 dwyer magnehelic pressure gauge
Attribute Value
Connection 1/8 NPT
Weight 0.55kg
Temperature Limits 20 To 140°F
Accuracy ±2% Of FS
Size 114.3*139.7mm
Dwyer Series 2000 Magnehelic Differential Pressure Gauge (0–15 cm w.c.)
Product Description

The Dwyer Series 2000 Magnehelic Differential Pressure Gauge (0-15 cm water column) is a precision analog instrument designed to measure pressure differences in low- to medium-pressure systems. Engineered with a rugged die-cast aluminum housing, it delivers ±2% full-scale accuracy for reliable monitoring of air and non-corrosive gas pressures.

Product Features
  • Accurate Pressure Measurement: 0-15 cm w.c. range with ±2% full-scale accuracy at 70°F (21.1°C). Clear analog dial with undistorted plastic face for easy reading from a distance.
  • Rugged Construction: Die-cast aluminum case and bezel with acrylic cover, coated gray to withstand 168-hour salt spray tests. IP67 enclosure rating for protection against dust and water immersion.
  • Quick Response Design: Patented bellows sensing elements provide immediate reaction to pressure changes, eliminating assessment delays.
  • Versatile Installation: 1/8 NPT female process connections for easy integration into pipe systems. Mounting orientation: diaphragm in vertical position (other orientations available on request).
  • Wide Operational Range: Temperature tolerance: 20-140°F (-6.67-60°C); optional low-temperature model for -20°F (-28°C). Pressure limits: -20 in Hg to 15 psig (-0.677 to 1.034 bar); MP/HP options for higher pressure ratings.
  • Low Maintenance: Relief plug activates at ~25 psig (1.72 bar) to protect against overpressure. Long service life with minimal downtime due to high-quality components.
Connection 1/8 NPT
Weight 0.55kg
Temperature Limits 20 to 140°F
Accuracy ±2% of FS
Size 114.3*139.7mm
