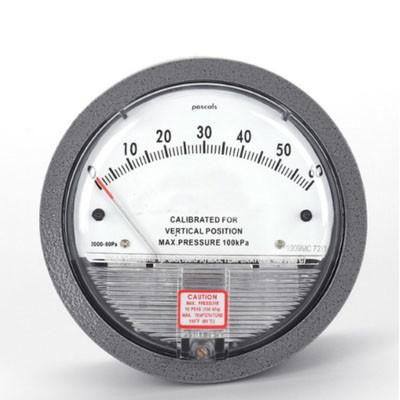

2000 Series Magnehelic Differential Pressure Gauge (2000-60 Pa, Positive/Negative Pressure)
2000 Series Magnehelic Differential Pressure Gauge (2000-60 Pa, Positive/Negative Pressure)
2000 Series Magnehelic Differential Pressure Gauge (2000-60 Pa, Positive/Negative Pressure)
2000 Series Magnehelic Differential Pressure Gauge (2000-60 Pa, Positive/Negative Pressure)
2000 Series Magnehelic Differential Pressure Gauge (2000-60 Pa, Positive/Negative Pressure)
2000 Series Magnehelic Differential Pressure Gauge (2000-60 Pa, Positive/Negative Pressure)
2000 Series Magnehelic Differential Pressure Gauge (2000-60 Pa, Positive/Negative Pressure)
2000 Series Magnehelic Differential Pressure Gauge (2000-60 Pa, Positive/Negative Pressure)
Specifications
Brand Name :
KACISE
Model Number :
KMC-2000 Series
MOQ :
1PCS
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
1000 Piece/Pieces per Week negotiable
Delivery Time :
5-8 work days
Packaging Details :
each unit has individual box and all boxes are packed in standard packages or customers requests available
Certification :
CE
Material :
Cast Aluminium
Connection :
1/8 NPT
Accuracy :
±2.5% Of FS
Ambient Temperature :
-7 To 60 ℃
Type :
Differential Pressure Gauge
Rating Pressure :
-68 To 100 Kpa
Description

2000 Series Magnehelic Differential Pressure Gauge (2000-60 Pa, Positive/Negative Pressure)

Product Introduction

The KMC-2000 Series Magnehelic Differential Pressure Gauge (2000-60 Pa) is a versatile instrument designed for precise measurement of low differential pressures in air and non-corrosive gas systems. With an accuracy of ±2% of full scale (up to ±1% with the –HA high-accuracy option), it quickly indicates positive, negative (vacuum), or differential pressures. The gauge features a rugged cast aluminum housing with an IP67 weatherproof rating, resisting shock, vibration, and overpressure. Ideal for industrial and commercial applications, it offers 81 models and 27 options, including a mirrored scale and calibration certificate for the –HA variant.

Product Features

Precision Measurement:

0–60 Pa range with ±2% full-scale accuracy (±1% with –HA option).

Frictionless Magnehelic movement for drift-free, quick-response readings.

Rugged Construction:

Cast aluminum housing with IP67 rating for dust/water protection.

Withstands -68 to 100 kPa pressure and -7 to 60°C ambient temperature.

High-Visibility Design:

Undistorted plastic face for clear readings from a distance.

Optional mirrored scale (–HA) reduces parallax error.

Application Versatility:

Suits filter monitoring, air velocity (with Pitot tube), clean room pressure, and HVAC systems.

Reliability & Safety:

Overpressure relief plug (activates at ~25 psig for standard models).

1-year warranty and OEM/ODM customization support.

Easy Installation:

1/8" NPT/PT/G/M thread connections for flexible system integration.

item value
Warranty 1 Year
Customized support OEM, ODM
Place of Origin China

Zhejiang
Brand Name MC
Model Number 2000 Series
Type Differential Pressure Gauge
Material Cast Aluminium
Medium Air and non-corrosive gases
Ambient temperature -7 to 60 ℃
Rating pressure -68 to 100 Kpa
Weight 550 g
Connection 1/8"
Thread 1/2/ 1/4/ 1/8PT/NPT/G/M
