Dwyer Series 2000 Magnehelic Differential Pressure Gauge (0–60 in w.c.)
Dwyer Series 2000 Magnehelic Differential Pressure Gauge (0–60 in w.c.)
Dwyer Series 2000 Magnehelic Differential Pressure Gauge (0–60 in w.c.)
Dwyer Series 2000 Magnehelic Differential Pressure Gauge (0–60 in w.c.)
Dwyer Series 2000 Magnehelic Differential Pressure Gauge (0–60 in w.c.)
Dwyer Series 2000 Magnehelic Differential Pressure Gauge (0–60 in w.c.)
Dwyer Series 2000 Magnehelic Differential Pressure Gauge (0–60 in w.c.)
Dwyer Series 2000 Magnehelic Differential Pressure Gauge (0–60 in w.c.)
Specifications
Brand Name :
Dwyer
Model Number :
2060
MOQ :
1PCS
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
1000 Piece/Pieces per Week negotiable
Delivery Time :
5-8 work days
Packaging Details :
each unit has individual box and all boxes are packed in standard packages or customers requests available
Certification :
CE
Connection :
1/8 NPT
Weight :
0.55kg
Temperature Limits :
20 To 140°F
Accuracy :
±2% Of FS
Size :
114.3*139.7mm
Highlight :
2000 Differential Pressure Gauge Magnehelic, 60 Inch Differential Pressure Gauge Magnehelic, 2000 dwyer magnehelic pressure gauge
Description

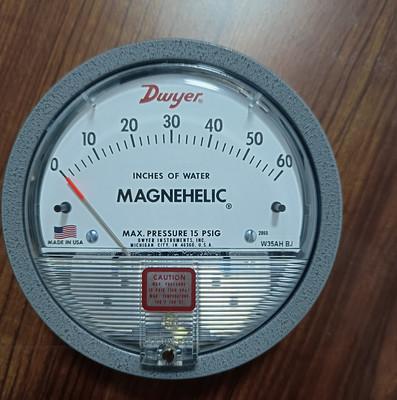

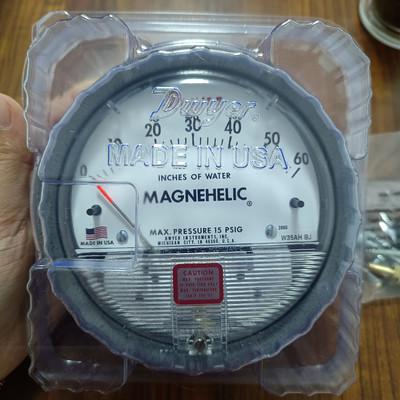

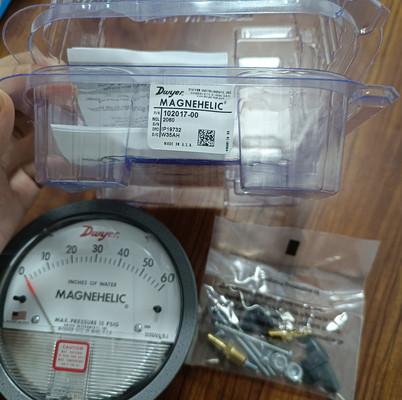

Dwyer Series 2000 Magnehelic Differential Pressure Gauge (0–60 in w.c.)

Product Introduction

The Dwyer Series 2000 Magnehelic Differential Pressure Gauge is a rugged analog instrument designed to measure pressure differences between two points in low- to high-pressure systems. With a range of 0–60 inches of water column (in w.c.), it provides precise readings within ±2% of full scale, making it ideal for industrial applications like filter monitoring, air flow measurement, and HVAC systems. The gauge features a durable housing, easy-to-read dial, and a patented design for quick pressure change response, ensuring reliable performance in critical environments.

Dwyer Series 2000 Magnehelic Differential Pressure Gauge (0–60 in w.c.)Dwyer Series 2000 Magnehelic Differential Pressure Gauge (0–60 in w.c.)

Product Features

Accurate Pressure Measurement:

±2% full-scale accuracy for reliable differential pressure readings in 0–60 in w.c. range.

Analog dial with clear markings for easy visual interpretation.

Rugged Construction:

Durable housing and high-quality components for long service life and minimal downtime.

Withstands harsh environments and mechanical stress.

Quick Response Design:

Patented mechanism ensures immediate reaction to pressure changes, eliminating assessment delays.

Easy Installation & Viewing:

1/8 NPT connections for simple system integration.

Undistorted plastic face allows clear readings from a distance.

Wide Operational Range:

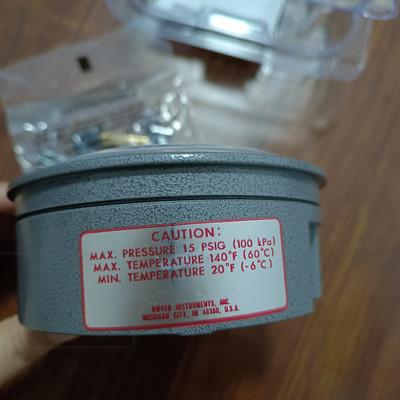

Temperature compatibility: 20 to 140°F (–6.67 to 60°C).

Suitable for air and non-corrosive gas applications.
