WSS-411W Industrial Bimetallic Thermometer
WSS-411W Industrial Bimetallic Thermometer
WSS-411W Industrial Bimetallic Thermometer
WSS-411W Industrial Bimetallic Thermometer
WSS-411W Industrial Bimetallic Thermometer
WSS-411W Industrial Bimetallic Thermometer
Specifications
Brand Name :
KACISE
Model Number :
WSS-411W
Place of Origin :
CHINA
MOQ :
1PCS
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
1000 Piece/Pieces per Week negotiable
Delivery Time :
5-8 work days
Packaging Details :
each unit has individual box and all boxes are packed in standard packages or customers requests available
Measuring Range :
-50°C to +500°C (customizable)
Accuracy Class :
±1.0%, ±1.5%, or ±2.0% (per EN 13190 or ASME B40.3)
Dial Diameter :
63 mm / 100 mm / 150 mm
Stem Length :
50 mm to 500 mm (custom lengths available)
Stem Diameter :
Ø6 mm / Ø8 mm / Ø10 mm
Material :
Stainless steel 304 or 316
Description

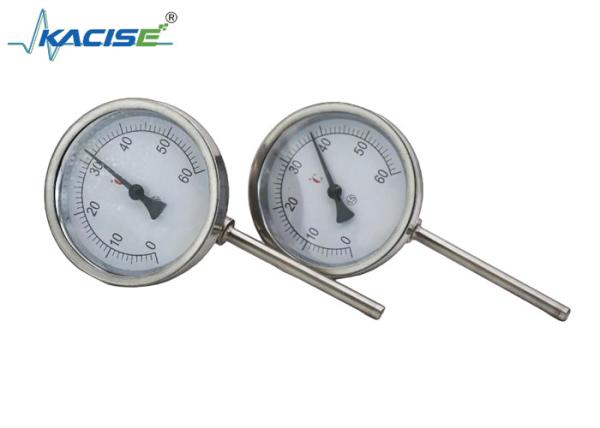

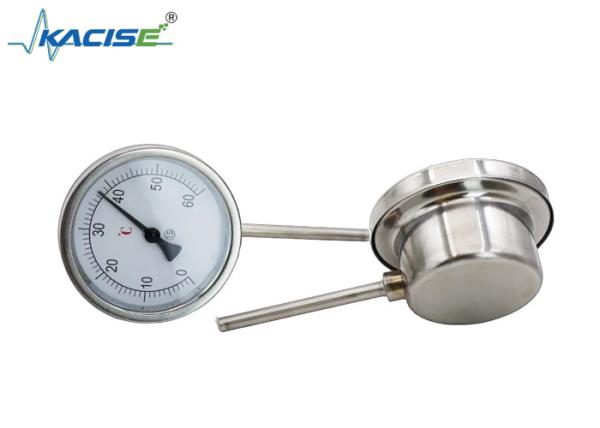

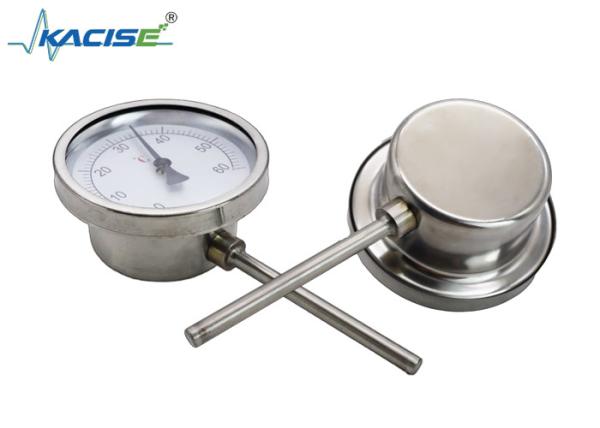

WSS-411W Industrial bimetallic thermometer

Introduction

The WSS-411W Industrial Bimetallic Thermometer is a durable, mechanical temperature-measuring solution. Its bimetallic strip, made of two metals with distinct thermal expansion rates, senses temperature changes and drives the pointer for direct readings without needing external power.

Features

  • No power supply required (mechanical type)
  • Durable and reliable for harsh environments
  • Fast response time and clear dial reading
  • Available in various dial sizes, ranges, stem lengths, and connection types
  • Optional waterproof and anti-corrosion design
  • Stainless steel construction (304/316) optional for food and sanitary use

Technical Parameters

Measuring Range -50°C to +500°C (customizable)
Accuracy Class ±1.0%, ±1.5%, or ±2.0% (per EN 13190 or ASME B40.3)
Dial Diameter 63 mm / 100 mm / 150 mm
Stem Length 50 mm to 500 mm (custom lengths available)
Stem Diameter Ø6 mm / Ø8 mm / Ø10 mm
Material Stainless steel 304 or 316
Mounting Type Back, bottom, or adjustable angle connection
Connection Threaded (1/2” NPT, G1/2", M20x1.5, etc.)
Window Material Glass or polycarbonate
Protection Grade IP55 / IP65 / IP67 (optional)
