Industrial Grade WSS-411W Bimetal Thermometer with Custom Stem Length
Industrial Grade WSS-411W Bimetal Thermometer with Custom Stem Length
Industrial Grade WSS-411W Bimetal Thermometer with Custom Stem Length
Industrial Grade WSS-411W Bimetal Thermometer with Custom Stem Length
Industrial Grade WSS-411W Bimetal Thermometer with Custom Stem Length
Industrial Grade WSS-411W Bimetal Thermometer with Custom Stem Length
Specifications
Brand Name :
KACISE
Model Number :
WSS-411W
Place of Origin :
CHINA
MOQ :
1PCS
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
1000 Piece/Pieces per Week negotiable
Delivery Time :
5-8 work days
Packaging Details :
each unit has individual box and all boxes are packed in standard packages or customers requests available
Certification :
CE
Measuring Range :
-50°C to +500°C (customizable)
Accuracy Class :
±1.0%, ±1.5%, or ±2.0% (per EN 13190 or ASME B40.3)
Dial Diameter :
63 mm / 100 mm / 150 mm
Stem Length :
50 mm to 500 mm (custom lengths available)
Stem Diameter :
Ø6 mm / Ø8 mm / Ø10 mm
Material :
Stainless steel 304 or 316
Description

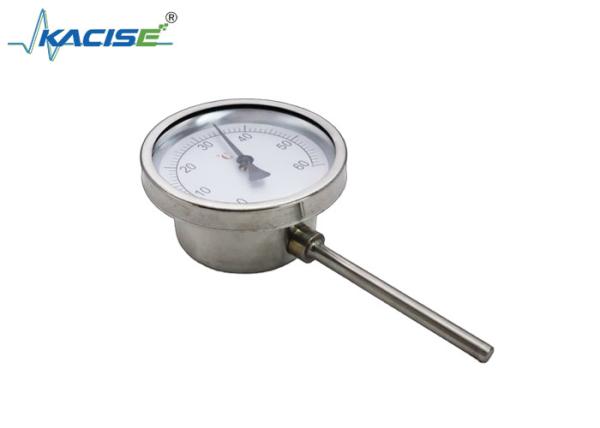

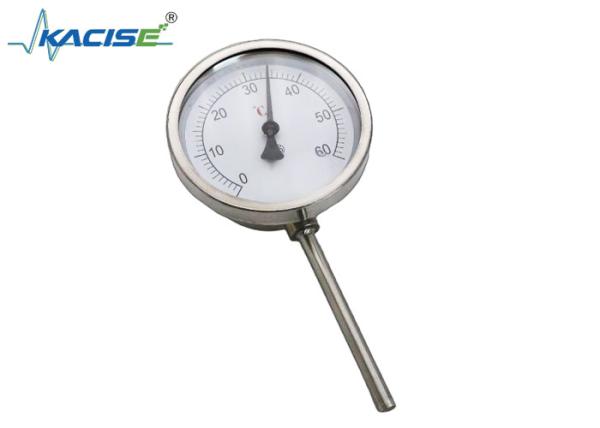

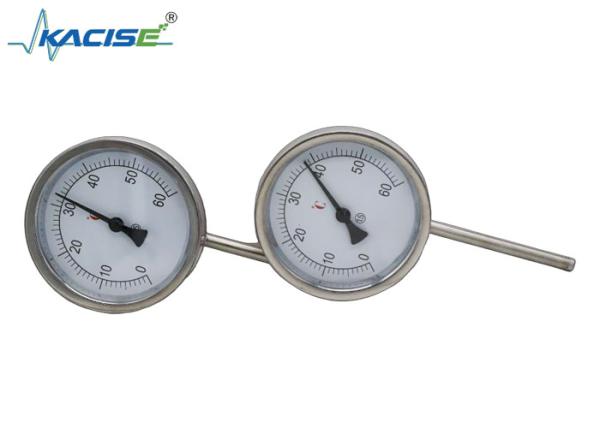

WSS-411W Bimetal Thermometer

Introduction

The Bimetal Thermometer is a mechanical temperature measuring instrument that operates based on the thermal expansion of two bonded metals with different coefficients of expansion. It is widely used in various industries such as petroleum, chemical, food, pharmaceutical, and HVAC applications for local temperature indication.

Features

  • No power supply required (mechanical type)
  • Durable and reliable for harsh environments
  • Fast response time and clear dial reading
  • Available in various dial sizes, ranges, stem lengths, and connection types
  • Optional waterproof and anti-corrosion design
  • Stainless steel construction (304/316) optional for food and sanitary use

Technical Parameters

Measuring Range -50°C to +500°C (customizable)
Accuracy Class ±1.0%, ±1.5%, or ±2.0% (per EN 13190 or ASME B40.3)
Dial Diameter 63 mm / 100 mm / 150 mm
Stem Length 50 mm to 500 mm (custom lengths available)
Stem Diameter Ø6 mm / Ø8 mm / Ø10 mm
Material Stainless steel 304 or 316
Mounting Type Back, bottom, or adjustable angle connection
Connection Threaded (1/2” NPT, G1/2", M20x1.5, etc.)
Window Material Glass or polycarbonate
Protection Grade IP55 / IP65 / IP67 (optional)
