Specifications
Brand Name :
KACISE
Model Number :
KMC-YE-100
MOQ :
1PCS
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
1000 Piece/Pieces per Week negotiable
Delivery Time :
5-8 work days
Packaging Details :
each unit has individual box and all boxes are packed in standard packages or customers requests available
Certification :
CE
Product Name :
Bellows Pressure Gauge
The Installation Interface :
M20*1.5
Model :
KMC-YE-100
Protection Grade :
IP65
Warranty :
1 Year
Measuring Range :
-1KPa-205KPa
Description

stainless steel mc ip65 KMC-YE-100 pressure gauge

Product Introduction

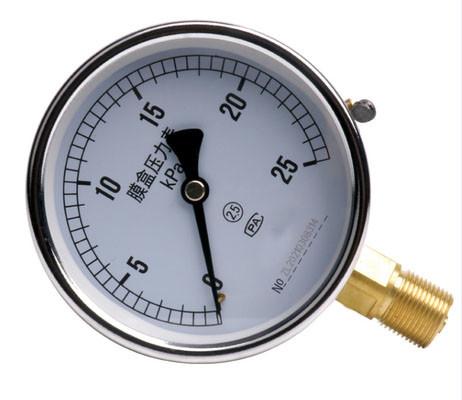

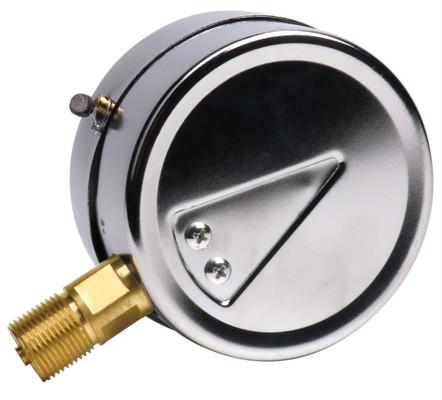

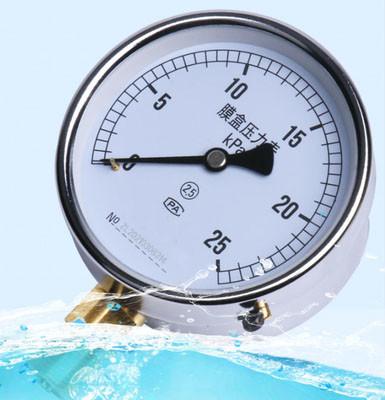

The KMC-YE-100 stainless steel bellows pressure gauge utilizes a bellows element as a sensitive sensor for measuring micro pressure and negative pressure. Designed for applications requiring high corrosion resistance, it is ideal for measuring gaseous and liquid media in boiler ventilation systems, gas pipelines, combustion devices, and similar equipment. The gauge is constructed with stainless steel for the pressure guiding system and housing, ensuring durability in corrosive environments. It measures pressure ranges from -1kPa to 205kPa with an accuracy grade of 2.5, making it suitable for non-explosive, non-corrosive (to copper alloys) media.

Stainless Steel KMC-YE-100 Pressure Gauge With IP65 Protection Grade And Measuring Range -1KPa-205KPa

Key Features

  • Wide Measurement Range: -1kPa to 205kPa, suitable for micro pressure, negative pressure, and low-pressure applications.
  • High Corrosion Resistance: Stainless steel construction (pressure system and housing) for harsh environments.
  • IP65 Protection Grade: Dust-tight and protected against water jets from any direction, suitable for outdoor or dusty installations.
  • Bellows Sensing Element: Ensures sensitive response to tiny pressure changes with minimal hysteresis.
  • Easy On-Site Indication: Direct reading on a 100mm dial for immediate pressure monitoring.
  • Versatile Media Compatibility: Suitable for gases and liquids that are non-corrosive to copper alloys.

Technical Specifications

Measuring range -1KPa-205KPa
Medium temperature -100
Protection grade IP65
Precision grade 2.5
The dial diameter 100mm
The installation interface M20*1.5
Instrument material Copper alloy, carbon steel nickel plating, copper alloy joints
Model KMC-YE-100
