KMC-YXC150 Stainless Steel Shockproof Electric Contact Pressure Gauge
KMC-YXC150 Stainless Steel Shockproof Electric Contact Pressure Gauge
KMC-YXC150 Stainless Steel Shockproof Electric Contact Pressure Gauge
KMC-YXC150 Stainless Steel Shockproof Electric Contact Pressure Gauge
KMC-YXC150 Stainless Steel Shockproof Electric Contact Pressure Gauge
KMC-YXC150 Stainless Steel Shockproof Electric Contact Pressure Gauge
KMC-YXC150 Stainless Steel Shockproof Electric Contact Pressure Gauge
KMC-YXC150 Stainless Steel Shockproof Electric Contact Pressure Gauge
Specifications
Brand Name :
KACISE
Model Number :
KMC-YXC150
Certification :
CE
MOQ :
1PCS
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
1000 Piece/Pieces per Week negotiable
Delivery Time :
5-8 work days
Packaging Details :
each unit has individual box and all boxes are packed in standard packages or customers requests available
Product Name :
Electro Connecting Pressure Gauge
Dial Diameter :
145mm
Display Mode :
Pointer To The Calibration
Accuracy :
1.6
Measuring Range :
0~60MPA
Power :
30VA
Description

KMC-YXC150 Stainless Steel Shockproof Electric Contact Pressure Gauge

Product Introduction

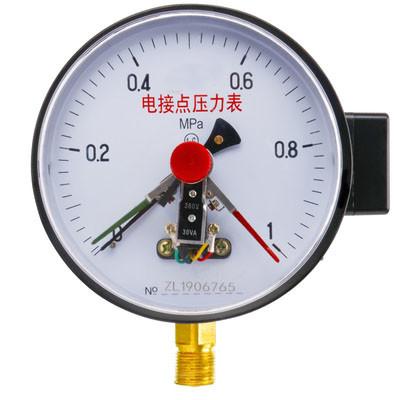

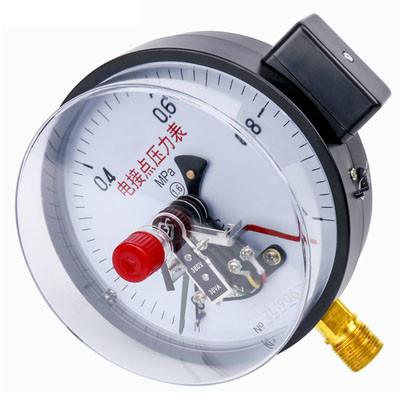

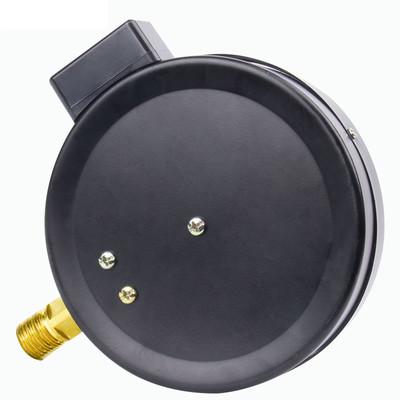

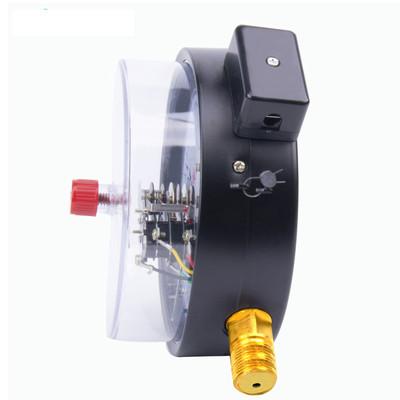

The KMC-YXC150 Stainless Steel Shockproof Electric Contact Pressure Gauge is a robust industrial instrument designed for precise pressure measurement in harsh environments. With a range of 0–60MPa, it is suitable for non-corrosive liquids, gases, and other media that pose no explosion hazard to copper alloys. The gauge features a stainless-steel housing and shockproof design, ensuring reliable performance in vibrating or impact-prone conditions. Its electric contact mechanism enables automatic switching for pressure-based control or alarm systems, making it ideal for industrial process monitoring and safety applications.

KMC-YXC150 Stainless Steel Shockproof Electric Contact Pressure Gauge

Key Features

  • Wide Measurement Range: 0–60MPa capacity for high-pressure industrial systems, including hydraulic, oil, and gas applications.
  • Shockproof & Corrosion-Resistant: Stainless-steel construction with electroplated finish resists corrosion and withstands mechanical shocks.
  • Electric Contact Functionality: Integrates electrical contacts to trigger alarms or control circuits when pressure reaches preset limits (220V/380V operating voltage, 30VA power).
  • Versatile Design: Available in anti-vibration, corrosion-resistant, and combined anti-vibration/corrosion-resistant models, with over 10 variants featuring isolation devices.
  • Clear Visual Indication: 145mm dial diameter for easy on-site pressure reading, with customizable multi-unit display panels (e.g., PSI, kPa, MPa).
  • Harsh Environment Suitability: Operates in temperatures from -40°C to 70°C, suitable for extreme industrial conditions.
  • Technical Specifications

Technical Specifications

Product name electro connecting pressure gauge
Product model KMC-YXC150
dial diameter 145MM
Sub way thread M20*1.5
operating temperature -40~70℃
measuring range 0~60MPA
working voltage 220V 380V general
Power 30VA
