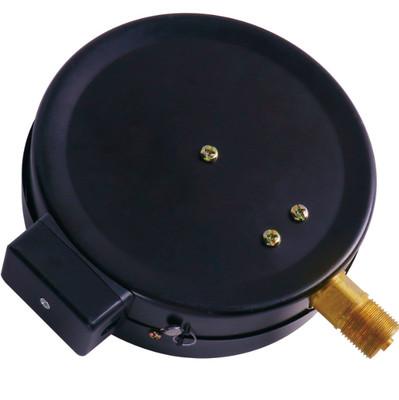

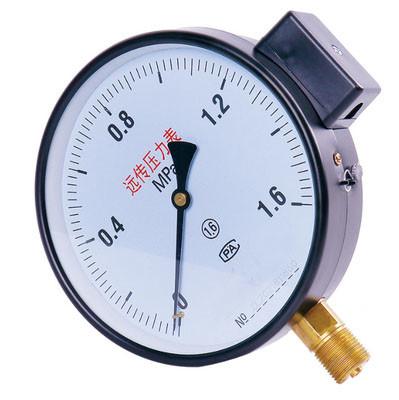

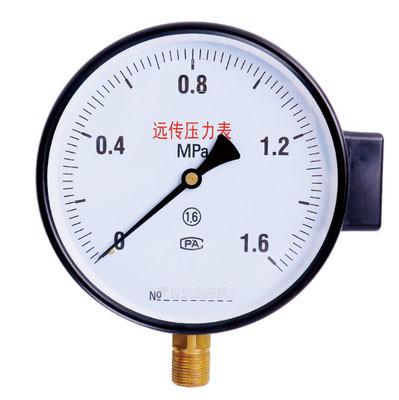

KMC-YTZ150 Resistance Far Transmission Pressure Gauge
KMC-YTZ150 Resistance Far Transmission Pressure Gauge
KMC-YTZ150 Resistance Far Transmission Pressure Gauge
KMC-YTZ150 Resistance Far Transmission Pressure Gauge
KMC-YTZ150 Resistance Far Transmission Pressure Gauge
KMC-YTZ150 Resistance Far Transmission Pressure Gauge
KMC-YTZ150 Resistance Far Transmission Pressure Gauge
KMC-YTZ150 Resistance Far Transmission Pressure Gauge
Specifications
Brand Name :
KACISE
Model Number :
KMC-KMC-YTZ150
Certification :
CE
MOQ :
1PCS
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
1000 Piece/Pieces per Week negotiable
Delivery Time :
5-8 work days
Packaging Details :
each unit has individual box and all boxes are packed in standard packages or customers requests available
Range :
0-60MPa
Accuracy Class :
1.6
Working Temperature :
-40-60 Degree
Connection :
M20*1.5

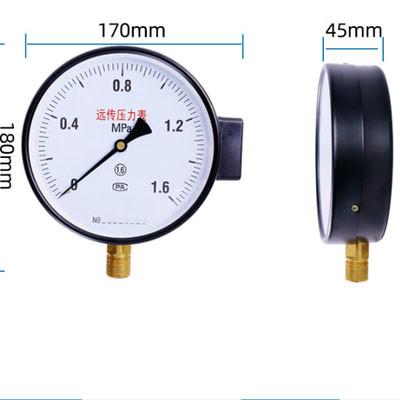

Size :
170*180*75
Highlight :
KMC-YTZ150 Differential Pressure Gauge
Description

KMC-YTZ150 Resistance Far Transmission Pressure Gauge

Product Introduction

The KMC-YTZ150 Resistance Far Transmission Pressure Gauge is a high-precision instrument designed for remote pressure monitoring in industrial systems. Combining a spring tube pressure gauge with a potentiometer-type transmitter, this gauge converts mechanical pressure changes into electrical resistance signals for long-distance transmission. With a measurement range of 0-60MPa and an accuracy class of 1.6, it is ideal for measuring non-corrosive liquid, steam, and gas media in applications requiring both local indication and remote monitoring.

KMC-YTZ150 Resistance Far Transmission Pressure Gauge

Key Features

  • Dual-Function Design: Integrates local pressure indication via a pointer with remote transmission of resistance signals for centralized control.
  • Resistance Transmission Technology: Potentiometer-type transmitter converts pressure into electrical resistance, enabling reliable far-field data transmission.
  • Wide Measurement Range: 0-60MPa capacity for versatile use in high-pressure industrial systems.
  • Sturdy Construction: Suitable for non-corrosive media (compatible with steel and copper alloys).
  • Temperature Resilience: Operates in harsh environments from -40°C to 60°C.
  • Standardized Connection: M20×1.5 thread for easy installation in existing systems.

Technical Specifications

Model KMC-YTZ150
Pressure range 0-60MPA
Connection M20*1.5
Working temperature -100
