Specifications
Brand Name :
dwyer
Model Number :
DPG-006
MOQ :
1PCS
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
1000 Piece/Pieces per Week negotiable
Delivery Time :
5-8 work days
Packaging Details :
each unit has individual box and all boxes are packed in standard packages or customers requests available
Certification :
CE
Warranty :
1 Year
Wetted Materials :
Type 316L SS.
Accuracy :
DPG-000: 0.5% FS; DPG-100: ±0.25% FS; ±1 Least Significant Digit @ 70°F (21°C)
Enclosure Rating :
Designed To Meet NEMA 4/4X (IP66
Pressure Limit :
2x Pressure Range For Models ≤1000 Psi; 5000 Psi For 3000 Psi Range; 7500 Psi For 5000 Psi Range
Power Requirements :
(2) AAA Alkaline Batteries, Included, User Replaceable
Description

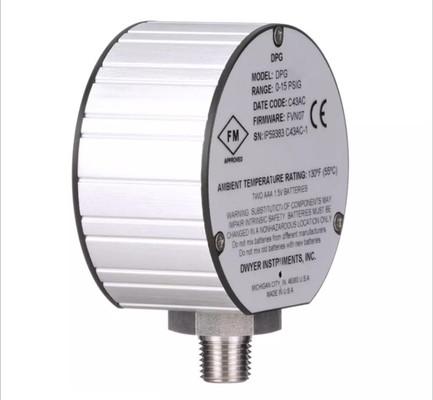

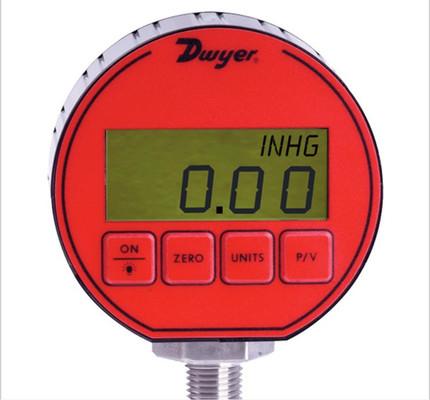

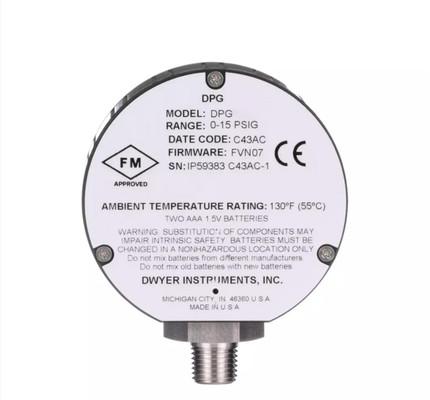

Dwyer Series DPG Digital Pressure Gage

Product Introduction

The Series DPG Digital Pressure Gage from Dwyer replaces outdated analog gauges with advanced digital technology, offering ±0.25% to ±0.5% full-scale (FS) accuracy and a NEMA 4X (IP66) aluminum housing for rugged durability. Its 4-digit LCD eliminates parallax errors, while battery-powered operation with auto-shutoff ensures up to 2000 hours of use. The intuitive 4-button keypad enables easy access to features like backlight, peak/valley tracking, tare/auto zero, and unit conversion (psi, bar, kPa, in. Hg, etc.).

Dwyer Series DPG Digital Pressure Gage Enclosure Rating Designed To Meet NEMA 4/4X IP66 Pressure Limit 2x Pressure RangeDwyer Series DPG Digital Pressure Gage Enclosure Rating Designed To Meet NEMA 4/4X IP66 Pressure Limit 2x Pressure Range

Product Features

Precision Measurement:

±0.25% FS accuracy (DPG-100 series) for critical industrial applications.

12 selectable engineering units (psi, kg/cm², bar, in. Hg, etc.) for global compatibility.

Rugged Design:

IP66 rating protects against dust and high-pressure water jets.

Anodized aluminum housing resists corrosion and mechanical impact.

User-Friendly Operation:

Tare function zeros out background pressure for absolute measurements.

Peak/valley tracking records maximum/minimum pressure spikes.

Auto-shutoff (60 minutes) conserves battery life; disable option available.

Safety & Compliance:

FM approval (DPG-100 series) for intrinsically safe use in Class I, Division 1, Groups A–D hazardous areas.

Technical Specifications

Model Pressure Range Accuracy Approvals
DPG-000 -14.70–0 psi (vacuum) ±0.5% FS CE
DPG-002 0–15 psi ±0.25% FS CE, FM
DPG-005 0–100 psi ±0.25% FS CE, FM
DPG-010 0–3000 psi ±0.25% FS CE, FM
DPG-011 0–5000 psi ±0.25% FS -
DPG-102 0–15 psi (CE/FM approved) ±0.25% FS CE, FM
