Dwyer 477AV-000 Digital Pressure Gauge 80mm Differential Pressure Manometer
Dwyer 477AV-000 Digital Pressure Gauge 80mm Differential Pressure Manometer
Dwyer 477AV-000 Digital Pressure Gauge 80mm Differential Pressure Manometer
Dwyer 477AV-000 Digital Pressure Gauge 80mm Differential Pressure Manometer
Dwyer 477AV-000 Digital Pressure Gauge 80mm Differential Pressure Manometer
Dwyer 477AV-000 Digital Pressure Gauge 80mm Differential Pressure Manometer
Dwyer 477AV-000 Digital Pressure Gauge 80mm Differential Pressure Manometer
Dwyer 477AV-000 Digital Pressure Gauge 80mm Differential Pressure Manometer
Specifications
Brand Name :
Dwyer
Model Number :
477AV-000
MOQ :
1PCS
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
1000 Piece/Pieces per Week negotiable
Delivery Time :
5-8 work days
Packaging Details :
each unit has individual box and all boxes are packed in standard packages or customers requests available
Certification :
CE
Material :
Consult Factory.
Pressure Range :
See Chart
Accuracy :
±0.5% FS, 60 To 78°F (15.6 To 25.6°C)
Gauge :
Differential Pressure Gauges
Product Name :
Dwyer 477AV-000 Digital Manometer
Size :
80MM
Description
Dwyer 477AV-000 Digital Pressure Gauge 80mm Differential Pressure Manometer
Product Attributes
Attribute Value
Accuracy ±0.5% FS, 60 To 78°F (15.6 To 25.6°C)
Material Consult Factory.
Pressure Range See Chart
Size 80MM
Product Name Dwyer 477AV-000 Digital Manometer
Gauge Differential Pressure Gauges
Product Description

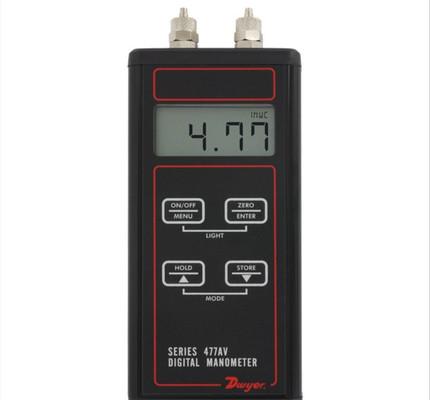

The Dwyer Series 477AV Handheld Digital Manometer is a portable precision instrument designed for on-site measurement of pressure, air velocity, and flow in HVAC, industrial, and environmental applications. With built-in calculation functions and field-calibration capabilities, it eliminates manual errors and streamlines testing processes.

Dwyer 477AV-000 Digital Pressure Gauge 80mm Differential Pressure Manometer
Product Features
  • Triple Measurement Modes:
    Pressure: in. w.c., psi, kPa, mbar, etc.
    Velocity: fpm, m/s, mph, knots.
    Flow: cfm, m³/h, m³/s.
  • High Accuracy:
    ±0.5% FS at 15.6-25.6°C (60-78°F); ±1.5% FS in extended temperatures.
  • Field Calibration:
    Adjustable zero/span values and damping function for fluctuating readings.
  • Portable Design:
    9V battery operation (user-replaceable), 10.2 oz (289 g) weight for handheld use.
  • NIST Calibration:
    Optional traceable certification for critical applications.
Technical Specifications
Parameter Detail
Model 477AV-000 (0-1.00 in. w.c. range)
Pressure Range 0-1.00 in. w.c. (0-250 Pa)
Media Air and compatible gases
Display 0.42" (10.6 mm) 4-digit LCD with backlight
Temperature Range Operating: -17.8-60°C (0-140°F); Compensated: 0-40°C (32-104°F)
Process Connections Two barbed fittings for 1/8" or 3/16" ID tubing (compression fittings for high-pressure models)
Units of Measurement 15+ pressure units, 6 velocity units, 3 flow units
Battery Life Typical life: 100 hours continuous use
