KMC-DP-200 Red Oil Micro Pressure Gauge for Civil Air Defense Fire Protection
KMC-DP-200 Red Oil Micro Pressure Gauge for Civil Air Defense Fire Protection
KMC-DP-200 Red Oil Micro Pressure Gauge for Civil Air Defense Fire Protection
KMC-DP-200 Red Oil Micro Pressure Gauge for Civil Air Defense Fire Protection
KMC-DP-200 Red Oil Micro Pressure Gauge for Civil Air Defense Fire Protection
KMC-DP-200 Red Oil Micro Pressure Gauge for Civil Air Defense Fire Protection
KMC-DP-200 Red Oil Micro Pressure Gauge for Civil Air Defense Fire Protection
KMC-DP-200 Red Oil Micro Pressure Gauge for Civil Air Defense Fire Protection
Specifications
Brand Name :
KMC
Model Number :
KMC-DP-200
MOQ :
1PCS
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
1000 Piece/Pieces per Week negotiable
Delivery Time :
5-8 work days
Packaging Details :
each unit has individual box and all boxes are packed in standard packages or customers requests available
Certification :
CE
Model :
KMC-DP-200
Range Of Application :
Measuring Gas Pressure
Product Name :
Red Oil Micro Pressure Gauge Manometer Pressure Sensor
Working Temperature :
-10℃ ~ +60℃
Size :
196mm*84mm
Description

KMC-DP-200 Red Oil Micro Pressure Gauge for Civil Air Defense Fire Protection

Product Introduction

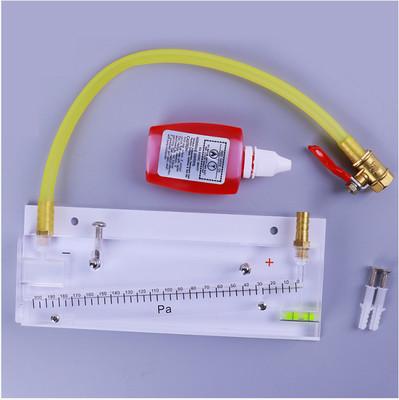

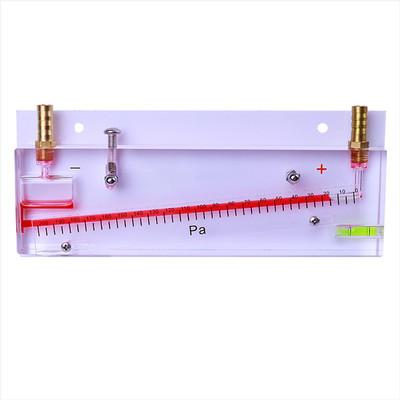

The KMC-DP-200 Red Oil Micro Pressure Gauge is a specialized inclined-tube manometer designed for precise measurement of positive, negative, and differential pressures in civil air defense projects, clean rooms, and fire protection systems. Engineered for micro-pressure applications, this gauge uses red oil as the working fluid to provide clear, reliable readings in critical environments such as pharmaceutical factories, laboratories, and HVAC systems.

KMC-DP-200 Red Oil Micro Pressure Gauge for Civil Air Defense Fire Protection

Product Features

Application Scenarios:

Civil air defense engineering (maintaining positive pressure to prevent contaminated air ingress)

Clean room differential pressure monitoring (pharmaceutical, electronics manufacturing)

HVAC system filter pressure drop detection

Fire protection systems requiring airtightness measurement

Design Features:

Inclined tube design amplifies small pressure changes for accurate reading

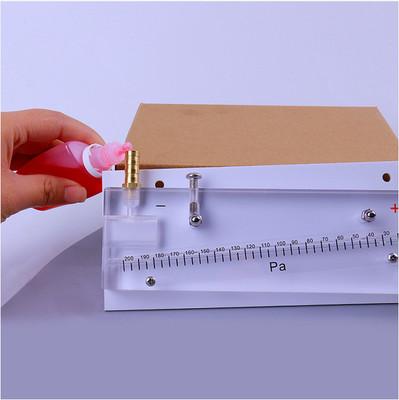

Red oil fluid for high visibility and minimal evaporation

Corrosion-resistant housing suitable for long-term use in clean environments

Technical Specifications

Parameter Detail
Model DP-200
Pressure Range 0–200 Pa
Accuracy [Specify if available, e.g., ±3% FS]
Working Fluid Red oil (volatile resistance, high visibility)
Working Temperature -10°C to +60°C (-14°F to 140°F)
Dimensions 196mm × 84mm (height × width)

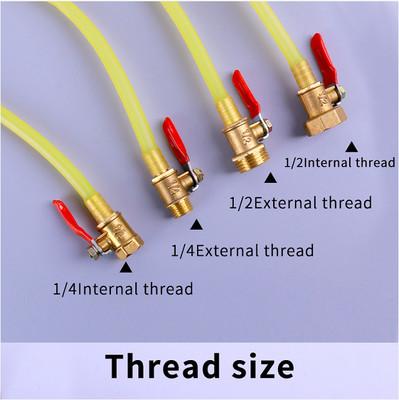

Process Connections High (H) and Low (L) pressure ports for tubing attachment
Mounting Wall-mounted, vertical or parallel installation
